Ferrari F8 Spider — [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES (diagram 0030)
Exploded view of the [engine] - b.25 - engine cooling system pipes on the Ferrari F8 Spider, with 21 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

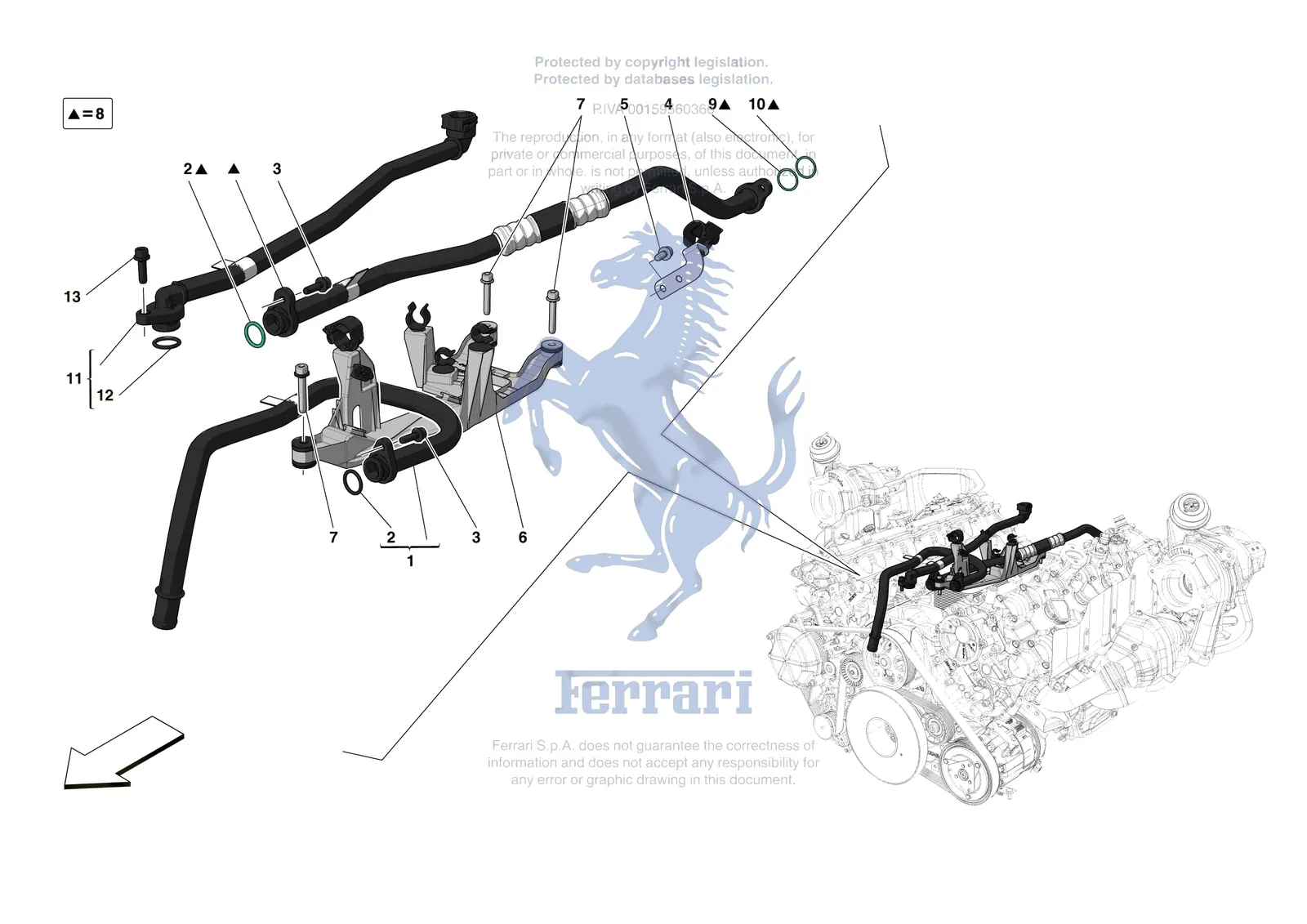

![Ferrari F8 Spider [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0030.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 318194 | Ferrari Header Tank And Disconnecter Pipe Bracket Complete - 318194 | Superseded | Order 312851 instead | |
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 310680 | Ferrari Single Oil Heat Exchanger Return Pipe Mounting Bracket - 310680 | $39.14 | Special order, ships in 7-14 days | |
| 1 | 322388 | Ferrari Piping Complete - 322388 | $204.34 | Special order, ships in 7-14 days |
| 2 | 287632 | Ferrari O-Ring - 287632 | $6.31 | Available, ships in 3-6 days |
| 3 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 4 | 830816 | Ferrari Single Oil Heat Exchanger Return Pipe Mounting Bracket - 830816 | $31.99 | Special order, ships in 7-14 days |
| 5 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 6 | 312851 | Ferrari Header Tank And Disconnecter Pipe Bracket Complete - 312851 | $169.87 | Special order, ships in 7-14 days |
| 7 | 231622 | Ferrari Screw M6 x 35 - 231622 | $0.65 | Available, ships in 3-6 days |
| 8 | 318109 | Ferrari Water Return Pipe From Single Oil Heat Exchanger - 318109 | $418.56 | Special order, ships in 7-14 days |
| 9 | 318989 | Ferrari O-Ring - 318989 | $10.25 | Special order, ships in 7-14 days |
| 10 | 318329 | Ferrari O-Ring - 318329 | $74.29 | Special order, ships in 7-14 days |
| 11 | 317021 | Ferrari Header Tank Pipe - 317021 | $209.26 | Special order, ships in 7-14 days |
| 12 | 95860063 | Ferrari O-Ring viton - 95860063 | $2.70 | Available, ships in 3-6 days |
| 12 | 130295 | Ferrari Oil Ring - 130295 | Superseded | Order 95860063 instead |
| 13 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
