Ferrari F8 Spider — [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES (diagram 0049)

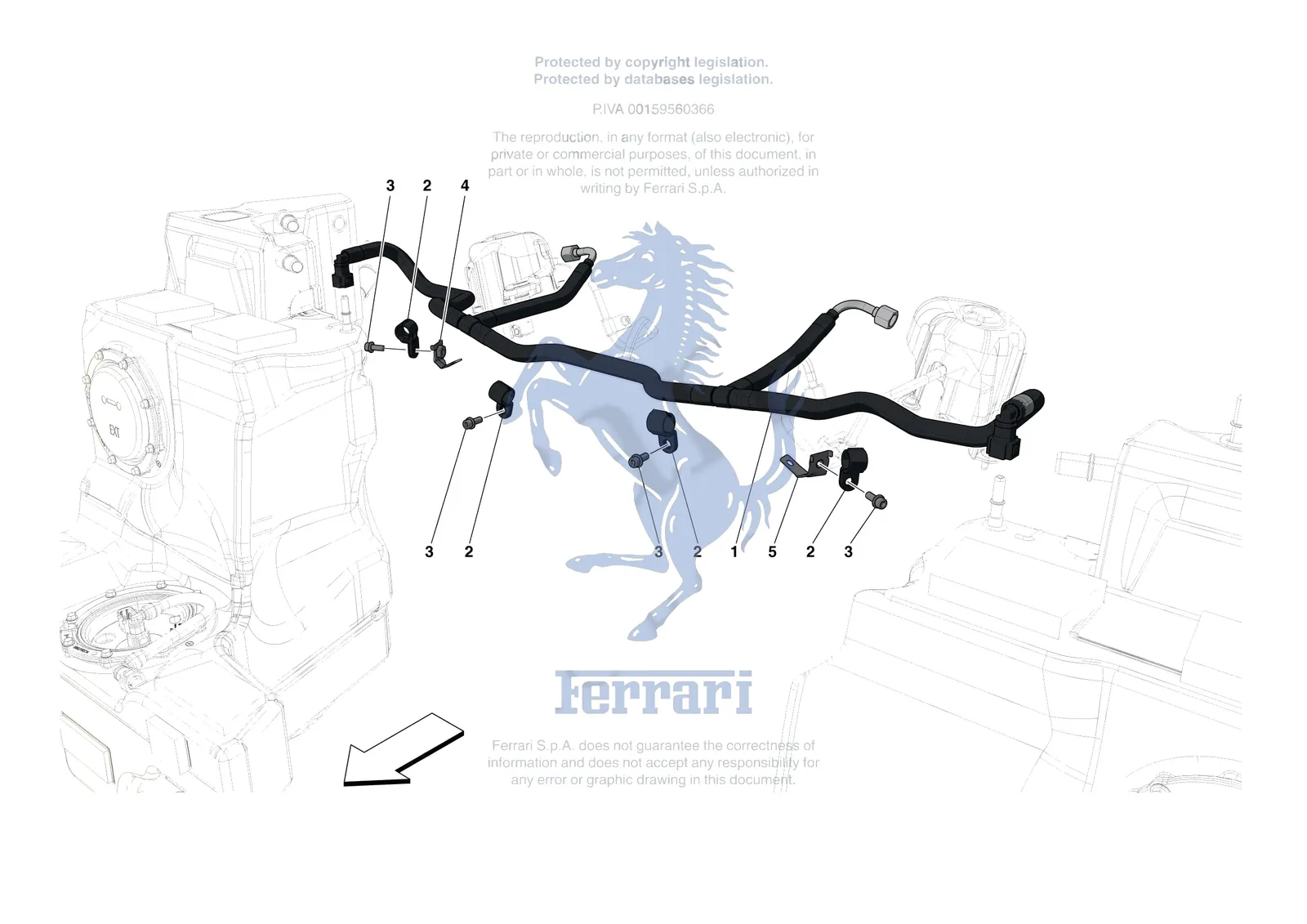

Exploded view of the [mechanical system] - d.2 - engine fuel delivery pipes on the Ferrari F8 Spider, with 9 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0049.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 316734 | Ferrari Fuel Delivery Pipe - 316734 | Superseded | Order 961203 instead | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 1 | 961203 | Ferrari Tubo Mandata Benzina Tipo Ad - 961203 | $837.14 | Special order, ships in 7-14 days |
| 2 | 244221 | Ferrari Clip - 244221 | $8.28 | Available, ships in 3-6 days |
| 3 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 4 | 316737 | Ferrari RH Fuel Pipe Mounting Complete - 316737 | $22.39 | Special order, ships in 7-14 days |
| 5 | 316735 | Ferrari LH Fuel Pipe Mounting Complete - 316735 | $22.39 | Special order, ships in 7-14 days |
