Ferrari F8 Spider — [MECHANICAL SYSTEM] - D.04.02 - INTERCOOLER (diagram 0052)

Exploded view of the [mechanical system] - d.04.02 - intercooler on the Ferrari F8 Spider, with 75 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

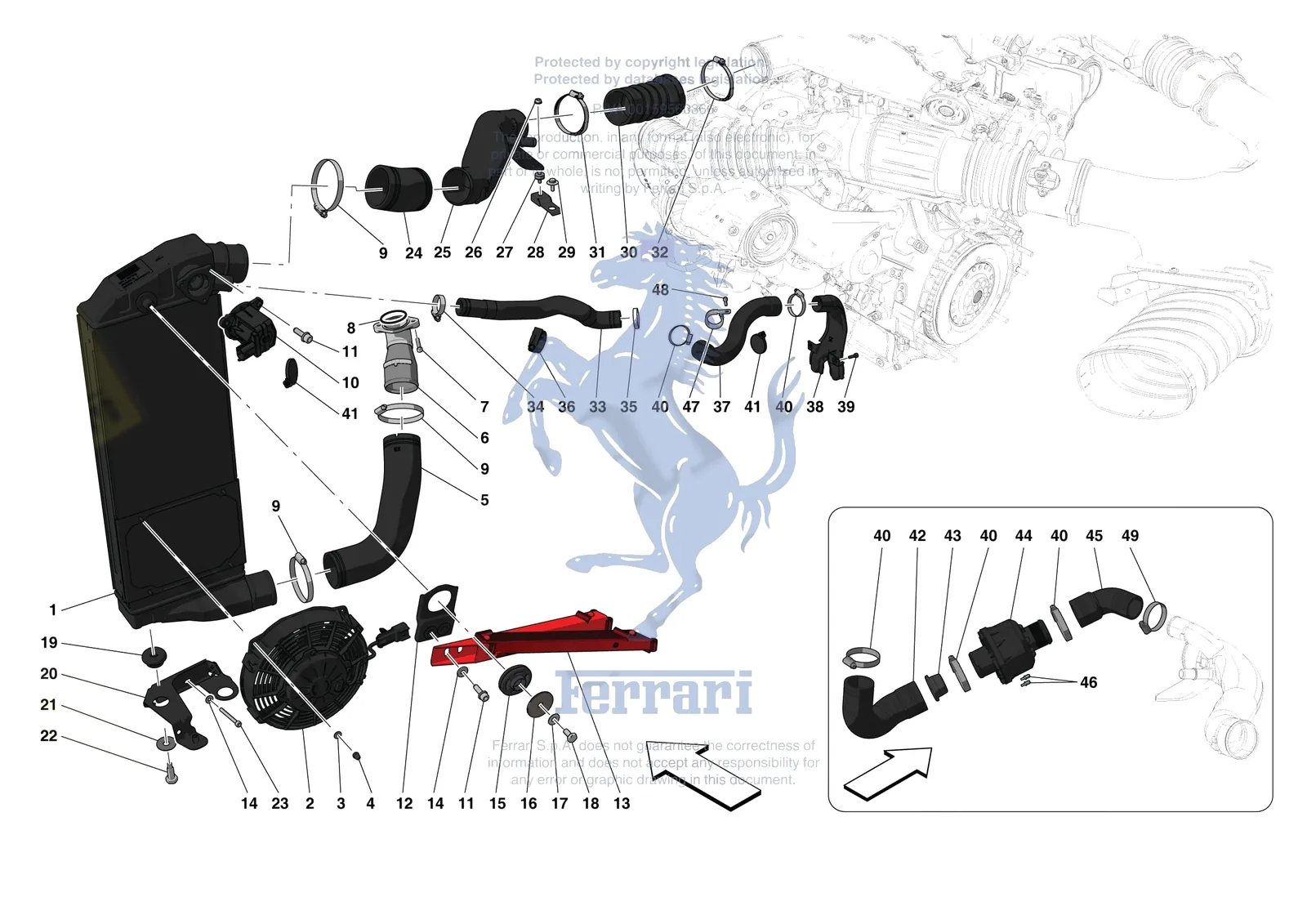

Ferrari F8 Spider [MECHANICAL SYSTEM] - D.04.02 - INTERCOOLER exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14304821Ferrari Allen Screw 6x55 - 14304821SupersededOrder 14304824 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
10902411Ferrari Bolt - 10902411SupersededOrder 10902024 instead
297575Ferrari Collar - 297575SupersededOrder 311609 instead
318050Ferrari LH Coil Cooling Pipe - 318050SupersededOrder 325077 instead
14054042Ferrari Nut - 14054042SupersededOrder 168698 instead
14054048Ferrari Nut - 14054048SupersededOrder 168698 instead
318049Ferrari RH Coil Cooling Pipe - 318049SupersededOrder 325076 instead
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
10902011Ferrari Screw 6x12 - 10902011$13.69Available, ships in 3-6 days
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
14432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
1748562Ferrari LH Intercooler - 748562$2,886.68Special order, ships in 7-14 days
1748559Ferrari RH Intercooler - 748559$2,886.68Special order, ships in 7-14 days
2319950Ferrari Electric Fan For Intercooler - 319950$664.78Special order, ships in 7-14 days
314446624Ferrari Washer - 14446624$0.13Available, ships in 3-6 days
4168698Ferrari Nut M5 x 11 - 168698$3.68Available, ships in 3-6 days
5762211Ferrari LH Hose Connection From Turb - 762211$1,378.85Special order, ships in 7-14 days
5816925Ferrari LH Hose Connection From Turb - 816925$1,378.85Special order, ships in 7-14 days
5762210Ferrari RH Hose Connection From Turb - 762210$1,378.85Special order, ships in 7-14 days
5816924Ferrari RH Hose Connection From Turb - 816924$1,378.85Special order, ships in 7-14 days
6317449Ferrari LH Hose Connector With Flange - 317449$369.30Special order, ships in 7-14 days
6317448Ferrari RH Hose Connector With Flange - 317448$369.30Special order, ships in 7-14 days
7231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
8132829Ferrari O-Ring - 132829$1.93Available, ships in 3-6 days
9296785Ferrari Hose Clamp 60 to 80mm - 296785$24.05Available, ships in 3-6 days
10315495Ferrari Dump-Valve - 315495$295.03Available, ships in 3-6 days
11231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
12781216Ferrari Upper Intercooler Fastener Bracket - 781216$39.37Special order, ships in 7-14 days
13772080Ferrari Upper LH Trellis - 772080$233.89Special order, ships in 7-14 days
13772069Ferrari Upper RH Trellis - 772069$233.89Special order, ships in 7-14 days
1412646624Ferrari Washer 6.15-15x1.5 - 12646624$0.40Available, ships in 3-6 days
15290938Ferrari Intercooler Fastener Rubber Bush - 290938$16.96Special order, ships in 7-14 days
1666121400Ferrari Spacer - 66121400$20.34Available, ships in 3-6 days
1712620474Ferrari Wavy Washer - 12620474$0.12Available, ships in 3-6 days
1810902024Ferrari Screw M6 x 12 - 10902024$0.12Available, ships in 3-6 days
19290935Ferrari Radiator Mounting Bush - 290935$12.67Available, ships in 3-6 days
20794444Ferrari RH Lower Fastener Bracket Fo - 794444$96.01Special order, ships in 7-14 days
20794445Ferrari RH Lower Fastener Bracket Fo - 794445$91.08Special order, ships in 7-14 days
2113578801Ferrari Washer - 13578801$0.63Special order, ships in 7-14 days
22316040Ferrari Screw - 316040$10.04Special order, ships in 7-14 days
2314304824Ferrari Allen Screw 6x55 - 14304824$0.50Available, ships in 3-6 days
24337903Ferrari Hose Union - 337903$142.79Special order, ships in 7-14 days
25814108Ferrari LH Pipe From Intercooler To Throttle Body - 814108$1,181.86Special order, ships in 7-14 days
25814107Ferrari RH Pipe From Intercooler To Throttle Body - 814107$1,206.48Special order, ships in 7-14 days
2614040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
27225408Ferrari Cylindrical Bushing - 225408$12.99Special order, ships in 7-14 days
28775075Ferrari High Pressure Pipe Adjuster - 775075SupersededOrder 897058 instead
28897058Ferrari High Pressure Pipe Adjuster - 897058$34.44Special order, ships in 7-14 days
2981290900Ferrari Screw With Double Washer - 81290900$1.42In stock
30318185Ferrari Connector Hose On Throttle Body - 318185$418.56Special order, ships in 7-14 days
31311609Ferrari Collar - 311609$6.10Special order, ships in 7-14 days
32908630Ferrari Collar - 908630$10.93Special order, ships in 7-14 days
33337911Ferrari Rubber Pipe For LH Dump Valvee - 337911$147.72Special order, ships in 7-14 days
33337910Ferrari Rubber Pipe For RH Dump Valve - 337910$83.68Special order, ships in 7-14 days
34178053Ferrari Clip - 178053$2.64In stock
34296779Ferrari Hose Clamp 20 to 32mm - 296779SupersededOrder 178053 instead
35224271Ferrari Clip D.29.9-3 - 224271$3.03Available, ships in 3-6 days
36310150Ferrari Clip - 310150$3.03Special order, ships in 7-14 days
37324947Ferrari Coiled Pipe D=34 L=445 - 324947$467.80Special order, ships in 7-14 days
38325077Ferrari LH Coil Cooling Pipe - 325077$98.46Special order, ships in 7-14 days
38325076Ferrari RH Coil Cooling Pipe - 325076$98.46Special order, ships in 7-14 days
39231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
40296782Ferrari Hose Clamp 32-50mm - 296782$17.67Available, ships in 3-6 days
41217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
42814120Ferrari Manicotto Da Vasca A Risuona - 814120$100.93Special order, ships in 7-14 days
43741580Ferrari Reducer for Resonator - 741580$10.83Special order, ships in 7-14 days
44310096Ferrari Sound Generator - 310096$417.97Special order, ships in 7-14 days
45814124Ferrari Tubo Da Condotto Asp A Risuo - 814124$88.61Special order, ships in 7-14 days
46314100Ferrari Rivet - 314100$0.96Special order, ships in 7-14 days
4710448890Ferrari Bracket With Sheath - 10448890$4.16Available, ships in 3-6 days
48231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
49296781Ferrari Hose Clamp - 296781$5.59In stock

All F8 Spider diagrams
