Ferrari F8 Spider — [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM (diagram 0062)

Exploded view of the [mechanical system] - d.13 - evaporative emissions control system on the Ferrari F8 Spider, with 84 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

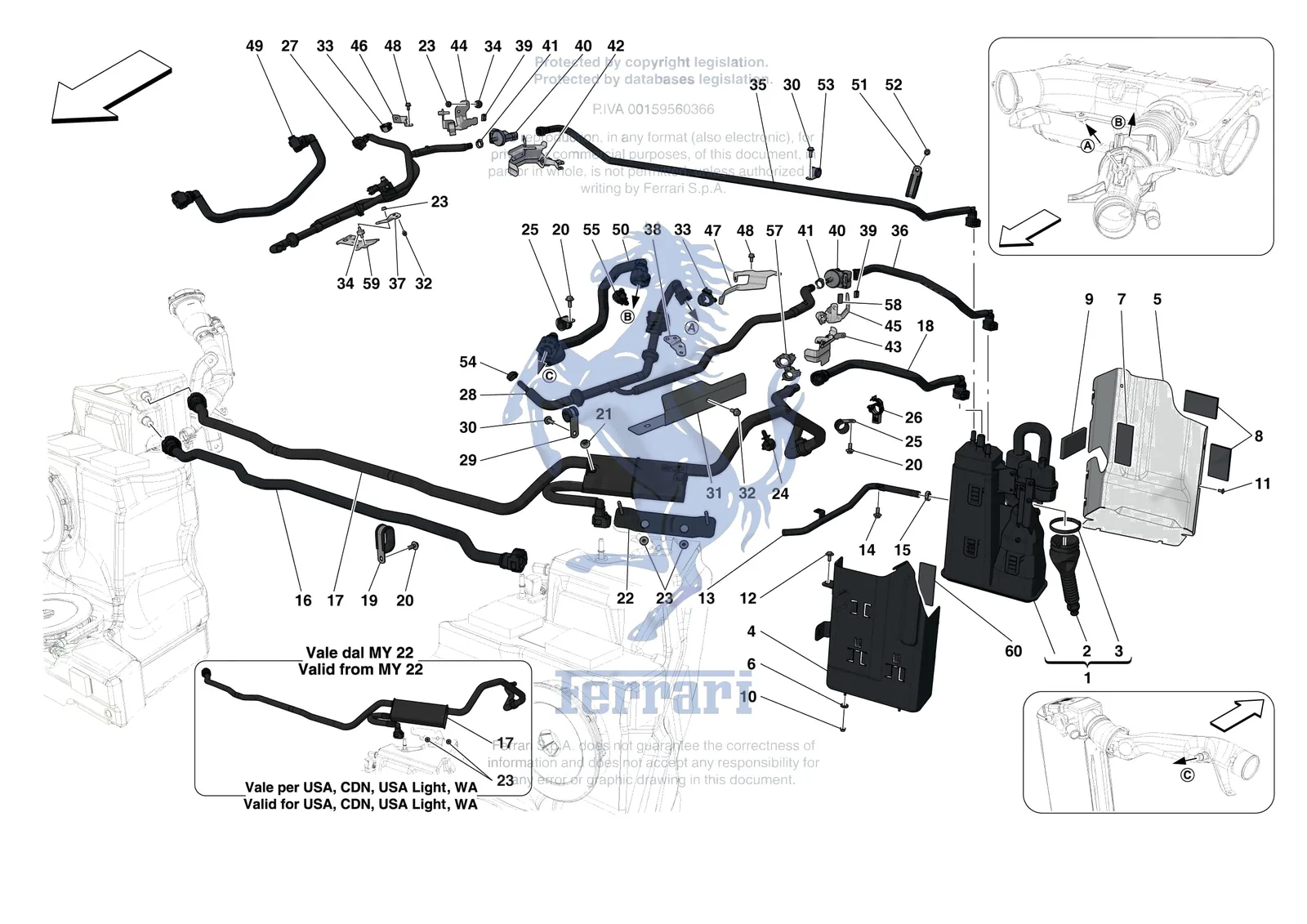

Ferrari F8 Spider [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
310836Ferrari Bracket - 310836SupersededOrder 330863 instead
311280Ferrari Clip - 311280SupersededOrder 248454 instead
10721370Ferrari Collar - 10721370$10.93Special order, ships in 7-14 days
291949Ferrari Collar - 291949SupersededOrder 248454 instead
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
315903Ferrari Tank Air Bubble Connector Pipe - 315903$244.76Special order, ships in 7-14 days
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
1811109Ferrari Compl. Vapour Filter - 811109$1,641.49Special order, ships in 7-14 days
1895457Ferrari Compl. Vapour Filter - 895457$1,181.86Special order, ships in 7-14 days
1313209Ferrari Vapour Filter Complete - 313209$1,116.19Special order, ships in 7-14 days
2310848Ferrari Connector Rubber Boot - 310848$83.68Special order, ships in 7-14 days
313434170Ferrari Collar - 13434170$56.79Special order, ships in 7-14 days
4330863Ferrari Bracket - 330863$270.83Special order, ships in 7-14 days
4805528Ferrari Bracket - 805528$393.93Special order, ships in 7-14 days
5340626Ferrari Canister Shield - 340626$110.78Special order, ships in 7-14 days
5805529Ferrari Canister Shield - 805529$155.10Special order, ships in 7-14 days
612643724Ferrari/Maserati Washer - 12643724$0.20In stock
7305859Ferrari Vibration Damper Pad For Tanks - 305859$5.39Special order, ships in 7-14 days
884069800Ferrari Body Bracket Connection - 84069800$4.47Available, ships in 3-6 days
8255515Ferrari Zagato Seal - 255515$3.39Available, ships in 3-6 days
9291310Ferrari Plug 100X50 - 291310$15.28Special order, ships in 7-14 days
1014040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
1185692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
1281591700Ferrari Screw TE M6 x 18 with washer - 81591700$4.12Available, ships in 3-6 days
13310838Ferrari OBD Air Filter Inlet Pipe - 310838$167.40Special order, ships in 7-14 days
1414305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
14231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
1510716470Ferrari Collar - 10716470$2.59Available, ships in 3-6 days
16319372Ferrari Tank Air Bubble Connector Pipe - 319372$241.27Special order, ships in 7-14 days
17805568Ferrari Compl. Vapour Separator - 805568$1,034.12Special order, ships in 7-14 days
17842814Ferrari Separatore Vapori Cpl - 842814$640.17Special order, ships in 7-14 days
18805560Ferrari PIPE FROM DISCONNECTOR TO CANISTER - 805560Price on requestContact us for price and availability
18842811Ferrari Tubo Da Sezionamento A Canis - 842811$199.41Special order, ships in 7-14 days
19305726Ferrari Bracket - 305726$8.82Special order, ships in 7-14 days
2011625714Ferrari SCREW - 11625714$1.02Special order, ships in 7-14 days
2114039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
22314613Ferrari Bracket - 314613$46.75Special order, ships in 7-14 days
2314040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
24239094Ferrari Clip - 239094$2.59Special order, ships in 7-14 days
2510441690Ferrari P Clip D18mm - 10441690$3.91Special order, ships in 7-14 days
26266156Ferrari Clip - 266156$1.28Special order, ships in 7-14 days
27805563Ferrari COMPL. RH CYLINDER BANK FLUSH VALVE PIPE - 805563Price on requestContact us for price and availability
27843221Ferrari Tubo Valvola Lavagg. Banc.Dx - 843221$886.38Special order, ships in 7-14 days
28805557Ferrari Compl. LH Cylinder Bank Flus - 805557$886.38Special order, ships in 7-14 days
28843220Ferrari Tubo Valvola Lavagg. Banc.Sx - 843220$886.38Special order, ships in 7-14 days
29305724Ferrari Bracket - 305724$8.59Special order, ships in 7-14 days
3011625824Ferrari Screw 6x18 - 11625824$0.71Available, ships in 3-6 days
31333287Ferrari Heat Shield - 333287$88.61Special order, ships in 7-14 days
3216296934Ferrari Screw 6x14 - 16296934$0.90Special order, ships in 7-14 days
33259508Ferrari Clip 15.8mm-18.5mm - 259508$1.25Special order, ships in 7-14 days
34225408Ferrari Cylindrical Bushing - 225408$12.99Special order, ships in 7-14 days
35310829Ferrari Pipe From Canister To Right Valve - 310829$295.43Special order, ships in 7-14 days
36310826Ferrari Pipe From Canister To Left Valve - 310826$145.25Special order, ships in 7-14 days
37877438Ferrari RH Sensor Mounting Bracket - 877438$36.92Special order, ships in 7-14 days
38877437Ferrari LH Sensor Mounting Bracket - 877437$36.92Special order, ships in 7-14 days
39254427Ferrari Clip - 254427$0.79Special order, ships in 7-14 days
40254425Ferrari Evap Purge Valve - 254425$54.11In stock
4113434670Ferrari Screw Collar D16.2mm - 13434670$1.44Available, ships in 3-6 days
42876177Ferrari Riparo Calore Dx Cpl Di Sens - 876177$418.56Special order, ships in 7-14 days
43876175Ferrari Riparo Calore Sx Cpl Di Sens - 876175$418.56Special order, ships in 7-14 days
44876898Ferrari RH Flush Valve Mounting Brac - 876898$68.92Special order, ships in 7-14 days
45876901Ferrari LH Flush Valve Mounting Brac - 876901$68.92Special order, ships in 7-14 days
46327122Ferrari RH Vapour Pipe Mounting Brac - 327122$18.94Special order, ships in 7-14 days
47877780Ferrari LH Vapour Pipe Mounting Bracket - 877780$51.67Special order, ships in 7-14 days
4816284934Ferrari Screw - 16284934$1.61Available, ships in 3-6 days
4816284927Ferrari Screw 5x10 - 16284927SupersededOrder 16284934 instead
49849668Ferrari Tubazione Dx Ingresso - 849668$174.80Special order, ships in 7-14 days
49805586Ferrari Venturi RH Inlet Pipe - 805586$182.18Special order, ships in 7-14 days
50849667Ferrari Tubazione Sx Ingresso - 849667$177.25Special order, ships in 7-14 days
50805554Ferrari Venturi LH Inlet Pipe - 805554$189.56Special order, ships in 7-14 days
51248454Ferrari Bracket With Sheath - 248454$15.49Special order, ships in 7-14 days
5211570024Ferrari Screw 6X22 - 11570024$1.11Available, ships in 3-6 days
53290424Ferrari Bracket With Sheath D16mm - 290424$18.90Special order, ships in 7-14 days
5413432070Ferrari/Maserati Screw Collar / Hose Clamp - 13432070$0.95In stock
55246723Ferrari Clip D. 20 - 246723$3.91Available, ships in 3-6 days
56233600Ferrari/Maserati Screw - 233600$1.98In stock
57159918Ferrari Clip Set - 159918$1.84Special order, ships in 7-14 days
5885180600Ferrari Zagato Seal - 85180600$3.26Special order, ships in 7-14 days
59890868Ferrari Lower LH OBD Mounting Bracket - 890868$44.29Special order, ships in 7-14 days
59890869Ferrari Lower RH OBD Mounting Bracket - 890869$44.29Special order, ships in 7-14 days
