Ferrari F8 Spider — [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE (diagram 0067)

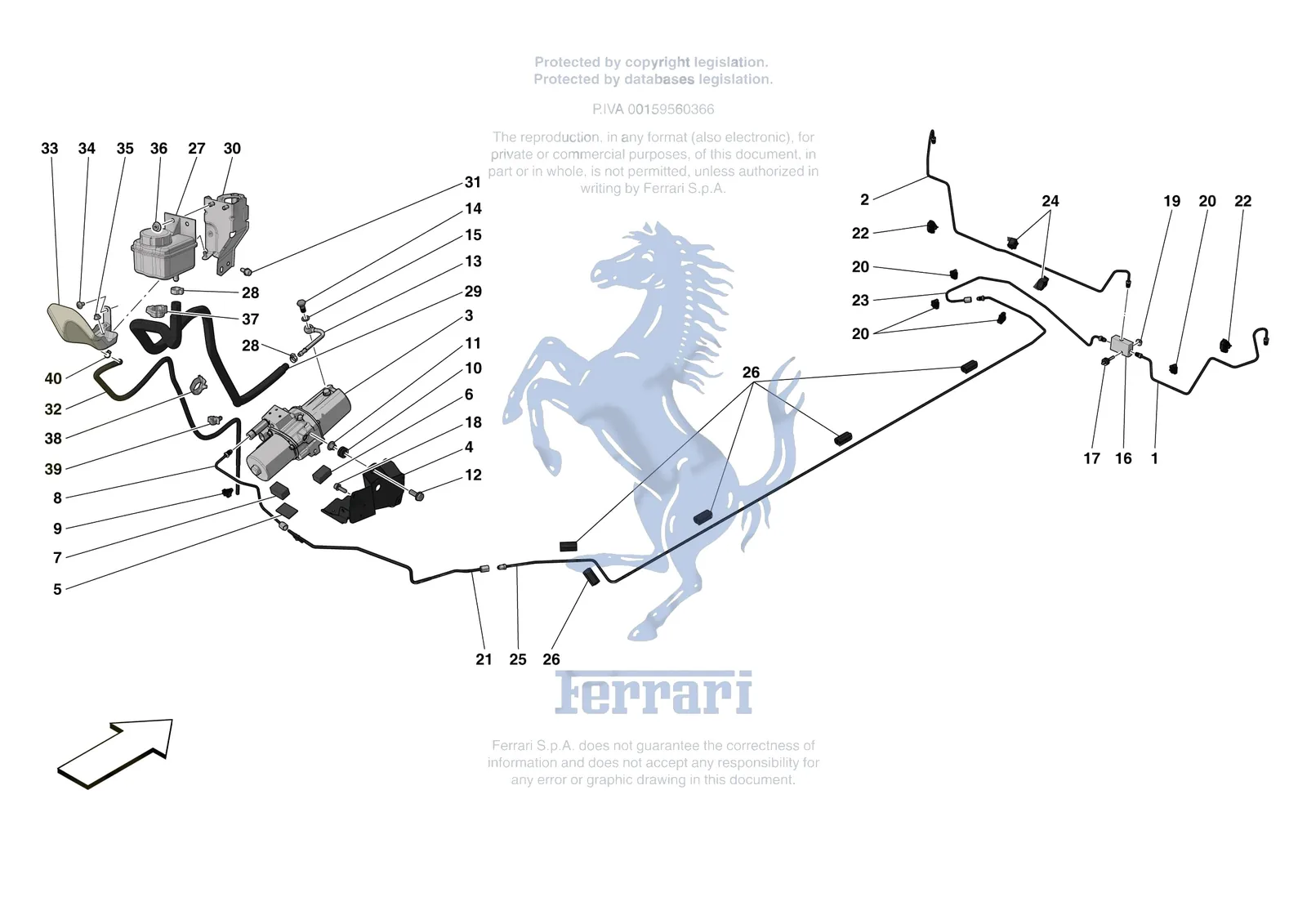

Exploded view of the [mechanical system] - d.18 - lifting the vehicle on the Ferrari F8 Spider, with 50 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari F8 Spider [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
313722Ferrari Electric Pump - 313722SupersededOrder 844052 instead
317319Ferrari Filler Lift System Hose - 317319SupersededOrder 336124 instead
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
255049Ferrari Screw 10x1.5x32 - 255049SupersededOrder 304224 instead
834367Ferrari Screw 8x25 - 834367SupersededOrder 231628 instead
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
1309626Ferrari RH Front Lift System Rigid Pipe - 309626$115.69Special order, ships in 7-14 days
2309625Ferrari LH Front Lift System Rigid Pipe - 309625$140.32Special order, ships in 7-14 days
3844052Ferrari Electric Pump - 844052$5,673.99Special order, ships in 7-14 days
4342309Ferrari Compl. Lifter Bracket - 342309$238.82Special order, ships in 7-14 days
5324747Ferrari Plug - 324747$4.16Special order, ships in 7-14 days
6308993Ferrari Plug - 308993$4.41Special order, ships in 7-14 days
7308995Ferrari Plug - 308995$4.39Special order, ships in 7-14 days
8342361Ferrari Pipe From Pump To Disconnecter - 342361$103.38Special order, ships in 7-14 days
9256962Ferrari Clip D. 4.7X1 - 256962$1.36Special order, ships in 7-14 days
10255047Ferrari Grommet - 255047$7.40Available, ships in 3-6 days
11255048Ferrari Grommet Shim - 255048$5.65Special order, ships in 7-14 days
12304224Ferrari Screw 10x1.5x28 - 304224$30.57Special order, ships in 7-14 days
13341976Ferrari Lift System Rigid Filler Pipe - 341976$140.32Special order, ships in 7-14 days
14259642Ferrari Banjo Bolt Pipe Union - 259642$31.93Special order, ships in 7-14 days
15260155Ferrari Gasket D12- 18X1.5 - 260155$7.84Special order, ships in 7-14 days
16260257Ferrari Distributor Block - 260257$147.72Special order, ships in 7-14 days
17268173Ferrari Plug - 268173$66.45Special order, ships in 7-14 days
18231628Ferrari Screw 8x25 - 231628$1.15Special order, ships in 7-14 days
1914039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
1915896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
20249650Ferrari Clip 4.7X1 - 249650$0.82Available, ships in 3-6 days
21341974Ferrari Rear Lift System Rigid Pipe - 341974$226.49Special order, ships in 7-14 days
21866263Ferrari Rear Lift System Rigid Pipe - 866263$238.82Special order, ships in 7-14 days
22249782Ferrari Clip - 249782$2.13Special order, ships in 7-14 days
23313416Ferrari Rigid Underbody Pipe - 313416$100.93Special order, ships in 7-14 days
24301063Ferrari Clip - 301063$1.65Available, ships in 3-6 days
25315867Ferrari Underbody Lift System Rigid - 315867$194.48Special order, ships in 7-14 days
26262737Ferrari Rubber Retainer - 262737$10.06Special order, ships in 7-14 days
27258573Ferrari Reservoir - 258573$86.04Special order, ships in 7-14 days
2813432070Ferrari/Maserati Screw Collar / Hose Clamp - 13432070$0.95In stock
29336124Ferrari Filler Lift System Hose - 336124$393.93Special order, ships in 7-14 days
30938087Ferrari Compl. Vehicle Lift System Reservoir Mounting Bracket - 938087$236.34Special order, ships in 7-14 days
3114305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
31231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
32938081Ferrari Tubo Gomma D. 3.5- 8X 1200 - 938081$211.73Special order, ships in 7-14 days
33935417Ferrari Lift System Reservoir Heat S - 935417$418.56Special order, ships in 7-14 days
3485692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
3514040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
3613046112Ferrari Nut - 13046112$0.46Available, ships in 3-6 days
37198273Ferrari Clip - 198273$3.26Available, ships in 3-6 days
38149773Ferrari Clip - 149773$0.90Available, ships in 3-6 days
39262559Ferrari Clip - 262559$1.78Available, ships in 3-6 days
4013432570Ferrari Collar - 13432570$2.82Special order, ships in 7-14 days
