Ferrari F8 Spider — [VEHICLE TRIM] - E.29.01 - DOORS - TRIM (diagram 0128)

Exploded view of the [vehicle trim] - e.29.01 - doors - trim on the Ferrari F8 Spider, with 139 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

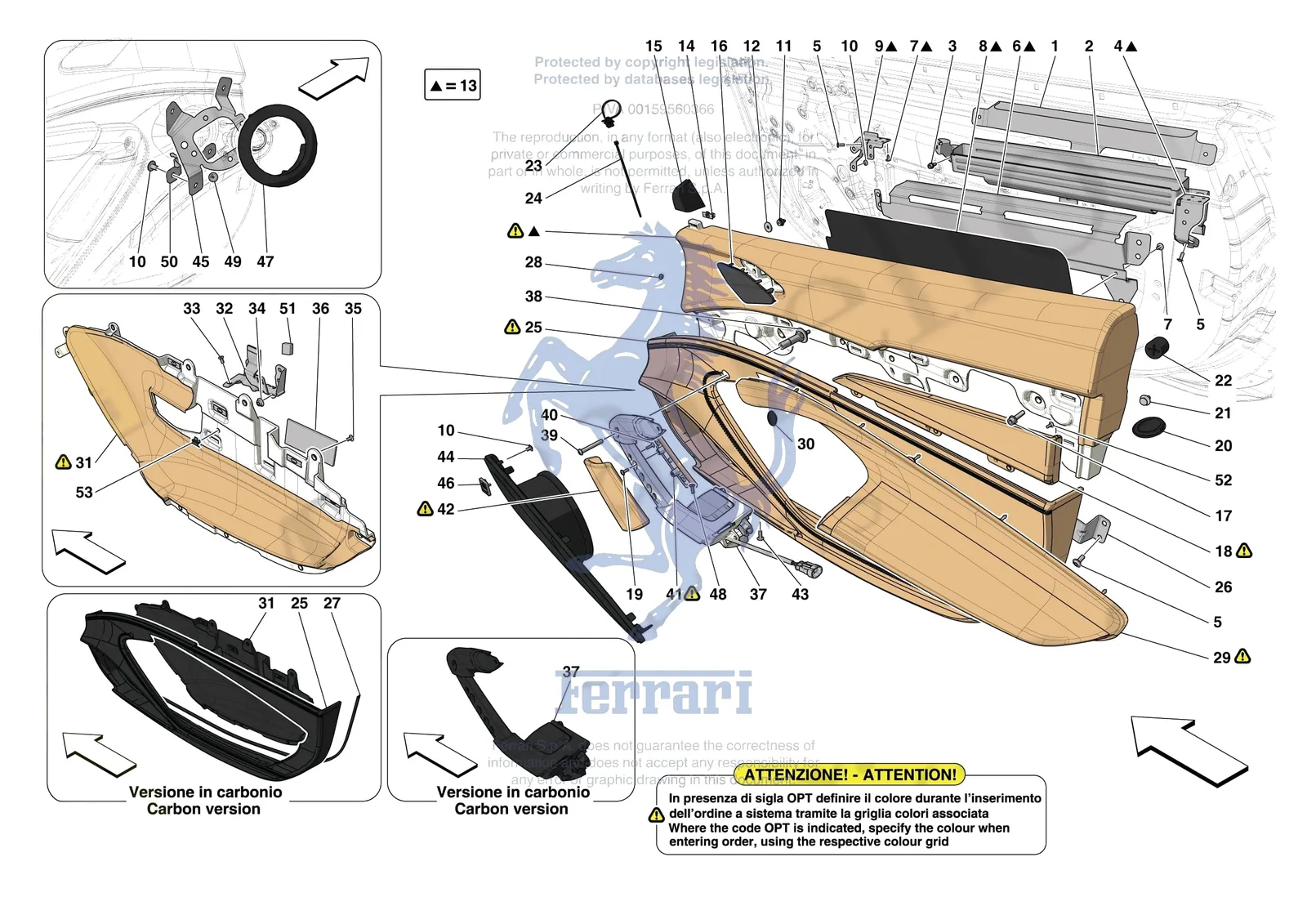

Ferrari F8 Spider [VEHICLE TRIM] - E.29.01 - DOORS - TRIM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
87405300Ferrari LH Airbag Complete - 87405300SupersededOrder 87805500 instead
86916412Ferrari Lh Upper Door Car - 86916412$856.69Special order, ships in 7-14 days
87405500Ferrari RH Airbag Complete - 87405500SupersededOrder 87805700 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
65071900Ferrari Screw 6x40 - 65071900SupersededOrder 87627200 instead
1824440Ferrari Foil Flap - 824440$98.46Special order, ships in 7-14 days
287805500Ferrari LH Airbag Complete - 87805500$1,647.38Special order, ships in 7-14 days
287805700Ferrari RH Airbag Complete - 87805700$1,647.38Special order, ships in 7-14 days
3248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
486766500Ferrari Rear LH Shelf Reinforcement - 86766500$194.48Special order, ships in 7-14 days
486766700Ferrari Rear RH Shelf Reinforcement - 86766700$194.48Special order, ships in 7-14 days
585833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
687820200Ferrari LH Takata Airbag Bracket - 87820200$467.80Special order, ships in 7-14 days
687820900Ferrari RH Takata Airbag Bracket - 87820900$467.80Special order, ships in 7-14 days
768176600Ferrari Screw - 68176600$12.23Special order, ships in 7-14 days
886764800Ferrari Foil Flap - 86764800$443.17Special order, ships in 7-14 days
987209700Ferrari Front LH Shelf Reinforcement - 87209700$270.83Special order, ships in 7-14 days
987220400Ferrari Front RH Shelf Reinforcement - 87220400$270.83Special order, ships in 7-14 days
1085691900Ferrari Screw M5 x 8 TBFTX - 85691900$0.65Available, ships in 3-6 days
1186004700Ferrari Clip - 86004700$1.44Special order, ships in 7-14 days
1265841100Ferrari Black Foam Washer - Self Adhesive - 65841100$2.13Available, ships in 3-6 days
13872358Ferrari Finiz. Porta Sup. Dx Cpl Bas - 872358$8,036.35Special order, ships in 7-14 days
13872185Ferrari Finiz. Porta Sup. Sx Cpl Bas - 872185$8,036.35Special order, ships in 7-14 days
1468700200Ferrari Fixing Clip - 68700200$10.68Special order, ships in 7-14 days
1586716600Ferrari LH Door Inner Corner Triangle Trim - 86716600$71.38Special order, ships in 7-14 days
1586726400Ferrari RH Door Inner Corner Triangle Trim - 86726400$71.38Special order, ships in 7-14 days
1687363700Ferrari LH Tweeter Surround - 87363700$3,042.21Special order, ships in 7-14 days
1687514000Ferrari LH Tweeter Surround - 87514000$204.34Special order, ships in 7-14 days
1687364300Ferrari RH Tweeter Surround - 87364300$3,042.21Special order, ships in 7-14 days
1687514200Ferrari RH Tweeter Surround - 87514200$204.34Special order, ships in 7-14 days
17231620Ferrari/Maserati Screw - 231620$0.58In stock
1886916400Ferrari LH Upper Door Card - 86916400SupersededOrder 86916412 instead
1886917700Ferrari RH Upper Door Card - 86917700$861.77Special order, ships in 7-14 days
1965752800Ferrari Screw M4 x 10 TBEI - 65752800$4.12Available, ships in 3-6 days
20276467Ferrari Cover - 276467$6.31Special order, ships in 7-14 days
2182672700Ferrari Fixing Clip - 82672700$1.67Available, ships in 3-6 days
2283888400Ferrari Door Alignment Foam Pad - 83888400$5.39Special order, ships in 7-14 days
23255869Ferrari Clip - 255869$3.91Special order, ships in 7-14 days
24145854Ferrari Cable tie 200mm - 145854$0.57Available, ships in 3-6 days
2570006851Ferrari COMPL. LH DOOR PANEL - 70006851Price on requestContact us for price and availability
2570006852Ferrari COMPL. LH DOOR PANEL - 70006852Price on requestContact us for price and availability
2570006855Ferrari COMPL. LH DOOR PANEL - 70006855Price on requestContact us for price and availability
2570006856Ferrari COMPL. LH DOOR PANEL - 70006856Price on requestContact us for price and availability
2570007062Ferrari COMPL. LH DOOR PANEL - 70007062Price on requestContact us for price and availability
2570007063Ferrari COMPL. LH DOOR PANEL - 70007063Price on requestContact us for price and availability
25872213Ferrari Compl. LH Door Panel - 872213Price on requestContact us for price and availability
25880336Ferrari Compl. LH Door Panel - 880336$5,034.72Special order, ships in 7-14 days
25892145Ferrari Compl. LH Door Panel - 892145$9,661.42Special order, ships in 7-14 days
25892510Ferrari Compl. LH Door Panel - 892510$9,417.55Special order, ships in 7-14 days
25892549Ferrari COMPL. LH DOOR PANEL - 892549Price on requestContact us for price and availability
25899008Ferrari Compl. LH Door Panel - 899008$16,025.80Special order, ships in 7-14 days
25899019Ferrari Compl. LH Door Panel - 899019$16,905.18Special order, ships in 7-14 days
25899029Ferrari COMPL. LH DOOR PANEL - 899029Price on requestContact us for price and availability
2570006849Ferrari COMPL. RH DOOR PANEL - 70006849Price on requestContact us for price and availability
2570006850Ferrari COMPL. RH DOOR PANEL - 70006850Price on requestContact us for price and availability
2570006853Ferrari COMPL. RH DOOR PANEL - 70006853Price on requestContact us for price and availability
2570006854Ferrari COMPL. RH DOOR PANEL - 70006854Price on requestContact us for price and availability
2570006985Ferrari COMPL. RH DOOR PANEL - 70006985Price on requestContact us for price and availability
2570007031Ferrari COMPL. RH DOOR PANEL - 70007031Price on requestContact us for price and availability
25872381Ferrari Compl. RH Door Panel - 872381$5,297.36Special order, ships in 7-14 days
25880328Ferrari Compl. RH Door Panel - 880328$5,191.83Special order, ships in 7-14 days
25892091Ferrari Compl. RH Door Panel - 892091$9,661.42Special order, ships in 7-14 days
25892362Ferrari Compl. RH Door Panel - 892362$9,417.55Special order, ships in 7-14 days
25892555Ferrari Compl. RH Door Panel - 892555$4,732.21Special order, ships in 7-14 days
25899156Ferrari Compl. RH Door Panel - 899156$16,025.80Special order, ships in 7-14 days
25899162Ferrari Compl. RH Door Panel - 899162$16,905.18Special order, ships in 7-14 days
25899169Ferrari Compl. RH Door Panel - 899169$4,736.90Special order, ships in 7-14 days
26893454Ferrari Rear Panel Fastener Bracket - 893454$443.17Special order, ships in 7-14 days
27752171Ferrari Door Panel Jamb Seal - 752171$65.63Special order, ships in 7-14 days
2884111900Ferrari Grub Screw - 84111900$10.31Available, ships in 3-6 days
2970006858Ferrari LH Door Card - 70006858$3,088.35Special order, ships in 7-14 days
29872281Ferrari LH Door Card - 872281$7,290.62Special order, ships in 7-14 days
29892534Ferrari LH Door Card - 892534$2,999.25Special order, ships in 7-14 days
2970006857Ferrari RH DOOR CARD - 70006857Price on requestContact us for price and availability
29872404Ferrari RH Door Card - 872404$3,191.54Special order, ships in 7-14 days
29892566Ferrari RH Door Card - 892566$2,999.25Special order, ships in 7-14 days
3014506787Ferrari Rubber Plug D20 - 14506787$10.25Available, ships in 3-6 days
3170006860Ferrari COMPL. LH DOOR PANEL POCKET - 70006860Price on requestContact us for price and availability
31872221Ferrari Compl. LH Door Panel Pocket - 872221$1,899.43Special order, ships in 7-14 days
31892162Ferrari Compl. LH Door Panel Pocket - 892162$5,775.74Special order, ships in 7-14 days
31892507Ferrari Compl. LH Door Panel Pocket - 892507$5,674.90Special order, ships in 7-14 days
31892548Ferrari COMPL. LH DOOR PANEL POCKET - 892548Price on requestContact us for price and availability
3170006859Ferrari COMPL. RH DOOR PANEL POCKET - 70006859Price on requestContact us for price and availability
31872389Ferrari Compl. RH Door Panel Pocket - 872389$1,899.43Special order, ships in 7-14 days
31892100Ferrari Compl. RH Door Panel Pocket - 892100$5,775.74Special order, ships in 7-14 days
31892370Ferrari Compl. RH Door Panel Pocket - 892370$5,674.90Special order, ships in 7-14 days
31892559Ferrari Compl. RH Door Panel Pocket - 892559$1,875.98Special order, ships in 7-14 days
32848514Ferrari LH Door Pull Handle Bracket - 848514$110.78Special order, ships in 7-14 days
32848509Ferrari RH Door Pull Handle Bracket - 848509$110.78Special order, ships in 7-14 days
3314440634Ferrari SCREW - 14440634$0.31Available, ships in 3-6 days
3413832101Ferrari Flanged Nut M6 - 13832101$0.27Available, ships in 3-6 days
3585692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
36179309Ferrari ADHESIVE FOAM - 179309$8.28Available, ships in 3-6 days
3770006862Ferrari COMPL. LH DOOR PULL HANDLE - 70006862Price on requestContact us for price and availability
3770006864Ferrari Compl. LH Door Pull Handle - 70006864$13,723.00Special order, ships in 7-14 days
3770006861Ferrari COMPL. RH DOOR PULL HANDLE - 70006861Price on requestContact us for price and availability
3770006863Ferrari Compl. RH Door Pull Handle - 70006863$13,723.00Special order, ships in 7-14 days
37918560Ferrari Manig Tirap Carbon Lucido Dx - 918560$5,487.31Special order, ships in 7-14 days
37918732Ferrari Manig Tirap Carbon Opaco Dx - 918732$5,773.40Special order, ships in 7-14 days
37912466Ferrari Manig Tirapo Carbon Lucido S - 912466$5,487.31Special order, ships in 7-14 days
37912482Ferrari Manig Tirapo Carbon Opaco Sx - 912482$5,773.40Special order, ships in 7-14 days
37856997Ferrari Maniglione Tiraporta Dx Cpl - 856997$1,009.51Special order, ships in 7-14 days
37821238Ferrari Maniglione Tiraporta Sx Cpl - 821238$1,009.51Special order, ships in 7-14 days
3887231500Ferrari Passenger Side Grab Handle Spacer - 87231500$41.55Special order, ships in 7-14 days
3914305524Ferrari Allen Screw M6 x 30 - 14305524$0.27Available, ships in 3-6 days
3987627200Ferrari Screw TBEI M6x40 - 87627200$1.42Special order, ships in 7-14 days
41862462Ferrari Compl. LH Rear Grab Handle - 862462$517.04Special order, ships in 7-14 days
41892528Ferrari COMPL. LH REAR GRAB HANDLE - 892528Price on requestContact us for price and availability
41862565Ferrari Compl. RH Rear Grab Handle - 862565$517.04Special order, ships in 7-14 days
41892562Ferrari COMPL. RH REAR GRAB HANDLE - 892562Price on requestContact us for price and availability
42862463Ferrari Compl. LH Front Grab Handle - 862463$738.64Special order, ships in 7-14 days
42892533Ferrari Compl. LH Front Grab Handle - 892533$664.78Special order, ships in 7-14 days
42862566Ferrari Compl. RH Front Grab Handle - 862566$738.64Special order, ships in 7-14 days
42892560Ferrari Compl. RH Front Grab Handle - 892560$664.78Special order, ships in 7-14 days
4362797600Ferrari Allen Bolt C/Sunk M6 x 20 TSEI - 62797600$1.99Available, ships in 3-6 days
4365377400Ferrari Screw M6 x 1 x 18 - 65377400$3.91Available, ships in 3-6 days
44862474Ferrari Compl. LH Door Woofer Grille - 862474$861.77Special order, ships in 7-14 days
44871682Ferrari Compl. LH Door Woofer Grille - 871682$861.77Special order, ships in 7-14 days
44877111Ferrari Compl. LH Door Woofer Grille - 877111$714.03Special order, ships in 7-14 days
44877160Ferrari Compl. LH Door Woofer Grille - 877160$861.77Special order, ships in 7-14 days
44880516Ferrari Compl. LH Door Woofer Grille - 880516$935.64Special order, ships in 7-14 days
44880528Ferrari Compl. LH Door Woofer Grille - 880528$935.64Special order, ships in 7-14 days
44880544Ferrari Compl. LH Door Woofer Grille - 880544$787.90Special order, ships in 7-14 days
44880556Ferrari Compl. LH Door Woofer Grille - 880556$935.64Special order, ships in 7-14 days
44862493Ferrari Compl. RH Door Woofer Grille - 862493$714.03Special order, ships in 7-14 days
44871700Ferrari Compl. RH Door Woofer Grille - 871700$861.77Special order, ships in 7-14 days
44880443Ferrari Compl. RH Door Woofer Grille - 880443$787.90Special order, ships in 7-14 days
44880500Ferrari Compl. RH Door Woofer Grille - 880500$935.64Special order, ships in 7-14 days
45842643Ferrari Mirror Controls Bracket - 842643$41.82Special order, ships in 7-14 days
45881009Ferrari Mirror Controls Bracket - 881009$61.52Special order, ships in 7-14 days
4683198200Ferrari JBL Logo - 83198200$44.24Available, ships in 3-6 days
4886077300Ferrari Screw TSEI M5 x 16 - 86077300$1.23Special order, ships in 7-14 days
4914227474Ferrari Motif Clips - 14227474$0.27Available, ships in 3-6 days
50842631Ferrari COMPL. DOOR PANEL MOUNTING BRACKET - 842631Price on requestContact us for price and availability
5184278700Ferrari Lower Pillar Vibration Damper - 84278700$3.41Special order, ships in 7-14 days
5311223887Ferrari Clip - 11223887$1.02Special order, ships in 7-14 days
