Ferrari F8 Tributo — [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES (diagram 0044)

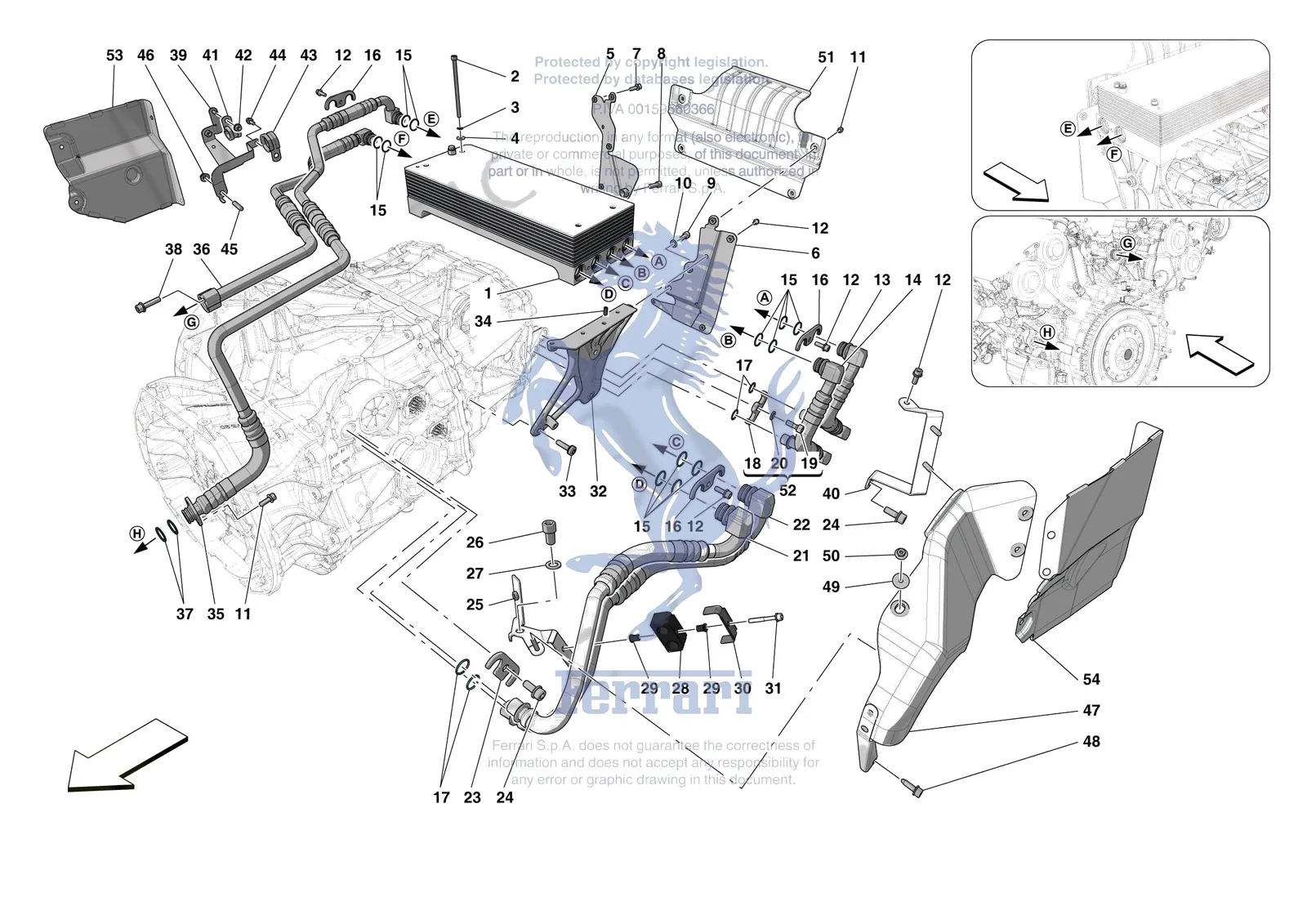

Exploded view of the [gearbox] - c.03.02 - gearbox oil heat exchanger and pipes - heat exchanger and rear pipes on the Ferrari F8 Tributo, with 62 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari F8 Tributo [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
236480Ferrari Fork Without Captive Screw - 236480SupersededOrder 253631 instead
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
13516821Ferrari RH Threaded Stud - 13516821SupersededOrder 13543324 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
1309825Ferrari Heat Exchanger - 309825$8,120.75Special order, ships in 7-14 days
214300224Ferrari Allen Screw - 14300224$1.99Available, ships in 3-6 days
312604279Ferrari Washer - 12604279$0.12Available, ships in 3-6 days
312604274Ferrari Wavy Washer 6mm - 12604274$0.12Available, ships in 3-6 days
412646624Ferrari Washer 6.15-15x1.5 - 12646624$0.40Available, ships in 3-6 days
5333003Ferrari Coolant Pipe Shield Bracket - 333003$96.01Special order, ships in 7-14 days
6909463Ferrari Gearbox Oil Pipes Shield Bracket - 909463$128.01Special order, ships in 7-14 days
714305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
7231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
814307524Ferrari Allen Screw M10 x 1.25 x 3x TCEI - 14307524$2.18Available, ships in 3-6 days
914360024Ferrari Allen Screw - 14360024$1.46Available, ships in 3-6 days
1012604574Ferrari Washer - 12604574$0.13Available, ships in 3-6 days
11248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
12231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
13767049Ferrari Tubo Ritorno Olio Gl5 - 767049$492.43Special order, ships in 7-14 days
14767048Ferrari Tubo Mandata Olio Gl5 - 767048$517.04Special order, ships in 7-14 days
15166656Ferrari O-Ring - 166656$0.92Special order, ships in 7-14 days
16309168Ferrari Fork - 309168$46.75Special order, ships in 7-14 days
17254644Ferrari O-Ring Gasket - 254644$0.77Available, ships in 3-6 days
18253632Ferrari Fork - 253632SupersededOrder 253631 instead
19253465Ferrari Screw - 253465$65.24Special order, ships in 7-14 days
2011198074Ferrari/Maserati Washer - 11198074$0.14In stock
21767038Ferrari Tubo Mandata Olio Atf - 767038$517.04Special order, ships in 7-14 days
22767043Ferrari Tubo Ritorno Olio Atf - 767043$492.43Special order, ships in 7-14 days
23287096Ferrari Fork - 287096$142.79Special order, ships in 7-14 days
24248471Ferrari Screw 8x20 - 248471$2.07Available, ships in 3-6 days
25314654Ferrari Oil Pipe Mounting Bracket - 314654$61.52Special order, ships in 7-14 days
2614360524Ferrari Screw 12X1.25X20 - 14360524$3.03Special order, ships in 7-14 days
27127498Ferrari Spring Washer 12mm - 127498$0.27Available, ships in 3-6 days
28243397Ferrari Pillory Block - 243397$29.52Available, ships in 3-6 days
29243399Ferrari Bushing - 243399$1.44Special order, ships in 7-14 days
30243398Ferrari Plate - 243398$21.60Special order, ships in 7-14 days
31231624Ferrari Allen Screw M6 x 45 - 231624SupersededOrder 14305924 instead
32340541Ferrari LH Bracket for Single Oil Heat Exchanger - 340541$443.17Special order, ships in 7-14 days
32843552Ferrari RH Bracket for Single Oil Heat Exchanger - 843552$443.17Special order, ships in 7-14 days
33216576Ferrari Screw 8X30 - 216576$1.42Available, ships in 3-6 days
3414603370Ferrari Spring Pin - 14603370$0.38Special order, ships in 7-14 days
35767036Ferrari Tubo Mandata H2O - 767036$935.64Special order, ships in 7-14 days
36884676Ferrari Tubo Ritorno H2O - 884676$714.03Special order, ships in 7-14 days
37205416Ferrari Gasket - 205416$0.82Special order, ships in 7-14 days
38231620Ferrari/Maserati Screw - 231620$0.58In stock
39879405Ferrari RH Oil Heat Exchanger Shield Mounting Bracket - 879405$73.85Special order, ships in 7-14 days
40332899Ferrari LH Oil Heat Exchanger Shield Mounting Bracket - 332899$49.22Special order, ships in 7-14 days
4110441690Ferrari P Clip D18mm - 10441690$3.91Special order, ships in 7-14 days
4214040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
4310442190Ferrari P Clip Bracket With Sheath - 10442190$1.42Available, ships in 3-6 days
4411568024Ferrari Screw - 11568024$1.97Special order, ships in 7-14 days
4513516824Ferrari/Maserati Stud - 13516824$0.58In stock
4614059311Ferrari NUT - 14059311$0.52Available, ships in 3-6 days
47322829Ferrari LH Single Oil Heat Exchanger - 322829$344.69Special order, ships in 7-14 days
4811568124Ferrari Screw M6 x 20 TCE - 11568124$1.78Available, ships in 3-6 days
4912648978Ferrari Washer - 12648978$1.04Available, ships in 3-6 days
5014039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
51333008Ferrari Riparo Calore Posteriore X M - 333008$192.03Special order, ships in 7-14 days
52253631Ferrari Fork Without Captive Screw - 253631$83.68Special order, ships in 7-14 days
53879345Ferrari Riparo Calore Monoscambiator - 879345$295.43Special order, ships in 7-14 days
54879779Ferrari Riparo Calore Post. Sx Per M - 879779$295.43Special order, ships in 7-14 days
