Ferrari F8 Tributo — [MECHANICAL SYSTEM] - D.05 - TURBOCHARGING SYSTEM ADJUSTMENTS (diagram 0053)

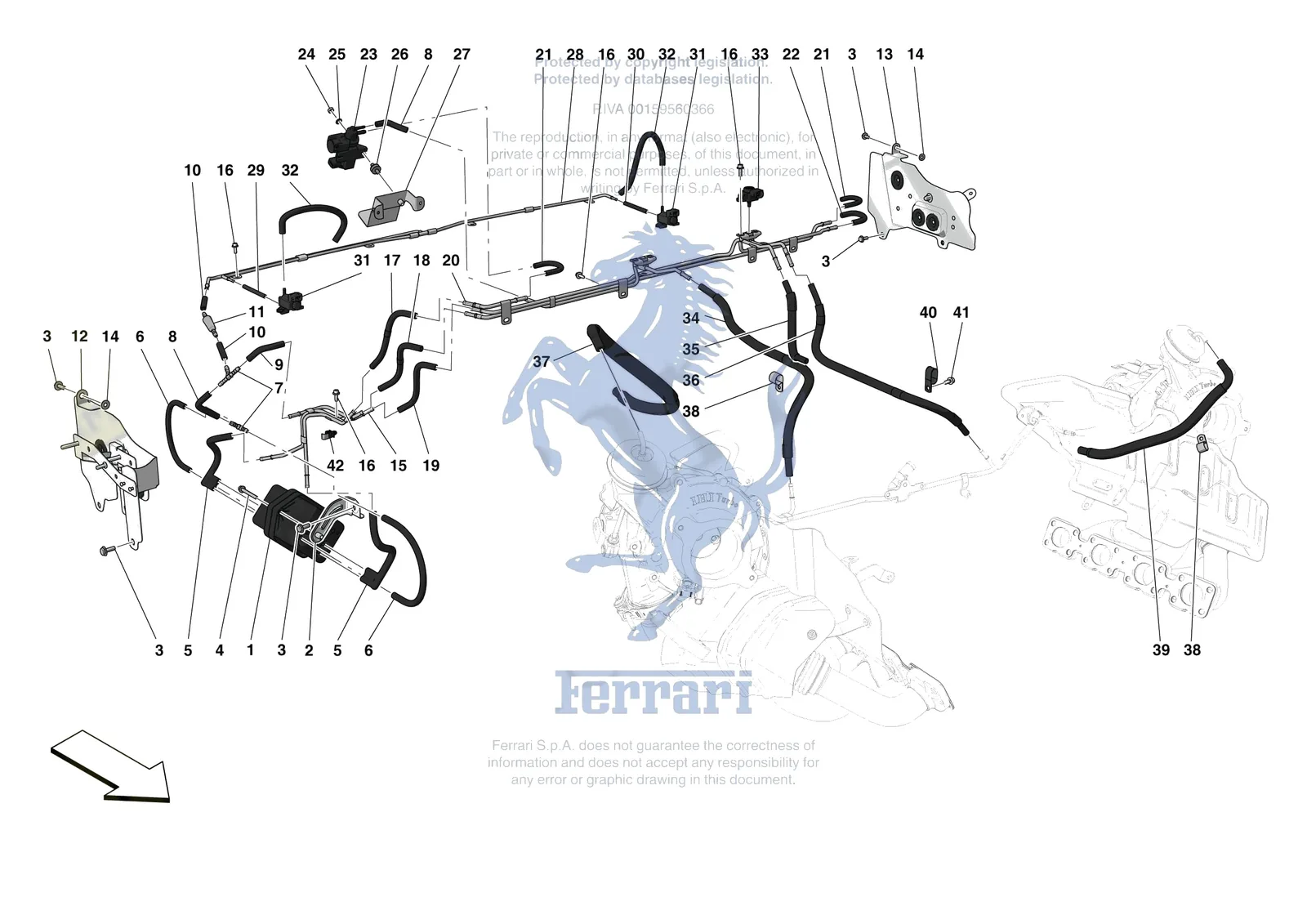

Exploded view of the [mechanical system] - d.05 - turbocharging system adjustments on the Ferrari F8 Tributo, with 55 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari F8 Tributo [MECHANICAL SYSTEM] - D.05 - TURBOCHARGING SYSTEM ADJUSTMENTS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
261684Ferrari Rubber Pipe D. 3.5-8x95 - 261684$5.63Special order, ships in 7-14 days
321334Ferrari Rubber Pipe D. 5-12x250 - 321334SupersededOrder 299144 instead
321331Ferrari Rubber Pipe D.5-12x170 - 321331SupersededOrder 307042 instead
231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead
1329914Ferrari Vacuum Accumulator Tank - 329914$78.76Special order, ships in 7-14 days
2315188Ferrari Vacuum Tank Fastener Bracket - 315188$36.92Special order, ships in 7-14 days
311625824Ferrari Screw 6x18 - 11625824$0.71Available, ships in 3-6 days
4231625Ferrari Screw 6x50 - 231625$1.25Available, ships in 3-6 days
5318543Ferrari Rubber Pipe - 318543$41.82Special order, ships in 7-14 days
6299144Ferrari Rubber Pipe - 299144$27.06Special order, ships in 7-14 days
7305769Ferrari T Union - 305769$4.35Special order, ships in 7-14 days
8314923Ferrari Rubber Pipe - 314923$10.56Special order, ships in 7-14 days
9302194Ferrari Rubber Hose - 302194$13.01Special order, ships in 7-14 days
10340494Ferrari Rubber Pipe - 340494$8.84Special order, ships in 7-14 days
11295349Ferrari Non Return Valve - 295349$76.19Special order, ships in 7-14 days
12898131Ferrari Riparo Calore Fanale Dx Cpl - 898131$393.93Special order, ships in 7-14 days
13758770Ferrari Riparo Calore Fanale Sx Cpl - 758770$369.30Special order, ships in 7-14 days
1412644404Ferrari Washer - 12644404SupersededOrder 12644424 instead
1412644424Ferrari Washer 6.15-15 x 1 - 12644424$0.12Available, ships in 3-6 days
15334351Ferrari Compl. Rigid Pipe - 334351$270.83Special order, ships in 7-14 days
16256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
17330678Ferrari Rubber Pipe - 330678$34.44Special order, ships in 7-14 days
18330004Ferrari Rubber Pipe - 330004$34.44Special order, ships in 7-14 days
19307042Ferrari Rubber Pipe - 307042$15.98Special order, ships in 7-14 days
20335044Ferrari Compl. Rigid Pipe - 335044$1,058.75Special order, ships in 7-14 days
21323549Ferrari Rubber Pipe - 323549$16.22Special order, ships in 7-14 days
22314924Ferrari Rubber Pipe - 314924$11.31Special order, ships in 7-14 days
23316062Ferrari Modulator Solenoid Valve - 316062$184.65Available, ships in 3-6 days
2410725914Ferrari Nut M6 x 4 - 10725914$0.19Available, ships in 3-6 days
2512601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
26331701Ferrari Cylindrical Bushing With Scr - 331701$31.99Special order, ships in 7-14 days
27331230Ferrari Solenoid Valve Mounting Brac - 331230$123.09Special order, ships in 7-14 days
28340487Ferrari Compl. Rigid Pipe - 340487$566.30Special order, ships in 7-14 days
29892874Ferrari Tubo Gomma D. 4-8.5X 75 - 892874$9.08Special order, ships in 7-14 days
30321333Ferrari Rubber Pipe D.4-8.5x95 - 321333$10.06Special order, ships in 7-14 days
31315769Ferrari/Maserati Solenoid Valve - 315769$75.58In stock
32147123Ferrari Silicone Vacuum Pipe 23cm - 147123$41.59Available, ships in 3-6 days
32MC4912/1Ferrari Vacuum Hose 3mm ID x 10mm OD Per Metre - MC4912/1$52.82Available, ships in 3-6 days
33309966Ferrari Air Pressure Sensor - 309966$151.00Special order, ships in 7-14 days
34865486Ferrari Rubber Pipe - 865486$211.73Special order, ships in 7-14 days
35865481Ferrari Compl. Rubber Pipe - 865481$123.09Special order, ships in 7-14 days
36865500Ferrari Rubber Pipe - 865500$231.42Special order, ships in 7-14 days
37842975Ferrari Rubber Pipe - 842975$270.83Special order, ships in 7-14 days
3810418801Ferrari Clamp 16mm - 10418801$1.04Special order, ships in 7-14 days
39329973Ferrari Rubber Pipe - 329973$189.56Special order, ships in 7-14 days
4010116401Ferrari Bracket P Clip - 10116401$8.05Special order, ships in 7-14 days
41248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
42303873Ferrari Clip D.6 - 303873$3.47Available, ships in 3-6 days

All F8 Tributo diagrams
