Ferrari F8 Tributo — [MECHANICAL SYSTEM] - D.15 - EXPANSION TANK (diagram 0064)
Exploded view of the [mechanical system] - d.15 - expansion tank on the Ferrari F8 Tributo, with 21 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

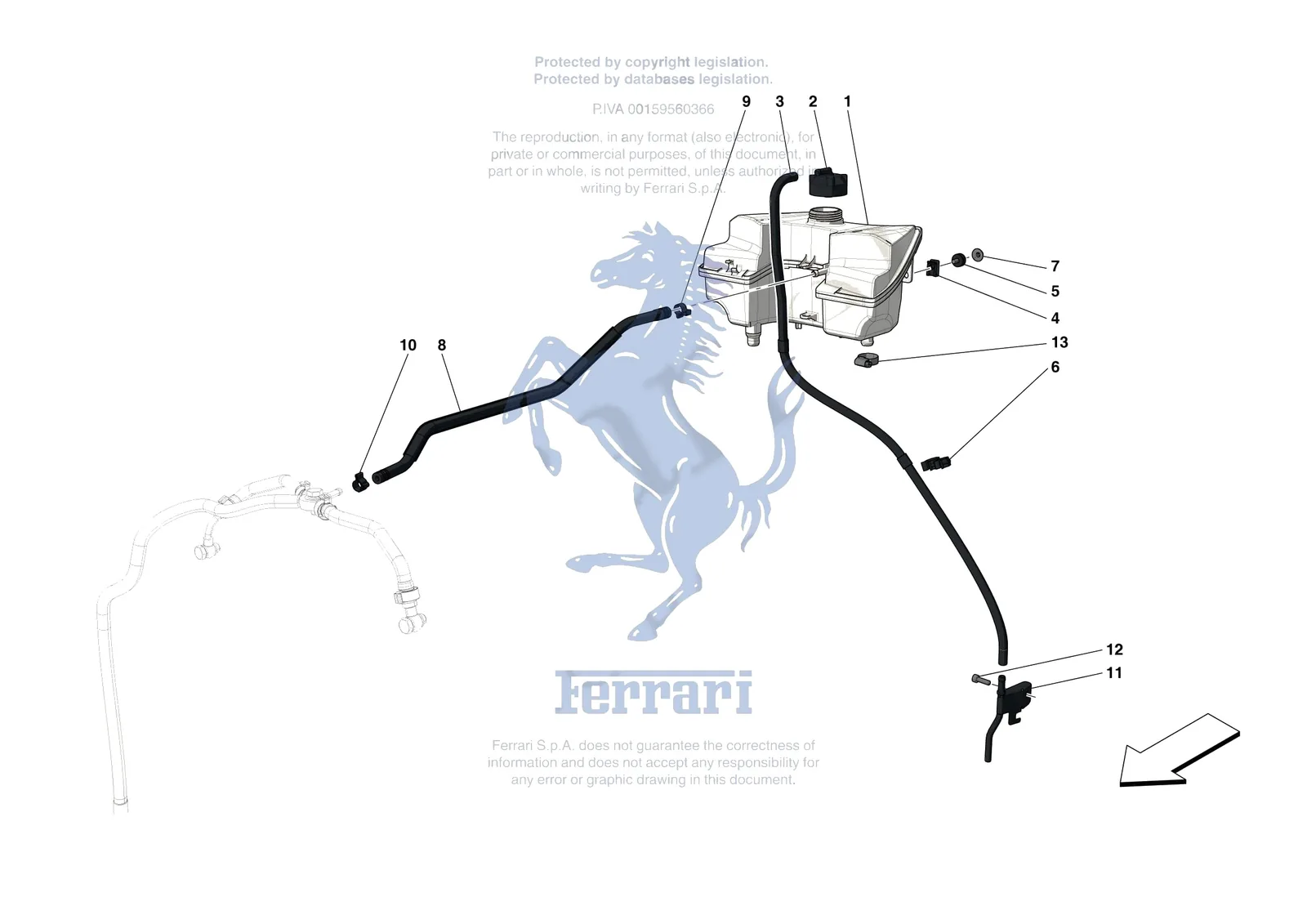

![Ferrari F8 Tributo [MECHANICAL SYSTEM] - D.15 - EXPANSION TANK exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-tributo/0064.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 321089 | Ferrari Coolant Reservoir - 321089 | Superseded | Order 332129 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 1 | 332129 | Ferrari Coolant Reservoir - 332129 | $517.04 | Special order, ships in 7-14 days |
| 2 | 145030 | Ferrari Radiator Cap - 145030 | $89.98 | In stock |
| 3 | 813422 | Ferrari Compl. Header Tank Rigid Dra - 813422 | $201.88 | Special order, ships in 7-14 days |
| 4 | 333881 | Ferrari Clip - 333881 | $7.86 | Special order, ships in 7-14 days |
| 5 | 225408 | Ferrari Cylindrical Bushing - 225408 | $12.99 | Special order, ships in 7-14 days |
| 6 | 303321 | Ferrari Clip - 303321 | $2.61 | Special order, ships in 7-14 days |
| 7 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 7 | 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead |
| 8 | 338849 | Ferrari Header Tank Vent Pipe - 338849 | $150.17 | Special order, ships in 7-14 days |
| 9 | 13125470 | Ferrari Collar - 13125470 | Superseded | Order 13126970 instead |
| 9 | 13126970 | Ferrari Collar - 13126970 | $3.03 | Available, ships in 3-6 days |
| 11 | 320347 | Ferrari Header Tank Rigid Drain Pipe - 320347 | Price on request | Contact us for price and availability |
| 12 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 12 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 13 | 178052 | Ferrari Clip - 178052 | $3.26 | Available, ships in 3-6 days |
| 13 | 296778 | Ferrari Screw Collar 16- 27mm - 296778 | Superseded | Order 178052 instead |
