Ferrari F8 Tributo — [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE (diagram 0067)

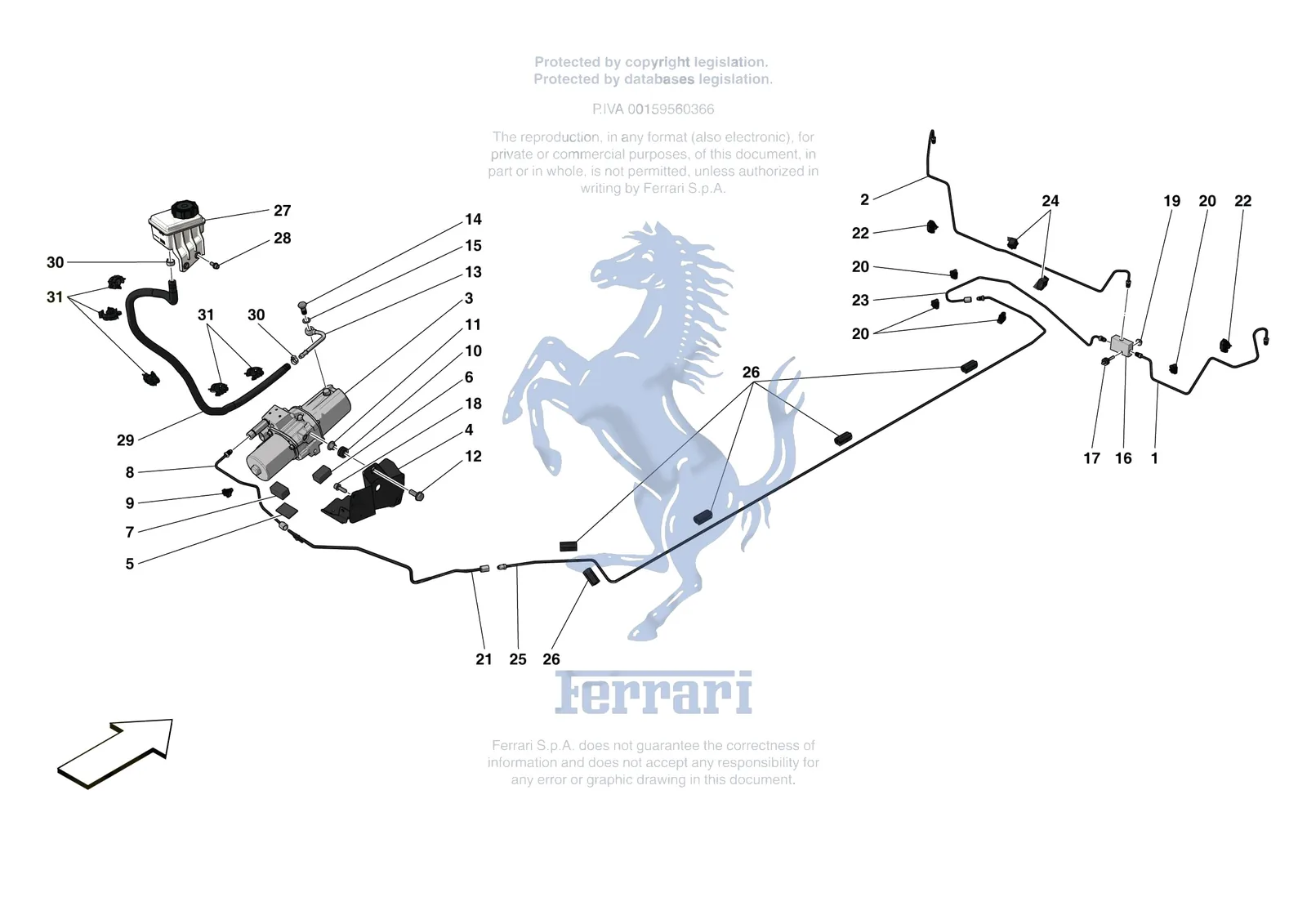

Exploded view of the [mechanical system] - d.18 - lifting the vehicle on the Ferrari F8 Tributo, with 40 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Tributo [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-tributo/0067.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 313722 | Ferrari Electric Pump - 313722 | Superseded | Order 844052 instead | |
| 313968 | Ferrari Lift System Filler Tank - 313968 | Superseded | Order 326103 instead | |
| 255049 | Ferrari Screw 10x1.5x32 - 255049 | Superseded | Order 304224 instead | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 834367 | Ferrari Screw 8x25 - 834367 | Superseded | Order 231628 instead | |
| 1 | 309626 | Ferrari RH Front Lift System Rigid Pipe - 309626 | $115.69 | Special order, ships in 7-14 days |
| 2 | 309625 | Ferrari LH Front Lift System Rigid Pipe - 309625 | $140.32 | Special order, ships in 7-14 days |
| 3 | 844052 | Ferrari Electric Pump - 844052 | $5,673.99 | Special order, ships in 7-14 days |
| 4 | 342309 | Ferrari Compl. Lifter Bracket - 342309 | $238.82 | Special order, ships in 7-14 days |
| 5 | 324747 | Ferrari Plug - 324747 | $4.16 | Special order, ships in 7-14 days |
| 6 | 308993 | Ferrari Plug - 308993 | $4.41 | Special order, ships in 7-14 days |
| 7 | 308995 | Ferrari Plug - 308995 | $4.39 | Special order, ships in 7-14 days |
| 8 | 342361 | Ferrari Pipe From Pump To Disconnecter - 342361 | $103.38 | Special order, ships in 7-14 days |
| 9 | 256962 | Ferrari Clip D. 4.7X1 - 256962 | $1.36 | Special order, ships in 7-14 days |
| 10 | 255047 | Ferrari Grommet - 255047 | $7.40 | Available, ships in 3-6 days |
| 11 | 255048 | Ferrari Grommet Shim - 255048 | $5.65 | Special order, ships in 7-14 days |
| 12 | 304224 | Ferrari Screw 10x1.5x28 - 304224 | $30.57 | Special order, ships in 7-14 days |
| 13 | 341976 | Ferrari Lift System Rigid Filler Pipe - 341976 | $140.32 | Special order, ships in 7-14 days |
| 14 | 259642 | Ferrari Banjo Bolt Pipe Union - 259642 | $31.93 | Special order, ships in 7-14 days |
| 15 | 260155 | Ferrari Gasket D12- 18X1.5 - 260155 | $7.84 | Special order, ships in 7-14 days |
| 16 | 260257 | Ferrari Distributor Block - 260257 | $147.72 | Special order, ships in 7-14 days |
| 17 | 268173 | Ferrari Plug - 268173 | $66.45 | Special order, ships in 7-14 days |
| 18 | 231628 | Ferrari Screw 8x25 - 231628 | $1.15 | Special order, ships in 7-14 days |
| 19 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 19 | 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead |
| 20 | 249650 | Ferrari Clip 4.7X1 - 249650 | $0.82 | Available, ships in 3-6 days |
| 21 | 341974 | Ferrari Rear Lift System Rigid Pipe - 341974 | $226.49 | Special order, ships in 7-14 days |
| 21 | 866263 | Ferrari Rear Lift System Rigid Pipe - 866263 | $238.82 | Special order, ships in 7-14 days |
| 22 | 249782 | Ferrari Clip - 249782 | $2.13 | Special order, ships in 7-14 days |
| 23 | 313416 | Ferrari Rigid Underbody Pipe - 313416 | $100.93 | Special order, ships in 7-14 days |
| 24 | 301063 | Ferrari Clip - 301063 | $1.65 | Available, ships in 3-6 days |
| 25 | 315867 | Ferrari Underbody Lift System Rigid - 315867 | $194.48 | Special order, ships in 7-14 days |
| 26 | 262737 | Ferrari Rubber Retainer - 262737 | $10.06 | Special order, ships in 7-14 days |
| 27 | 326103 | Ferrari Lift System Filling Tank - 326103 | $137.67 | Special order, ships in 7-14 days |
| 28 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 29 | 314594 | Ferrari Filler Lift System Hose - 314594 | $269.23 | Special order, ships in 7-14 days |
| 30 | 13432070 | Ferrari/Maserati Screw Collar / Hose Clamp - 13432070 | $0.95 | In stock |
| 31 | 247440 | Ferrari Clip - 247440 | $1.30 | Available, ships in 3-6 days |
