Ferrari F8 Tributo — [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM (diagram 0170)

Exploded view of the [vehicle trim] - e.57.02 - ac system - air conditioner system on the Ferrari F8 Tributo, with 104 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

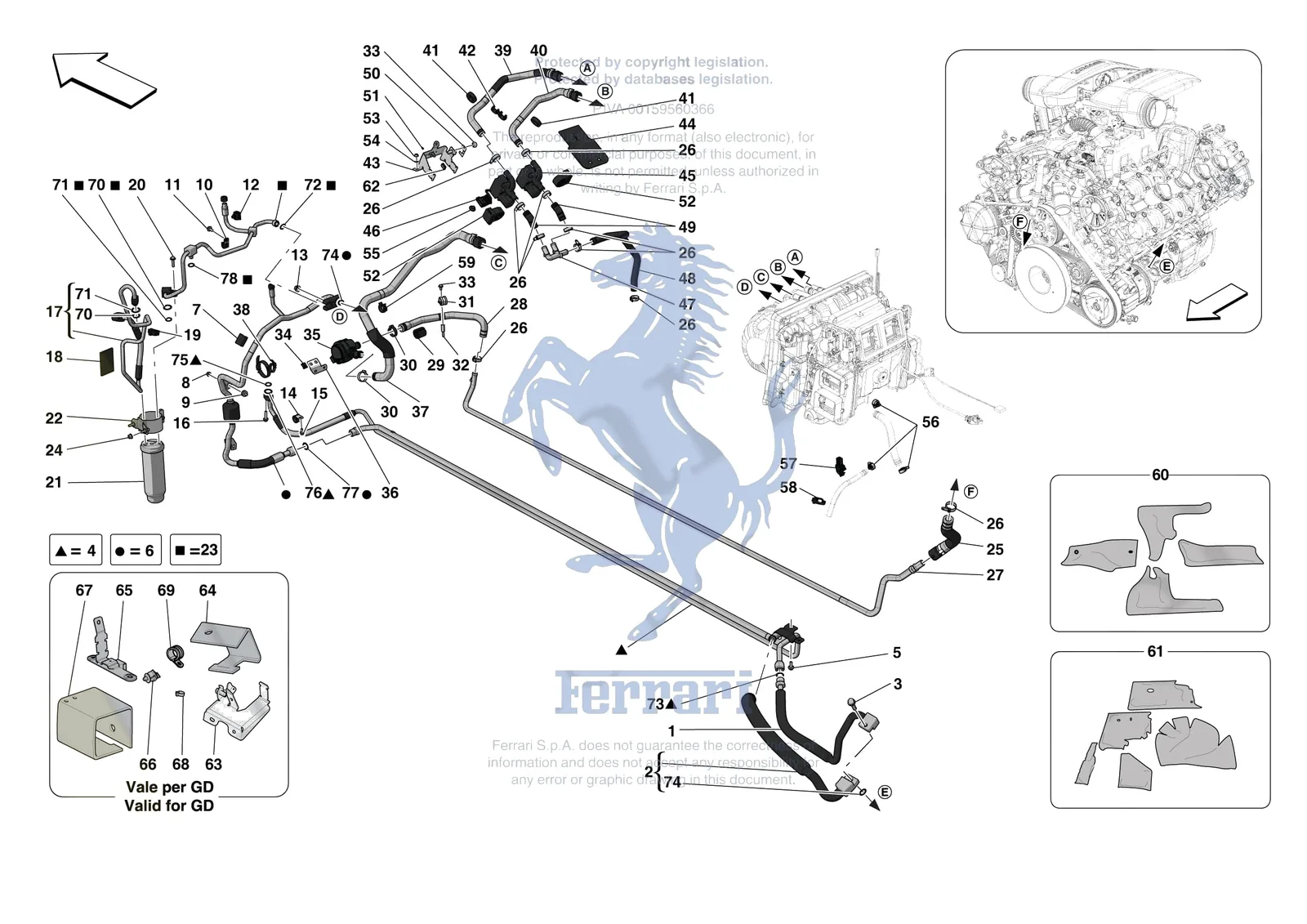

Ferrari F8 Tributo [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
204781Ferrari Clip - 204781$1.67Available, ships in 3-6 days
222826Ferrari Clip - 222826$5.44Special order, ships in 7-14 days
13442484Ferrari Gasket - 13442484SupersededOrder 11342484 instead
83030300Ferrari Insulation Kit For HVAC Unit - 83030300$205.58Special order, ships in 7-14 days
291225Ferrari P clip Bracket With Sheath - 291225$7.86Special order, ships in 7-14 days
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
10860270Ferrari Screw Collar - 10860270$1.94Available, ships in 3-6 days
13127770Ferrari Screw Collar - 13127770$2.82Special order, ships in 7-14 days
262111Ferrari Screw Collar - 262111$3.03Special order, ships in 7-14 days
268210Ferrari Screw Collar - 268210$6.32Special order, ships in 7-14 days
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
10519401Ferrari Washer - 10519401SupersededOrder 10519424 instead
125516Ferrari Washer - 125516SupersededOrder 10519424 instead
186240500Ferrari Pipe From Compressor To Unde - 86240500$295.43Special order, ships in 7-14 days
286854500Ferrari Freon Return Pipe To Compres - 86854500$344.69Special order, ships in 7-14 days
313839624Ferrari Screw - 13839624$7.63Special order, ships in 7-14 days
488898300Ferrari Underbody Freon Delivery-Ret - 88898300$640.17Special order, ships in 7-14 days
5231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
6819306Ferrari Pipe From Hvac To Underbody - 819306$984.88Special order, ships in 7-14 days
688898700Ferrari Pipe From Hvac To Underbody - 88898700$763.27Special order, ships in 7-14 days
7308399Ferrari Spacer - 308399$12.86Special order, ships in 7-14 days
814040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
9225408Ferrari Cylindrical Bushing - 225408$12.99Special order, ships in 7-14 days
10262380Ferrari Clip - 262380$3.47Special order, ships in 7-14 days
1111625824Ferrari Screw 6x18 - 11625824$0.71Available, ships in 3-6 days
12263230Ferrari Clip - 263230$2.82Special order, ships in 7-14 days
1314040711Ferrari Nut M8 - 14040711$0.79Available, ships in 3-6 days
1410441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
1514305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
15231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
1613837017Ferrari Screw 6X30 - 13837017$7.19Special order, ships in 7-14 days
17785303Ferrari Pipe From Disconnector To Re - 785303$320.06Special order, ships in 7-14 days
1788898500Ferrari Pipe From Disconnector To Re - 88898500$270.83Special order, ships in 7-14 days
1884069800Ferrari Body Bracket Connection - 84069800$4.47Available, ships in 3-6 days
18255515Ferrari Zagato Seal - 255515$3.39Available, ships in 3-6 days
19262559Ferrari Clip - 262559$1.78Available, ships in 3-6 days
2011626124Ferrari Screw 6x25 - 11626124SupersededOrder 11612826 instead
2011612826Ferrari Screw M6 x 25 - 11612826$6.75Available, ships in 3-6 days
2167085100Ferrari/Maserati Dehydrating Filter - 67085100$73.54In stock
2282155900Ferrari Dehydrator Filter Bracket LHD - 82155900$71.38Special order, ships in 7-14 days
2282886600Ferrari Dehydrator Filter Bracket RHD - 82886600$88.61Special order, ships in 7-14 days
2386403000Ferrari Pipe From Filter To Hvac LHD - 86403000$714.03Special order, ships in 7-14 days
2386927400Ferrari Pipe From Filter To Hvac RHD - 86927400$837.14Special order, ships in 7-14 days
2414040611Ferrari Nut M6 - 14040611$0.57Available, ships in 3-6 days
2586228900Ferrari Rubber Pipe - 86228900$236.34Special order, ships in 7-14 days
26262109Ferrari Screw Collar - 262109$2.01Available, ships in 3-6 days
2786253700Ferrari Tubo H2O Sottop. Per Riscald - 86253700$344.69Special order, ships in 7-14 days
2886280800Ferrari Hose Union - 86280800$98.46Special order, ships in 7-14 days
29316986Ferrari Spacer - 316986$16.37Special order, ships in 7-14 days
3010860370Ferrari Screw Collar - 10860370$3.26Special order, ships in 7-14 days
3110441890Ferrari P Clip Bracket With Sheath D22 - 10441890$1.17Available, ships in 3-6 days
32178772Ferrari Stud - 178772$16.45Special order, ships in 7-14 days
3311625624Ferrari/Maserati Screw - 11625624$1.50In stock
34291645Ferrari Clip - 291645$8.07Special order, ships in 7-14 days
35291349Ferrari Idle Water Recirculation Pump - 291349$5,509.80Special order, ships in 7-14 days
3686051000Ferrari Recirculation Pump Mounting Bracket - 86051000$11.54Special order, ships in 7-14 days
3786280900Ferrari Hose Union LHD - 86280900$241.27Special order, ships in 7-14 days
3786928400Ferrari Hose Union RHD - 86928400$492.43Special order, ships in 7-14 days
38231214Ferrari Clip - 231214$2.82Special order, ships in 7-14 days
3982761900Ferrari RH TGK Valve Connector Pipe LHD - 82761900$177.25Special order, ships in 7-14 days
3982887200Ferrari RH TGK Valve Connector Pipe RHD - 82887200$517.04Special order, ships in 7-14 days
4082302700Ferrari LH TGK Valve Connector Pipe LHD - 82302700$108.31Special order, ships in 7-14 days
4082887300Ferrari LH TGK Valve Connector Pipe RHD - 82887300$295.43Special order, ships in 7-14 days
4183444200Ferrari Drip Baffle Ring - 83444200$6.61Special order, ships in 7-14 days
4282329900Ferrari Clip - 82329900$1.92Special order, ships in 7-14 days
4382328500Ferrari TGK VALVE BLOCK MOUNTING BRACKET - 82328500$44.29Special order, ships in 7-14 days
4483560800Ferrari Guard - 83560800$14.99Special order, ships in 7-14 days
4567444900Ferrari LH TGK Valve - 67444900$368.79Available, ships in 3-6 days
4667635900Ferrari/Maserati Right TGK Valve - 67635900$359.75In stock
47290953Ferrari Rigid TGK Valve Outlet Pipe - 290953$11.35Special order, ships in 7-14 days
48291115Ferrari Connector Pipe LHD - 291115$71.38Special order, ships in 7-14 days
4882887400Ferrari Connector Pipe RHD - 82887400$201.88Special order, ships in 7-14 days
49291116Ferrari Connector Pipe - 291116$59.07Special order, ships in 7-14 days
50162606Ferrari Clip - 162606$2.82Available, ships in 3-6 days
5182331800Ferrari Rubber Spacer Button - 82331800$5.39Special order, ships in 7-14 days
52174623Ferrari Buffer For Support - 174623$19.42Special order, ships in 7-14 days
5314059211Ferrari Flanged Nut - 14059211$0.13Available, ships in 3-6 days
5413550201Ferrari Washer - 13550201SupersededOrder 10519424 instead
5410519424Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424$0.06Available, ships in 3-6 days
55175871Ferrari Clip - 175871SupersededOrder 204781 instead
56161490Ferrari Hose Clip 12 - 20 x 9 - 161490$3.91Available, ships in 3-6 days
57266156Ferrari Clip - 266156$1.28Special order, ships in 7-14 days
58177553Ferrari Clamp - 177553$0.84Available, ships in 3-6 days
59270085Ferrari Clip - 270085$3.68Available, ships in 3-6 days
6082923400Ferrari Air Con Mobile Duct Insulation Kit LHD - 82923400$174.80Special order, ships in 7-14 days
6083030200Ferrari Air Con Mobile Duct Insulation Kit RHD - 83030200$270.83Special order, ships in 7-14 days
6182923500Ferrari HVAC Unit Insulation Kit - 82923500$182.18Special order, ships in 7-14 days
6285180600Ferrari Zagato Seal - 85180600$3.26Special order, ships in 7-14 days
6384058400Ferrari LH TGK Valve Mounting Bracket - 84058400$194.48Special order, ships in 7-14 days
6483689600Ferrari Water Pipe Rubber Guard - 83689600$27.06Special order, ships in 7-14 days
6583413300Ferrari RH TGK Valve Mounting Bracket - 83413300$59.07Special order, ships in 7-14 days
66241708Ferrari Clip - 241708$5.04Special order, ships in 7-14 days
6783689500Ferrari Water Pipe Rubber Guard - 83689500$29.52Special order, ships in 7-14 days
68292980Ferrari Screw Collar - 292980$3.47Special order, ships in 7-14 days
6910442290Ferrari P Clip Bracket With Sheath - 10442290$1.42Special order, ships in 7-14 days
7010318884Ferrari Gasket - 10318884$10.46Special order, ships in 7-14 days
7114450484Ferrari Gasket - 14450484$10.48Special order, ships in 7-14 days
7211342484Ferrari Gasket - 11342484$10.46Special order, ships in 7-14 days
7314453084Ferrari Gasket - 14453084$4.14Special order, ships in 7-14 days
7411342784Ferrari Washer 3/4" - 11342784$19.42Available, ships in 3-6 days
7514450684Ferrari Gasket - 14450684$20.55Special order, ships in 7-14 days
7714453284Ferrari Gasket - 14453284$20.55Available, ships in 3-6 days
7814452884Ferrari Gasket - 14452884$34.94Special order, ships in 7-14 days
