Ferrari F80 — [ENGINE] - B.1 - CRANKCASE (diagram 0004)

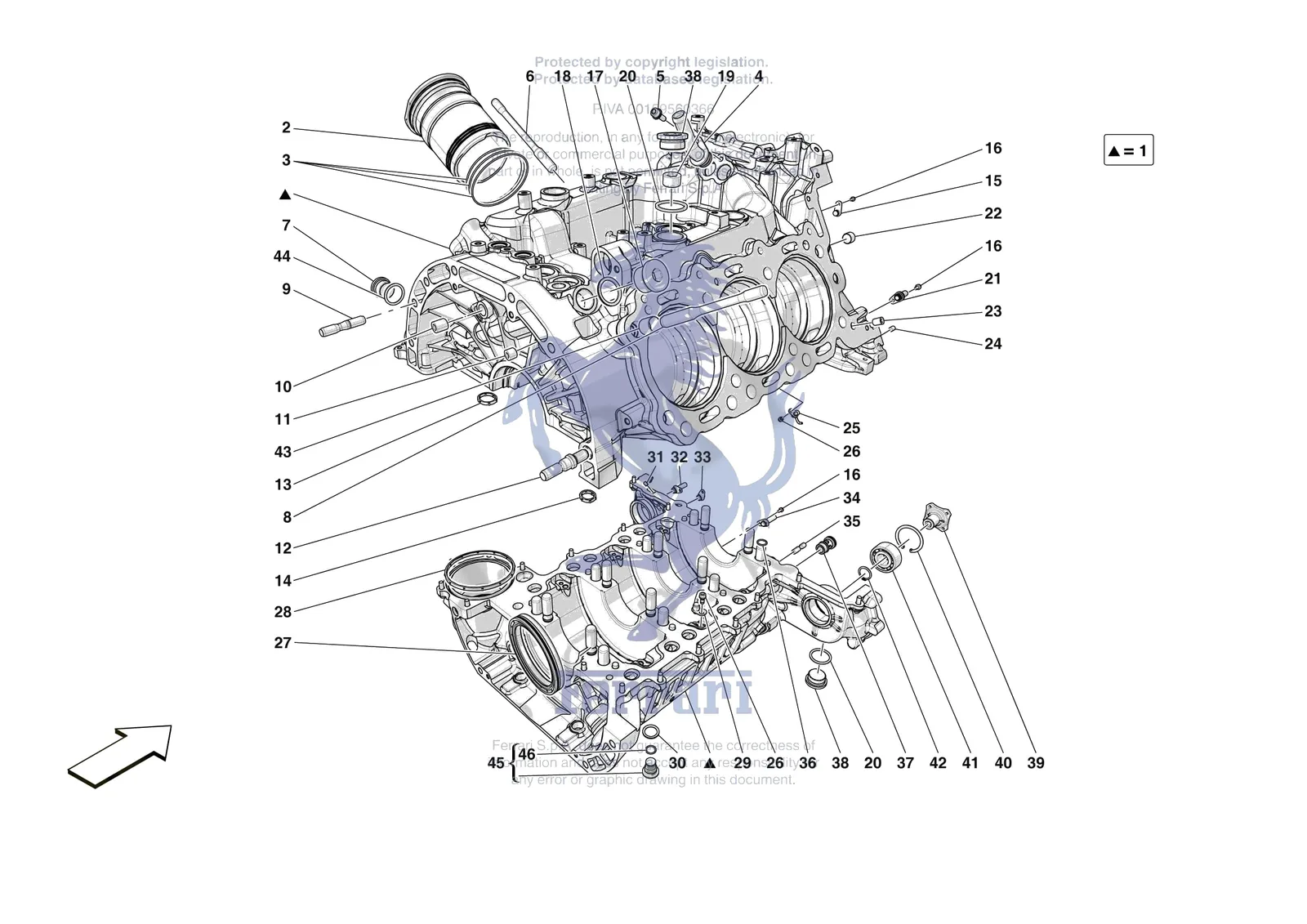

Exploded view of the [engine] - b.1 - crankcase on the Ferrari F80, with 56 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari F80 [ENGINE] - B.1 - CRANKCASE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
985326Ferrari O-Ring - 985326$13.95Special order, ships in 7-14 days
242269Ferrari Rear Main Oil Seal - 242269$104.41Available, ships in 3-6 days
300499Ferrari Screw - 300499$1.44Special order, ships in 7-14 days
231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
11066875Ferrari Snap Ring - 11066875SupersededOrder 11066876 instead
183447Ferrari Threaded Plug - 183447$18.48Available, ships in 3-6 days
194490Ferrari Threaded Plug - 194490SupersededOrder 164400 instead
2946204Ferrari Cylinder Sleeve - 946204$1,871.30Special order, ships in 7-14 days
3811505Ferrari Guarnizione O-Ring (90 X 2) - 811505$8.05Special order, ships in 7-14 days
4789258Ferrari Pump Fitting - 789258$393.93Special order, ships in 7-14 days
5248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
6935820Ferrari Stud Bolt - 935820$49.14Special order, ships in 7-14 days
7216672Ferrari Threaded Plug - 216672$21.43Special order, ships in 7-14 days
8935819Ferrari Stud Bolt - 935819$44.24Special order, ships in 7-14 days
9898343Ferrari STUD BOLT - 898343Price on requestContact us for price and availability
1014324811Ferrari Threaded Plug - 14324811$10.68Special order, ships in 7-14 days
1110266901Ferrari Threaded Plug - 10266901$1.48Special order, ships in 7-14 days
12898342Ferrari STUD BOLT - 898342Price on requestContact us for price and availability
13981857Ferrari GUARNIZIONE CANALI OLIO BAS - 981857$20.66Special order, ships in 7-14 days
14809198Ferrari Gasket - 809198$8.34Special order, ships in 7-14 days
15884307Ferrari Plug - 884307$344.69Special order, ships in 7-14 days
16315493Ferrari Screw - 315493$2.13Special order, ships in 7-14 days
17307477Ferrari/Maserati Crankcase Threaded Plug - 307477$5.35In stock
1810263460Ferrari/Maserati Copper Washer - 10263460$1.93In stock
19127635Ferrari Threaded Plug M18 x 11 x 1.5 - 127635$6.75Available, ships in 3-6 days
2010262160Ferrari Gasket - 10262160$3.03Special order, ships in 7-14 days
21829568Ferrari Chain Cooling Nozzle Assembl - 829568$93.40Special order, ships in 7-14 days
22164400Ferrari Threaded Plug - 164400$6.96Special order, ships in 7-14 days
2314326101Ferrari Threaded Connector - 14326101$2.38Special order, ships in 7-14 days
24175611Ferrari Centering Dowel - 175611$3.26Available, ships in 3-6 days
25982569Ferrari ASSIEME SALD.UGELLO RAFF.PISTONE SCA DX - 982569$443.17Special order, ships in 7-14 days
25982571Ferrari ASSIEME SALD.UGELLO RAFF.PISTONE SCA SX - 982571$443.17Special order, ships in 7-14 days
26750423Ferrari SCREW - 750423Price on requestContact us for price and availability
27240214Ferrari/Maserati Rear Main Crankshaft Oil Seal - 240214SupersededOrder 242269 instead
28939107Ferrari Oil Filter Gasket - 939107$24.02Special order, ships in 7-14 days
29982567Ferrari ASSIEME SALD.UGELLO RAFF.PISTONE ASP DX - 982567$443.17Special order, ships in 7-14 days
29982568Ferrari ASSIEME SALD.UGELLO RAFF.PISTONE ASP SX - 982568$443.17Special order, ships in 7-14 days
3010259960Ferrari Copper Washer - 10259960$1.21In stock
31971654Ferrari Threaded Plug - 971654$13.55Special order, ships in 7-14 days
32874204Ferrari Nozzle For Gear - 874204$214.19Special order, ships in 7-14 days
33874995Ferrari Nozzle For Bearing On Gear - 874995$214.19Special order, ships in 7-14 days
34871306Ferrari Nozzle For Dual Gear - 871306$214.19Special order, ships in 7-14 days
35911391Ferrari Pin - 911391$13.74Special order, ships in 7-14 days
36803790Ferrari O-Ring - 803790$0.92Special order, ships in 7-14 days
37835895Ferrari Plug - 835895$49.14Special order, ships in 7-14 days
38216674Ferrari Threaded Plug - 216674$21.43Special order, ships in 7-14 days
39796215Ferrari Drive Joint - 796215$663.86Special order, ships in 7-14 days
4011060276Ferrari Circlip - 11060276$0.92Available, ships in 3-6 days
41247049Ferrari Bearing - 247049$87.40Special order, ships in 7-14 days
4211066876Ferrari Circlip 20E - 11066876$0.13Available, ships in 3-6 days
43185360Ferrari Centering Dowel - 185360$5.44Special order, ships in 7-14 days
4410261960Ferrari GUARNIZIONE D. 24 -30X 1.5 - 10261960$4.91Special order, ships in 7-14 days
45216676Ferrari PLUG - 216676$21.08Special order, ships in 7-14 days
4614453181Ferrari Oring Seal - 14453181$2.01Available, ships in 3-6 days
