Ferrari F80 — [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD (diagram 0012)
Exploded view of the [engine] - b.08.02 - cylinder heads - lh head on the Ferrari F80, with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

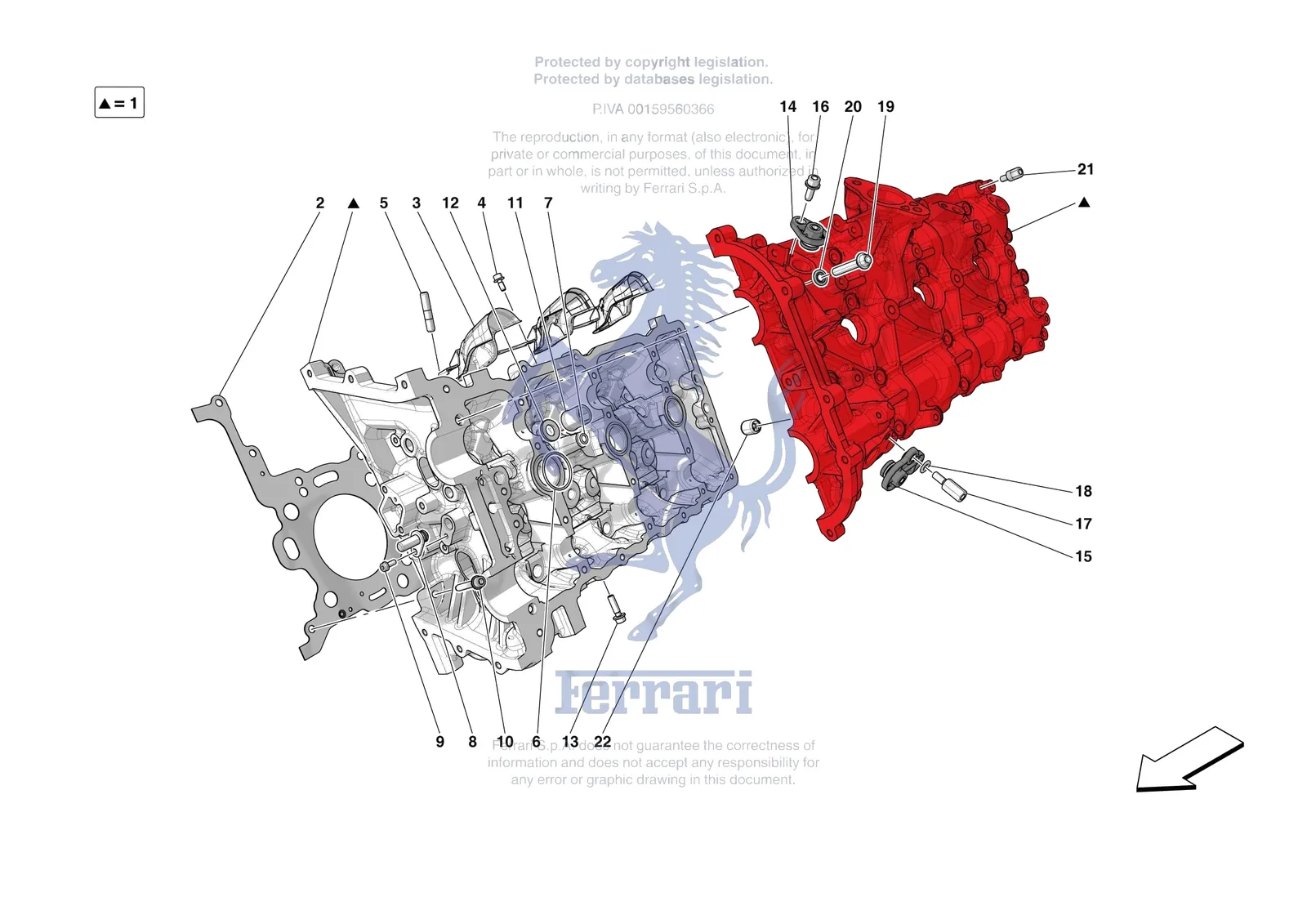

![Ferrari F80 [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0012.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 745652 | Ferrari LH Cylinder Bank Coil Shield - 745652 | $368.79 | Special order, ships in 7-14 days | |
| 300499 | Ferrari Screw - 300499 | $1.44 | Special order, ships in 7-14 days | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 11197779 | Ferrari Washer - 11197779 | Superseded | Order 11197774 instead | |
| 2 | 968579 | Ferrari LH Head Gasket - 968579 | $541.67 | Special order, ships in 7-14 days |
| 3 | 55005786 | Ferrari LH Cylinder Bank Coil Shield - 55005786 | $368.79 | Special order, ships in 7-14 days |
| 4 | 797723 | Ferrari Screw - 797723 | $0.86 | Special order, ships in 7-14 days |
| 5 | 935821 | Ferrari Stud Bolt - 935821 | $5.63 | Special order, ships in 7-14 days |
| 6 | 14454381 | Ferrari O-Ring Seal - 14454381 | $2.59 | Special order, ships in 7-14 days |
| 7 | 14450581 | Ferrari Gasket - 14450581 | $7.19 | Special order, ships in 7-14 days |
| 8 | 829568 | Ferrari Chain Cooling Nozzle Assembl - 829568 | $93.40 | Special order, ships in 7-14 days |
| 9 | 315493 | Ferrari Screw - 315493 | $2.13 | Special order, ships in 7-14 days |
| 10 | 231622 | Ferrari Screw M6 x 35 - 231622 | $0.65 | Available, ships in 3-6 days |
| 11 | 271125 | Ferrari Cylinder Head Nut - 271125 | $14.39 | Available, ships in 3-6 days |
| 12 | 271129 | Ferrari Washer - 271129 | $2.38 | Available, ships in 3-6 days |
| 13 | 226900 | Ferrari SCREW - 226900 | Price on request | Contact us for price and availability |
| 14 | 899147 | Ferrari Plug - 899147 | $15.05 | Special order, ships in 7-14 days |
| 15 | 899222 | Ferrari Plug - 899222 | $18.11 | Special order, ships in 7-14 days |
| 16 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 17 | 784976 | Ferrari Stud Bolt - 784976 | $68.92 | Special order, ships in 7-14 days |
| 18 | 11197774 | Ferrari Conic Washer 6.4x12x1.2 - 11197774 | $0.12 | Available, ships in 3-6 days |
| 19 | 226902 | Ferrari SCREW - 226902 | Price on request | Contact us for price and availability |
| 20 | 296075 | Ferrari Washer - 296075 | $2.38 | Available, ships in 3-6 days |
| 21 | 814799 | Ferrari Stud Bolt - 814799 | $16.94 | Special order, ships in 7-14 days |
| 22 | 342272 | Ferrari Non Return Valve - 342272 | $20.37 | Special order, ships in 7-14 days |
