Ferrari F80 — [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM (diagram 0039)

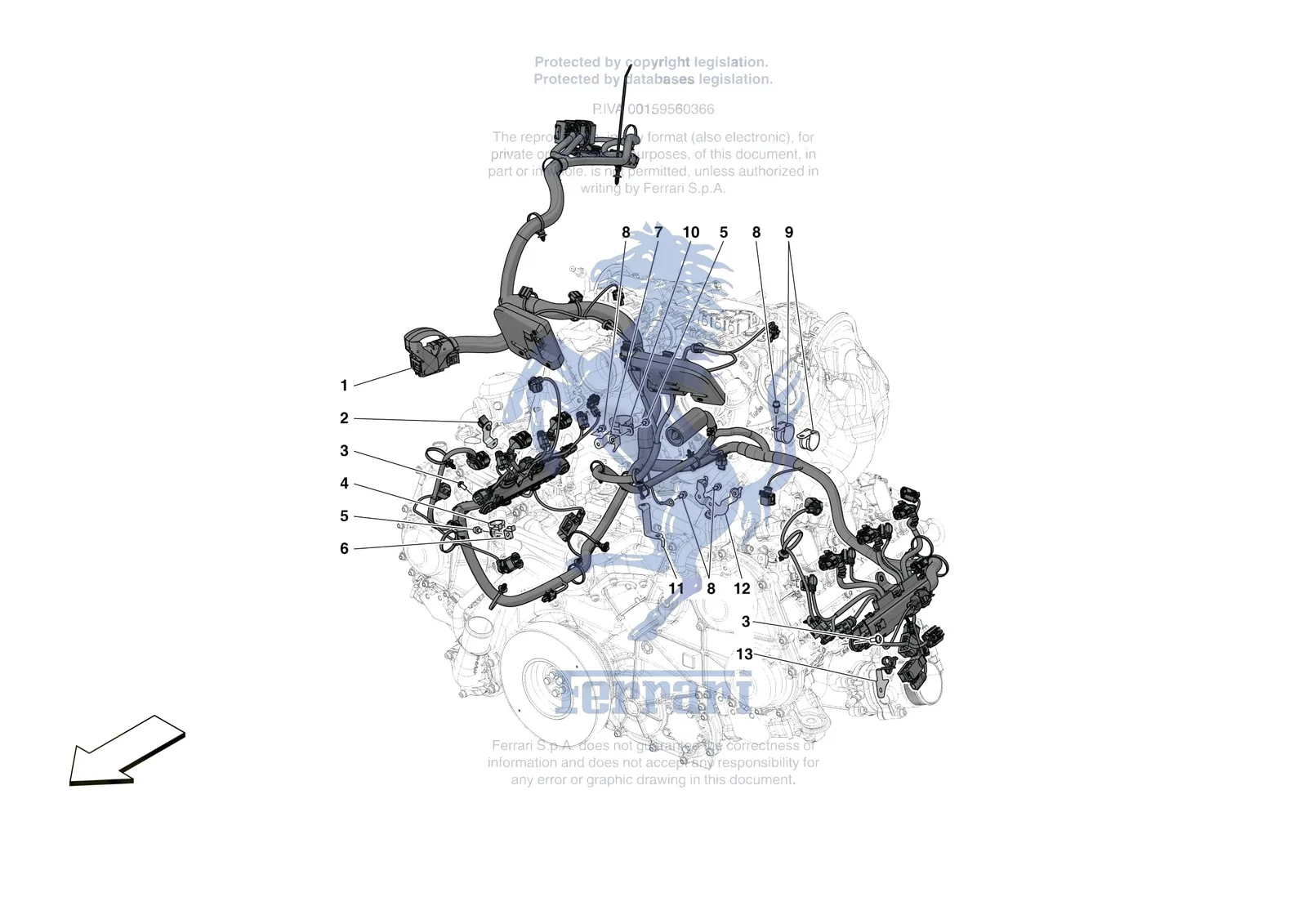

Exploded view of the [engine] - b.34 - engine electrical system on the Ferrari F80, with 17 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0039.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 291225 | Ferrari P clip Bracket With Sheath - 291225 | $7.86 | Special order, ships in 7-14 days | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 1 | 55045739 | Ferrari Injection Cable - 55045739 | $8,202.84 | Special order, ships in 7-14 days |
| 2 | 913517 | Ferrari CPL. BRACKET ON THROTTLE BODY - 913517 | Price on request | Contact us for price and availability |
| 3 | 306938 | Ferrari Screw - 306938 | $0.82 | Special order, ships in 7-14 days |
| 4 | 10441890 | Ferrari P Clip Bracket With Sheath D22 - 10441890 | $1.17 | Available, ships in 3-6 days |
| 5 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 6 | 956549 | Ferrari ANTI-ROTATION BRACKET - 956549 | Price on request | Contact us for price and availability |
| 7 | 950267 | Ferrari INJECTION CABLE MOUNTING BRACKET ON SECONDARY AIR PIPE - 950267 | Price on request | Contact us for price and availability |
| 8 | 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days |
| 8 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 9 | 10442290 | Ferrari P Clip Bracket With Sheath - 10442290 | $1.42 | Special order, ships in 7-14 days |
| 10 | 323137 | Ferrari Bracket With Sheath - 323137 | $46.69 | Special order, ships in 7-14 days |
| 11 | 55022043 | Ferrari CENTRE TURBO INJECTION CABLE MOUNTING BRACKET - 55022043 | Price on request | Contact us for price and availability |
| 12 | 55013311 | Ferrari RH HEAD INJECTION CABLE BRACKET - 55013311 | Price on request | Contact us for price and availability |
| 13 | 913534 | Ferrari CPL. BRACKET ON THROTTLE BODY - 913534 | Price on request | Contact us for price and availability |
