Ferrari F80 — [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES (diagram 0050)

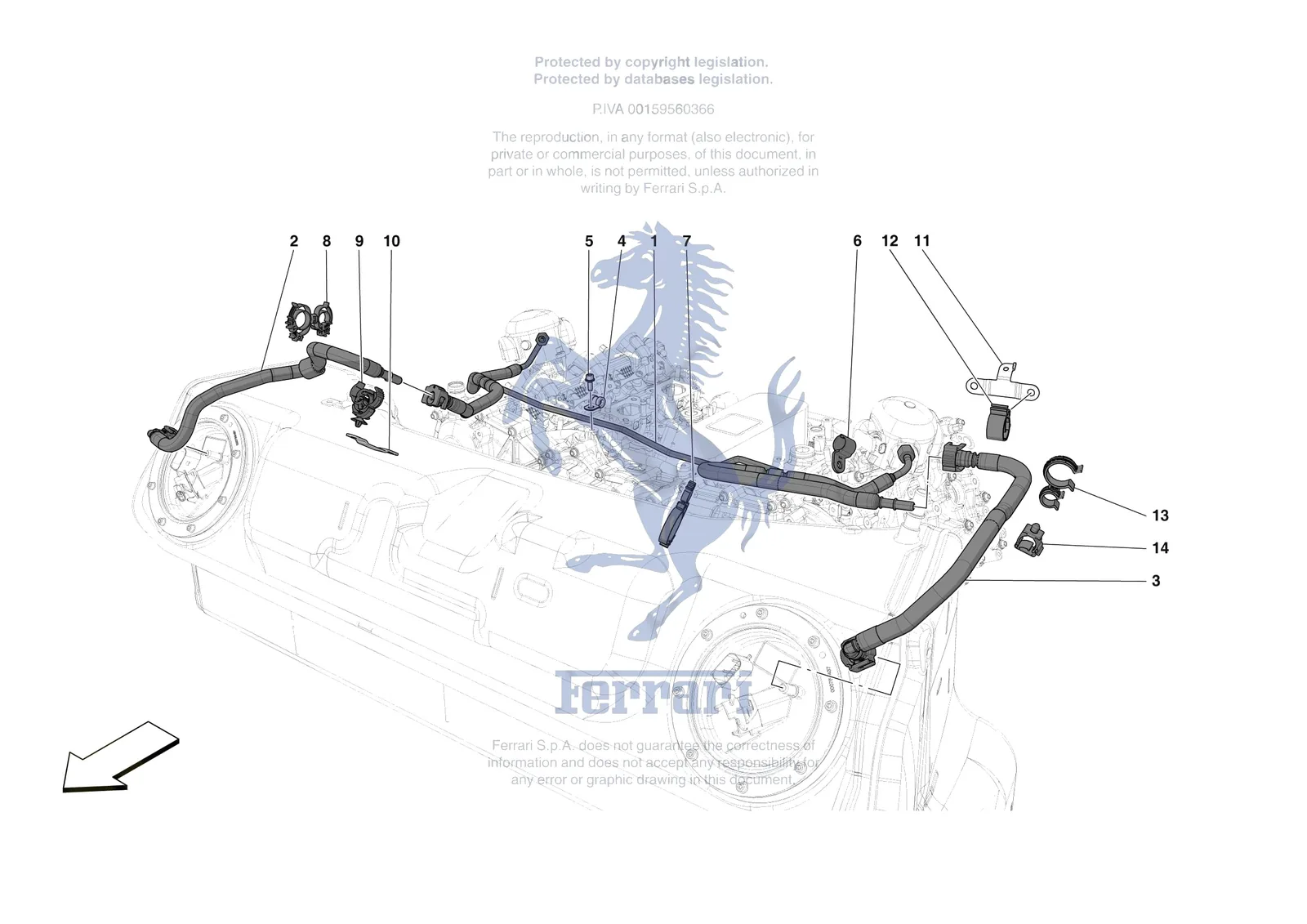

Exploded view of the [mechanical system] - d.2 - engine fuel delivery pipes on the Ferrari F80, with 18 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0050.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 293146 | Ferrari Clip - 293146 | $2.09 | Special order, ships in 7-14 days | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 1 | 994071 | Ferrari TUBO MANDATA BENZINA SU MOTORE - 994071 | $1,772.80 | Special order, ships in 7-14 days |
| 2 | 994084 | Ferrari TUBO MANDATA BENZINA DX - 994084 | $320.06 | Special order, ships in 7-14 days |
| 3 | 994058 | Ferrari TUBO MANDATA BENZINA SX - 994058 | $243.74 | Special order, ships in 7-14 days |
| 4 | 10441190 | Ferrari P clip Bracket With Sheath D8mm - 10441190 | $0.90 | Available, ships in 3-6 days |
| 5 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 6 | 244221 | Ferrari Clip - 244221 | $8.28 | Available, ships in 3-6 days |
| 7 | 85141400 | Ferrari Clip - 85141400 | $1.36 | Special order, ships in 7-14 days |
| 8 | 159918 | Ferrari Clip Set - 159918 | $1.84 | Special order, ships in 7-14 days |
| 9 | 55034974 | Ferrari CLIP - 55034974 | Price on request | Contact us for price and availability |
| 10 | 55039667 | Ferrari RH PLATE - 55039667 | Price on request | Contact us for price and availability |
| 11 | 55012054 | Ferrari LH PLATE - 55012054 | Price on request | Contact us for price and availability |
| 12 | 259508 | Ferrari Clip 15.8mm-18.5mm - 259508 | $1.25 | Special order, ships in 7-14 days |
| 13 | 82051200 | Ferrari Clip - 82051200 | $1.69 | Special order, ships in 7-14 days |
| 14 | 257273 | Ferrari Clip D. 14-16 - 257273 | $2.59 | Special order, ships in 7-14 days |
