Ferrari F80 — [MECHANICAL SYSTEM] - D.04.02 - INTERCOOLER (diagram 0053)

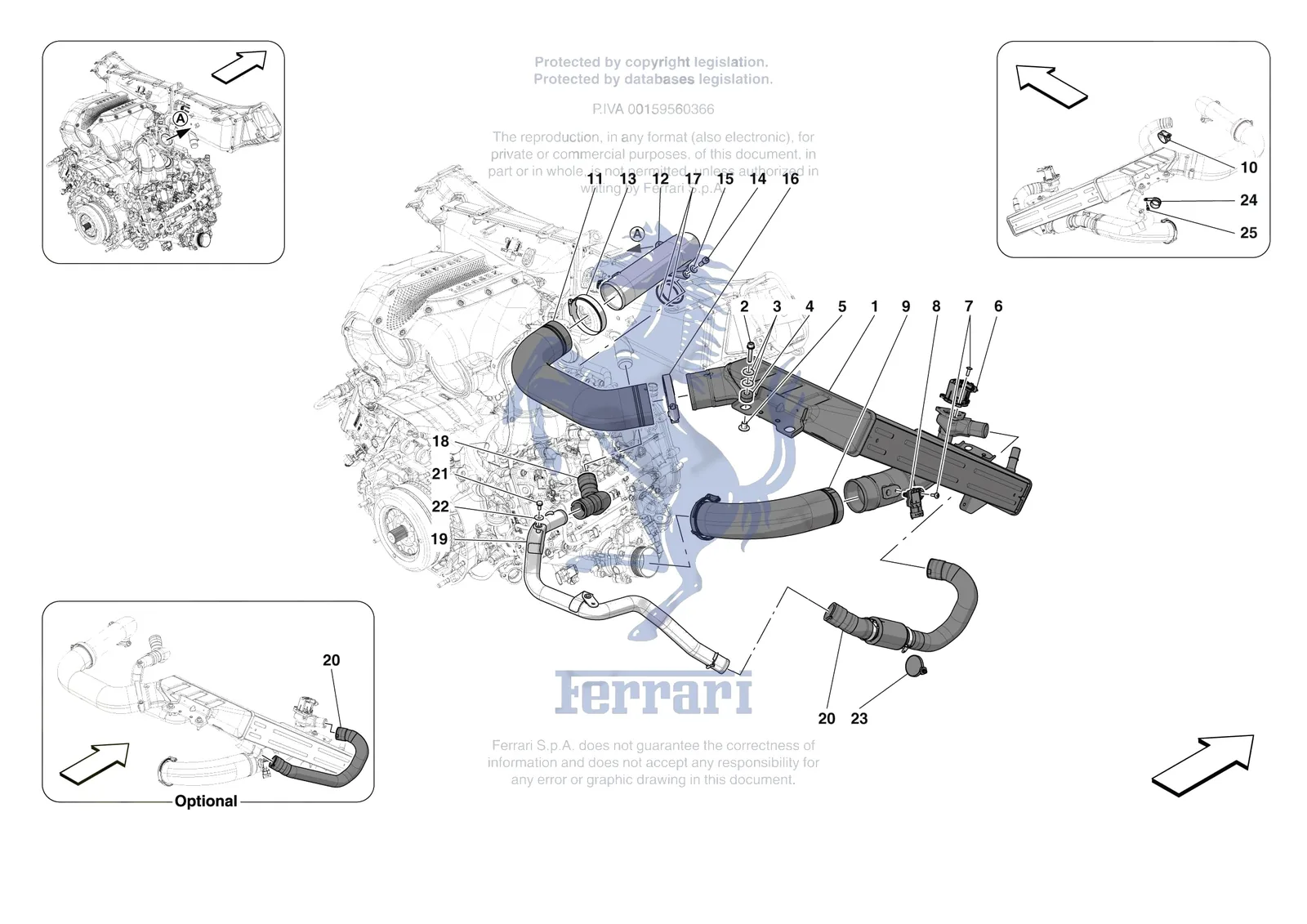

Exploded view of the [mechanical system] - d.04.02 - intercooler on the Ferrari F80, with 41 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [MECHANICAL SYSTEM] - D.04.02 - INTERCOOLER exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0053.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 216568 | Ferrari Screw 6x30 - 216568 | Superseded | Order 231621 instead | |
| 12643707 | Ferrari Washer - 12643707 | Superseded | Order 12643778 instead | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 12643777 | Ferrari Washer - 12643777 | Superseded | Order 12643778 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 801072 | Ferrari LH Intercooler - 801072 | $5,878.93 | Special order, ships in 7-14 days |
| 1 | 801067 | Ferrari RH Intercooler - 801067 | $5,878.93 | Special order, ships in 7-14 days |
| 2 | 231621 | Ferrari Allen Screw M6 x 30 TCEI - 231621 | $0.73 | Available, ships in 3-6 days |
| 3 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 4 | 812273 | Ferrari Cable Grommet D. 9 x 25 - 812273 | $3.47 | Special order, ships in 7-14 days |
| 5 | 149707 | Ferrari Spacer - 149707 | $2.13 | Available, ships in 3-6 days |
| 6 | 315495 | Ferrari Dump-Valve - 315495 | $295.03 | Available, ships in 3-6 days |
| 7 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 8 | 835465 | Ferrari Pressure And Temperature Sen - 835465 | $83.03 | Special order, ships in 7-14 days |
| 9 | 55005254 | Ferrari Compl. LH Cold High Pressure - 55005254 | $517.04 | Special order, ships in 7-14 days |
| 9 | 55005252 | Ferrari Compl. RH Cold High Pressure - 55005252 | $517.04 | Special order, ships in 7-14 days |
| 10 | 10448890 | Ferrari Bracket With Sheath - 10448890 | $4.16 | Available, ships in 3-6 days |
| 11 | 55049550 | Ferrari LH Hot High Pressure Hose - 55049550 | $837.14 | Special order, ships in 7-14 days |
| 11 | 55049551 | Ferrari RH Hot High Pressure Hose - 55049551 | $837.14 | Special order, ships in 7-14 days |
| 12 | 55012844 | Ferrari LH Hot High Pressure Pipe - 55012844 | $886.38 | Special order, ships in 7-14 days |
| 12 | 55012843 | Ferrari RH Hot High Pressure Pipe - 55012843 | $886.38 | Special order, ships in 7-14 days |
| 13 | 217413 | Ferrari SCREW COLLAR - 217413 | Price on request | Contact us for price and availability |
| 14 | 202483 | Ferrari SCREW - 202483 | Price on request | Contact us for price and availability |
| 15 | 202480 | Ferrari WASHER - 202480 | Price on request | Contact us for price and availability |
| 16 | 297576 | Ferrari Collar - 297576 | $12.44 | Special order, ships in 7-14 days |
| 17 | 911031 | Ferrari O-Ring - 911031 | $13.97 | Special order, ships in 7-14 days |
| 18 | 987571 | Ferrari TUBO SUPERIORE DV DX - 987571 | $295.43 | Special order, ships in 7-14 days |
| 18 | 987572 | Ferrari TUBO SUPERIORE DV SX - 987572 | $295.43 | Special order, ships in 7-14 days |
| 19 | 822478 | Ferrari LH Dump Valve Rigid Pipe - 822478 | $615.54 | Special order, ships in 7-14 days |
| 19 | 822475 | Ferrari RH Dump Valve Rigid Pipe - 822475 | $787.90 | Special order, ships in 7-14 days |
| 20 | 987924 | Ferrari TUBAZIONE DUMP VALVE CPL SX - 987924 | $886.38 | Special order, ships in 7-14 days |
| 20 | 987923 | Ferrari TUBAZIONE DUMP VALVE DX CPL - 987923 | $886.38 | Special order, ships in 7-14 days |
| 21 | 11628424 | Ferrari Screw 6X14 - 11628424 | $1.28 | Special order, ships in 7-14 days |
| 22 | 12643778 | Ferrari Washer 6-18 x 1.5 - 12643778 | $0.54 | Available, ships in 3-6 days |
| 23 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 24 | 309169 | Ferrari Bracket With Sheath - 309169 | $29.48 | Special order, ships in 7-14 days |
| 25 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
