Ferrari F80 — [MECHANICAL SYSTEM] - D.08.02 - EXHAUST SYSTEM - REAR (diagram 0058)

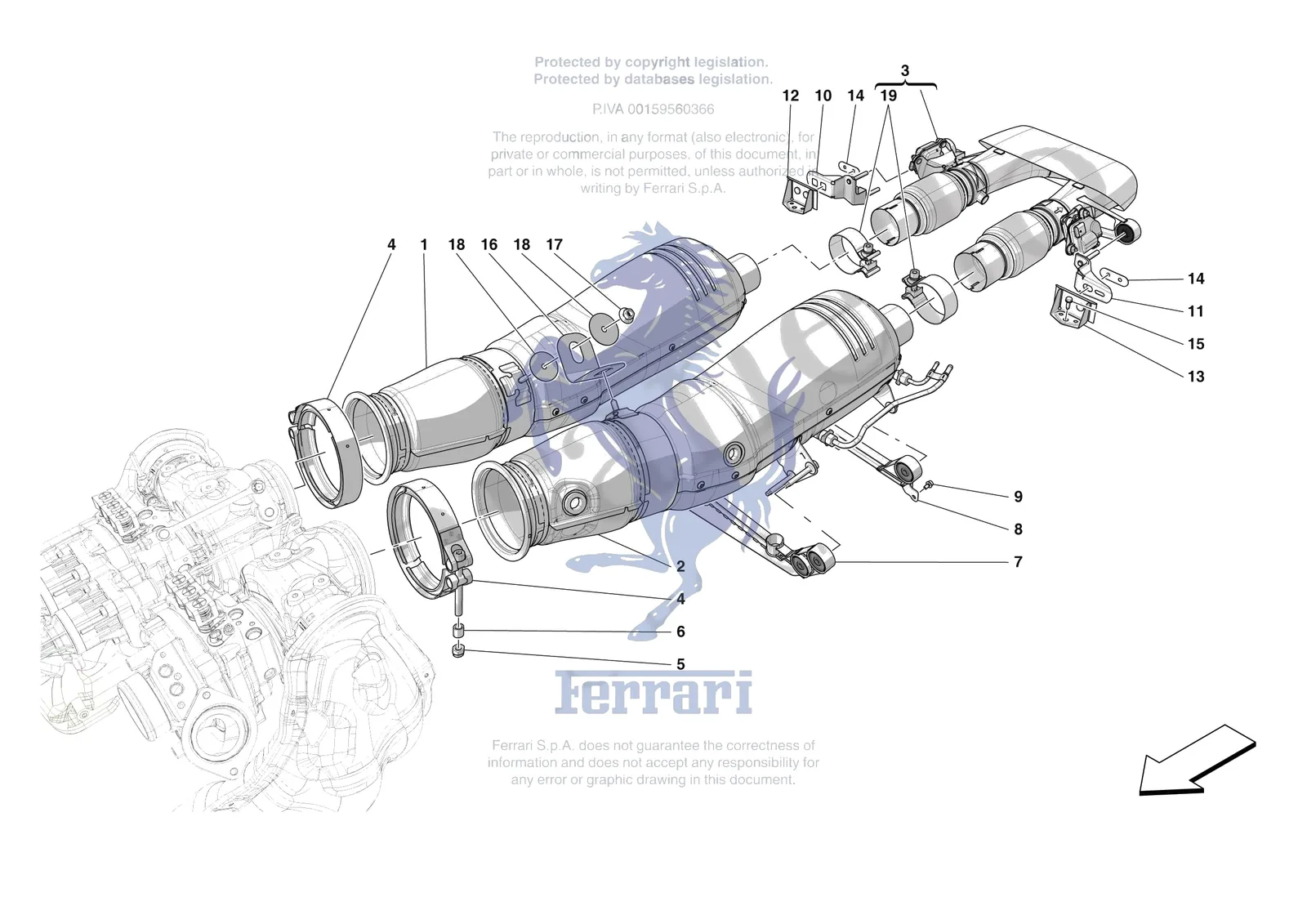

Exploded view of the [mechanical system] - d.08.02 - exhaust system - rear on the Ferrari F80, with 21 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [MECHANICAL SYSTEM] - D.08.02 - EXHAUST SYSTEM - REAR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0058.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 1 | 55059803 | Ferrari COMPL. RH EXHAUST - 55059803 | Price on request | Contact us for price and availability |
| 2 | 55059804 | Ferrari COMPL. LH EXHAUST - 55059804 | Price on request | Contact us for price and availability |
| 4 | 290743 | Ferrari V-Clamp For Fastening Catalytic Converter to Manifold - 290743 | $164.72 | Special order, ships in 7-14 days |
| 5 | 292945 | Ferrari Nut M8 x 1.25 - 292945 | $28.39 | Special order, ships in 7-14 days |
| 6 | 292946 | Ferrari 812/F12 Exhaust Clamp Shim/Spacer - 292946 | $9.75 | In stock |
| 7 | 55057144 | Ferrari COMPL. INTERMEDIATE EXHAUST MOUNT - 55057144 | Price on request | Contact us for price and availability |
| 8 | 55057146 | Ferrari COMPL. REAR EXHAUST MOUNT - 55057146 | Price on request | Contact us for price and availability |
| 9 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 10 | 957050 | Ferrari RH BRACKET - 957050 | Price on request | Contact us for price and availability |
| 11 | 956988 | Ferrari LH BRACKET - 956988 | Price on request | Contact us for price and availability |
| 12 | 55010242 | Ferrari RH BRACKET - 55010242 | Price on request | Contact us for price and availability |
| 13 | 55010243 | Ferrari LH BRACKET - 55010243 | Price on request | Contact us for price and availability |
| 14 | 956986 | Ferrari PLATE - 956986 | Price on request | Contact us for price and availability |
| 15 | 11585024 | Ferrari Screw 6X20 - 11585024 | $0.63 | Available, ships in 3-6 days |
| 16 | 956392 | Ferrari BRACKET BETWEEN EXHAUST BANK SECTIONS - 956392 | Price on request | Contact us for price and availability |
| 17 | 14039714 | Ferrari Nut - 14039714 | $0.54 | Available, ships in 3-6 days |
| 18 | 956386 | Ferrari PLATE - 956386 | Price on request | Contact us for price and availability |
| 19 | 931307167 | Ferrari CLAMP - 931307167 | $128.34 | Special order, ships in 7-14 days |
