Ferrari F80 — [MECHANICAL SYSTEM] - D.9 - ENGINE OIL RADIATOR AND TANK (diagram 0059)

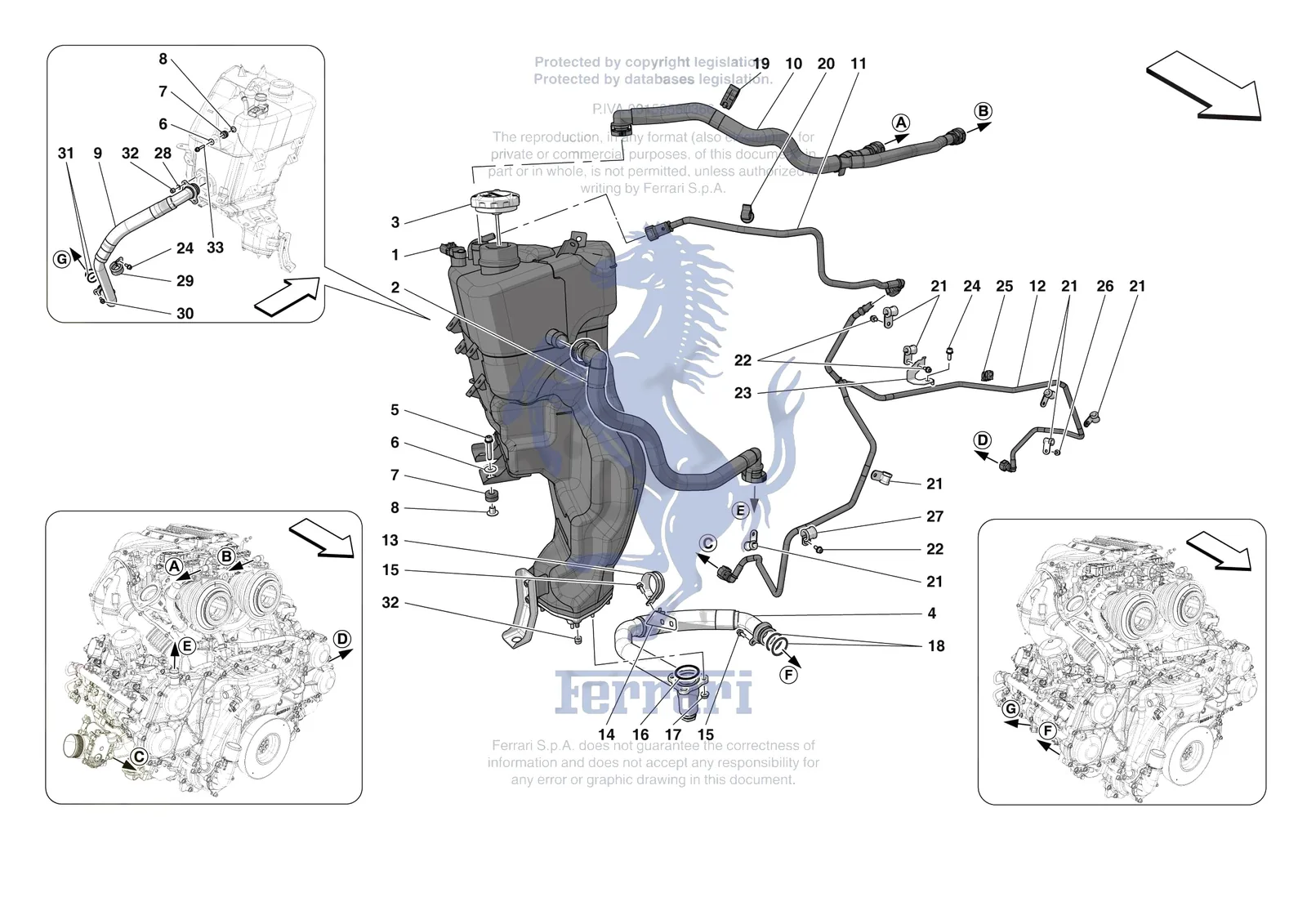

Exploded view of the [mechanical system] - d.9 - engine oil radiator and tank on the Ferrari F80, with 49 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari F80 [MECHANICAL SYSTEM] - D.9 - ENGINE OIL RADIATOR AND TANK exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
103373Ferrari Nut - 103373SupersededOrder 102948 instead
12774221Ferrari Nut - 12774221SupersededOrder 102948 instead
125519Ferrari Nyloc Nut - 125519SupersededOrder 102948 instead
12574221Ferrari Nyloc Nut - 12574221SupersededOrder 102948 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
216568Ferrari Screw 6x30 - 216568SupersededOrder 231621 instead
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
12643707Ferrari Washer - 12643707SupersededOrder 12643778 instead
12643777Ferrari Washer - 12643777SupersededOrder 12643778 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead
155044249Ferrari COMPL. ENGINE OIL TANK - 55044249Price on requestContact us for price and availability
2965888Ferrari Pipe From Oil Tank - 965888$236.34Special order, ships in 7-14 days
3976866Ferrari TAPPO CPL DI ASTA - 976866$861.77Special order, ships in 7-14 days
4974946Ferrari Oil Delivery Pipe - 974946$2,588.87Special order, ships in 7-14 days
5231622Ferrari Screw M6 x 35 - 231622$0.65Available, ships in 3-6 days
612643778Ferrari Washer 6-18 x 1.5 - 12643778$0.54Available, ships in 3-6 days
7103549Ferrari Grommet - 103549$2.80In stock
8149707Ferrari Spacer - 149707$2.13Available, ships in 3-6 days
9956191Ferrari Oil Return Pipe - 956191$1,625.07Special order, ships in 7-14 days
10951611Ferrari Pipe From Oil Tank To Filter - 951611$886.38Special order, ships in 7-14 days
11951612Ferrari Pipe From Oil Tank To Upper - 951612$295.43Special order, ships in 7-14 days
12951613Ferrari Pipe From Oil Tank To Plenum - 951613$492.43Special order, ships in 7-14 days
13974899Ferrari Bracket With Sheath - 974899$41.82Special order, ships in 7-14 days
14974974Ferrari OIL DELIVERY PIPE BRACKET - 974974Price on requestContact us for price and availability
15231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
16862084Ferrari Gasket - 862084$7.84Available, ships in 3-6 days
1712578011Ferrari Flanged Nyloc Nut - 12578011$0.31Available, ships in 3-6 days
18103021Ferrari O Ring-103021$3.51In stock
1982051100Ferrari Clip - 82051100$1.82Available, ships in 3-6 days
20250318Ferrari Clip - 250318$0.50Special order, ships in 7-14 days
21868624Ferrari Bracket - 868624$5.14Special order, ships in 7-14 days
22797723Ferrari Screw - 797723$0.86Special order, ships in 7-14 days
23816728Ferrari PIPE BRACKET ON ENGINE - 816728Price on requestContact us for price and availability
24248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
25162341Ferrari Clip - 162341$1.65Special order, ships in 7-14 days
26233600Ferrari/Maserati Screw - 233600$1.98In stock
2710441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
2812601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
2910442190Ferrari P Clip Bracket With Sheath - 10442190$1.42Available, ships in 3-6 days
30231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
31139934Ferrari Radiator Tank Pipe to Oil Tank O-Ring - 139934$2.15In stock
32102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
33231621Ferrari Allen Screw M6 x 30 TCEI - 231621$0.73Available, ships in 3-6 days

All F80 diagrams
