Ferrari F80 — [MECHANICAL SYSTEM] - D.27.01 - REAR SUSPENSION - SHOCK ABSORBERS (diagram 0081)

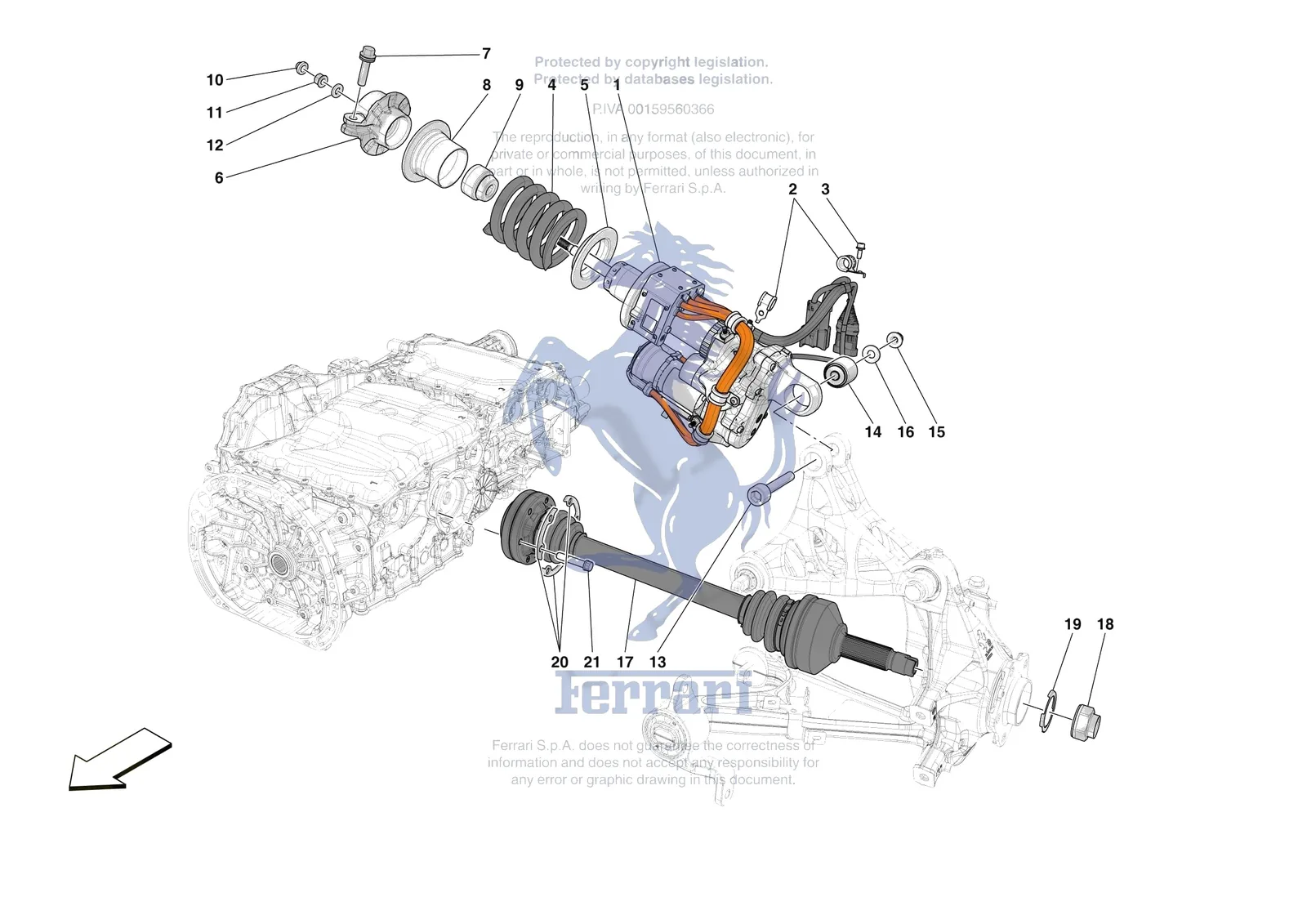

Exploded view of the [mechanical system] - d.27.01 - rear suspension - shock absorbers on the Ferrari F80, with 28 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [MECHANICAL SYSTEM] - D.27.01 - REAR SUSPENSION - SHOCK ABSORBERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0081.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 187814 | Ferrari Hub Nut - 187814 | Superseded | Order 203780 instead | |
| 749878 | Ferrari Nut - 749878 | Superseded | Order 220378 instead | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 1 | 999752 | Ferrari LH REAR SHOCK ABSORBER - 999752 | Price on request | Contact us for price and availability |
| 1 | 999753 | Ferrari RH REAR SHOCK ABSORBER - 999753 | Price on request | Contact us for price and availability |
| 2 | 912852 | Ferrari Bracket - 912852 | $31.93 | Special order, ships in 7-14 days |
| 3 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 4 | 958540 | Ferrari Spring - 958540 | $10,702.61 | Contact us to order |
| 5 | 293648 | Ferrari Lower Spring Spacer D.78-1 - 293648 | $15.28 | Special order, ships in 7-14 days |
| 6 | 340250 | Ferrari Compl. Shock Absorber Retainer Cap - 340250 | $393.38 | Special order, ships in 7-14 days |
| 7 | 248790 | Ferrari Screw M12 x 1.25 x 50 - 248790 | $7.63 | Available, ships in 3-6 days |
| 8 | 293649 | Ferrari Upper Spring Spacer Rubber - 293649 | $26.20 | Special order, ships in 7-14 days |
| 9 | 958091 | Ferrari Front Shock Absorber Bush - 958091 | $93.53 | Special order, ships in 7-14 days |
| 10 | 220383 | Ferrari Bush - 220383 | $66.35 | Available, ships in 3-6 days |
| 11 | 220378 | Ferrari Nut M12 - 220378 | $9.16 | Special order, ships in 7-14 days |
| 12 | 220377 | Ferrari Washer D.12.1 - 24 X 3 - 220377 | $14.84 | Special order, ships in 7-14 days |
| 13 | 237297 | Ferrari Screw TCEI M12 x 1.25 x 8 - 237297 | $58.98 | Special order, ships in 7-14 days |
| 14 | 55018003 | Ferrari BUSHING - 55018003 | Price on request | Contact us for price and availability |
| 15 | 255271 | Ferrari Nut M12 x 1.25 x - 255271 | $2.59 | Available, ships in 3-6 days |
| 16 | 12646921 | Ferrari Washer - 12646921 | $0.92 | Available, ships in 3-6 days |
| 17 | 55073298 | Ferrari Rear AXLe Shaft - 55073298 | $2,860.89 | Special order, ships in 7-14 days |
| 17 | 943893 | Ferrari Rear AXLe Shaft - 943893 | Superseded | Order 55073298 instead |
| 18 | 203780 | Ferrari/Maserati Hub Nut - 203780 | $30.05 | In stock |
| 19 | 918121 | Ferrari Special Ring Bearing for Axle Shaft - 918121 | $34.40 | Special order, ships in 7-14 days |
| 20 | 788160 | Ferrari Plate - 788160 | $12.02 | Special order, ships in 7-14 days |
| 21 | 237590 | Ferrari Axle Bolt - 237590 | $5.56 | In stock |
