Ferrari F80 — [MECHANICAL SYSTEM] - D.35 - INVERTER COOLING (diagram 0093)

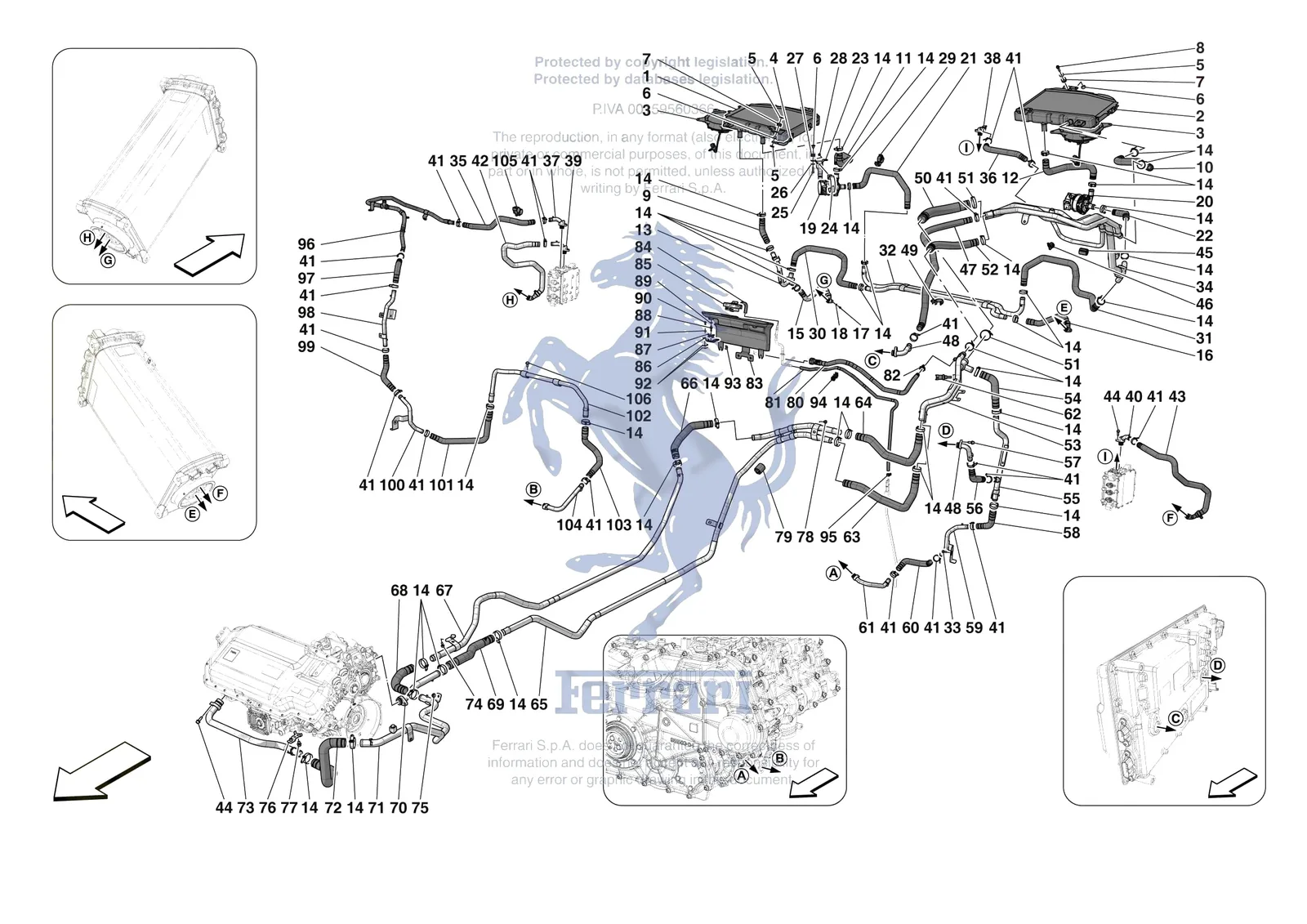

Exploded view of the [mechanical system] - d.35 - inverter cooling on the Ferrari F80, with 119 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari F80 [MECHANICAL SYSTEM] - D.35 - INVERTER COOLING exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
262112Ferrari Collar - 262112SupersededOrder 262111 instead
14040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
13046012Ferrari Nut - 13046012SupersededOrder 13046011 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
216568Ferrari Screw 6x30 - 216568SupersededOrder 231621 instead
10860270Ferrari Screw Collar - 10860270$1.94Available, ships in 3-6 days
10860370Ferrari Screw Collar - 10860370$3.26Special order, ships in 7-14 days
13127770Ferrari Screw Collar - 13127770$2.82Special order, ships in 7-14 days
268210Ferrari Screw Collar - 268210$6.32Special order, ships in 7-14 days
12643707Ferrari Washer - 12643707SupersededOrder 12643778 instead
12643777Ferrari Washer - 12643777SupersededOrder 12643778 instead
12601174Ferrari Wavy Washer 5mm - 12601174$0.12Available, ships in 3-6 days
1960389Ferrari RH INVERTER COOLING RADIATOR - 960389Price on requestContact us for price and availability
2960384Ferrari LH INVERTER COOLING RADIATOR - 960384Price on requestContact us for price and availability
3934138Ferrari RADIATOR FAN - 934138Price on requestContact us for price and availability
455003684Ferrari RADIATOR RETAINER CABLE - 55003684$39.37Special order, ships in 7-14 days
5302843Ferrari Washer - 302843$5.04Special order, ships in 7-14 days
6149707Ferrari Spacer - 149707$2.13Available, ships in 3-6 days
7953224Ferrari Grommet - 953224$10.70Special order, ships in 7-14 days
8231621Ferrari Allen Screw M6 x 30 TCEI - 231621$0.73Available, ships in 3-6 days
9786089Ferrari RH Radiator Outlet Hose - 786089$93.53Special order, ships in 7-14 days
10886161Ferrari LH Radiator Outlet Hose - 886161$179.73Special order, ships in 7-14 days
11954272Ferrari RH Pump Outlet Hose - 954272$152.62Special order, ships in 7-14 days
12954258Ferrari LH Pump Outlet Hose - 954258$137.87Special order, ships in 7-14 days
13973186Ferrari Rigid 3-Way Outlet Pipe For - 973186$517.04Special order, ships in 7-14 days
14262111Ferrari Screw Collar - 262111$3.03Special order, ships in 7-14 days
15960322Ferrari RH Inlet Hose - 960322$177.25Special order, ships in 7-14 days
16960281Ferrari LH Inlet Hose - 960281$164.95Special order, ships in 7-14 days
1714303123Ferrari Screw - 14303123$0.12Available, ships in 3-6 days
1714303124Ferrari SCREW - 14303124SupersededOrder 14303123 instead
1814497704Ferrari Washer - 14497704$1.30Special order, ships in 7-14 days
19942560Ferrari Second System Pump - 942560$1,899.43Special order, ships in 7-14 days
20908587Ferrari Pump - 908587$1,661.04Special order, ships in 7-14 days
21960320Ferrari RH Pump Inlet Hose - 960320$189.56Special order, ships in 7-14 days
22969798Ferrari LH Pump Inlet Hose - 969798$108.31Special order, ships in 7-14 days
2355002250Ferrari MOUNTING BRACKET - 55002250Price on requestContact us for price and availability
24814632Ferrari Cavallotto Per Pompa H2O Med - 814632$39.37Special order, ships in 7-14 days
2514305487Ferrari Allen Head Bolt M 6X 25 - 14305487$1.72Special order, ships in 7-14 days
2612643778Ferrari Washer 6-18 x 1.5 - 12643778$0.54Available, ships in 3-6 days
27103549Ferrari Grommet - 103549$2.80In stock
28256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
29270085Ferrari Clip - 270085$3.68Available, ships in 3-6 days
30960321Ferrari Hose From RH 3-Way Pipe - 960321$196.96Special order, ships in 7-14 days
31960269Ferrari Hose From LH 3-Way Pipe - 960269$224.04Special order, ships in 7-14 days
32990696Ferrari REAR RIGID PIPES - 990696$640.17Special order, ships in 7-14 days
33797724Ferrari Screw - 797724$0.92Special order, ships in 7-14 days
34960309Ferrari Rear Rigid Delivery And Retu - 960309$2,157.38Special order, ships in 7-14 days
35965730Ferrari RH Turbo Inverter Outlet Hos - 965730$295.43Special order, ships in 7-14 days
36960313Ferrari LH Turbo Inverter Outlet Hos - 960313$164.95Special order, ships in 7-14 days
37969913Ferrari Connector Fitting On RH Turb - 969913$270.83Special order, ships in 7-14 days
38972104Ferrari Connector Fitting On LH Turb - 972104$270.83Special order, ships in 7-14 days
39969919Ferrari Connector Fitting On RH Turb - 969919$270.83Special order, ships in 7-14 days
40972162Ferrari Connector Fitting On LH Turb - 972162$270.83Special order, ships in 7-14 days
41262109Ferrari Screw Collar - 262109$2.01Available, ships in 3-6 days
42960324Ferrari RH Turbo Inverter Inlet Hose - 960324$443.17Special order, ships in 7-14 days
43960275Ferrari LH Turbo Inverter Inlet Hose - 960275$443.17Special order, ships in 7-14 days
44231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
45305731Ferrari RUBBER SPACER - 305731Price on requestContact us for price and availability
46263232Ferrari Clip - 263232$2.82Special order, ships in 7-14 days
47958439Ferrari Inverter Inlet Hose - 958439$517.04Special order, ships in 7-14 days
48767697Ferrari Inverter Connector Fitting - 767697$172.33Special order, ships in 7-14 days
4982328600Ferrari Clip - 82328600SupersededOrder 270085 instead
50745675Ferrari Rear Return Sleeve - 745675$162.48Special order, ships in 7-14 days
51262113Ferrari Collar - 262113$3.68Special order, ships in 7-14 days
52745671Ferrari Rear Delivery Sleeve - 745671$172.33Special order, ships in 7-14 days
53745670Ferrari Rigid Delivery And Return Pi - 745670$1,083.38Special order, ships in 7-14 days
54746886Ferrari Inverter Return Hose - 746886$100.93Special order, ships in 7-14 days
55971829Ferrari Rigid 3-Way Pipe - 971829$443.17Special order, ships in 7-14 days
56971830Ferrari Inverter Outlet Hose - 971830$115.69Special order, ships in 7-14 days
57248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
58971840Ferrari Outlet Hose - 971840$120.62Special order, ships in 7-14 days
5955036295Ferrari Rigid Cooling Pipe - 55036295$369.30Special order, ships in 7-14 days
60789244Ferrari Outlet Hose - 789244$169.87Special order, ships in 7-14 days
6155036297Ferrari Rigid Outlet Pipe - 55036297$320.06Special order, ships in 7-14 days
62180137Ferrari/Maserati Water Temperature Sender / Sensor - 180137$25.19In stock
63948655Ferrari Rear Return Sleeve - 948655$214.19Special order, ships in 7-14 days
64948653Ferrari Rear Delivery Sleeve - 948653$295.43Special order, ships in 7-14 days
65990681Ferrari COOLING PIPES - 990681$837.14Special order, ships in 7-14 days
66946371Ferrari Rear Water Delivery Hose - 946371$118.16Special order, ships in 7-14 days
67990692Ferrari WATER DELIVERY PIPE - 990692$393.93Special order, ships in 7-14 days
68894474Ferrari Tunnel Outlet Delivery Hose - 894474$123.09Special order, ships in 7-14 days
69895178Ferrari AXLe Outlet Hose - 895178$150.17Special order, ships in 7-14 days
70960152Ferrari Rigid AXLe Outlet Pipe - 960152$320.06Special order, ships in 7-14 days
71894383Ferrari Front Rigid Pipe - 894383$467.80Special order, ships in 7-14 days
72894372Ferrari Front Water Delivery Hose - 894372$184.65Special order, ships in 7-14 days
73894033Ferrari AXLe Inlet Pipe - 894033$418.56Special order, ships in 7-14 days
74797723Ferrari Screw - 797723$0.86Special order, ships in 7-14 days
7513046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
76894161Ferrari FASTENER BRACKET - 894161Price on requestContact us for price and availability
77233600Ferrari/Maserati Screw - 233600$1.98In stock
7885833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
79316986Ferrari Spacer - 316986$16.37Special order, ships in 7-14 days
8055019161Ferrari Filler Hose - 55019161$246.20Special order, ships in 7-14 days
81967274Ferrari Rubber Pipe - 967274$115.69Special order, ships in 7-14 days
82868787Ferrari Collar - 868787$5.86Special order, ships in 7-14 days
86845165Ferrari UPPER BRACKET - 845165Price on requestContact us for price and availability
8768700200Ferrari Fixing Clip - 68700200$10.68Special order, ships in 7-14 days
8882535800Ferrari Press Fastener Pin - 82535800$3.03Available, ships in 3-6 days
8912637878Ferrari Washer - 12637878$0.19Available, ships in 3-6 days
9013272077Ferrari Screw - 13272077$3.03Available, ships in 3-6 days
9112604174Ferrari Washer - 12604174$0.06Available, ships in 3-6 days
92845161Ferrari SPACER - 845161Price on requestContact us for price and availability
93897207Ferrari Nut - 897207$18.32Special order, ships in 7-14 days
94305301Ferrari Clip - 305301$1.04Special order, ships in 7-14 days
9513125170Ferrari Clamp - 13125170$1.48Special order, ships in 7-14 days
96990701Ferrari REAR RIGID PIPE - 990701$517.04Special order, ships in 7-14 days
97969672Ferrari Upper Cooling Hose - 969672$93.53Special order, ships in 7-14 days
98969671Ferrari Rigid Cooling Pipe - 969671$295.43Special order, ships in 7-14 days
99969670Ferrari Cooling Hose - 969670$132.94Special order, ships in 7-14 days
100789306Ferrari Rigid Cooling Pipe - 789306$270.83Special order, ships in 7-14 days
10155037138Ferrari Cooling Hose - 55037138$147.72Special order, ships in 7-14 days
102990686Ferrari RIGID COOLING PIPE - 990686$344.69Special order, ships in 7-14 days
10355037209Ferrari Inlet Hose - 55037209$231.42Special order, ships in 7-14 days
10455036296Ferrari Rigid Inlet Pipe - 55036296$295.43Special order, ships in 7-14 days
105249329Ferrari Clip - 249329$2.38Special order, ships in 7-14 days
10611625714Ferrari SCREW - 11625714$1.02Special order, ships in 7-14 days
