Ferrari F80 — [VEHICLE TRIM] - E.55 - WIPERS AND HEADLAMP WASHERS (diagram 0174)

Exploded view of the [vehicle trim] - e.55 - wipers and headlamp washers on the Ferrari F80, with 37 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

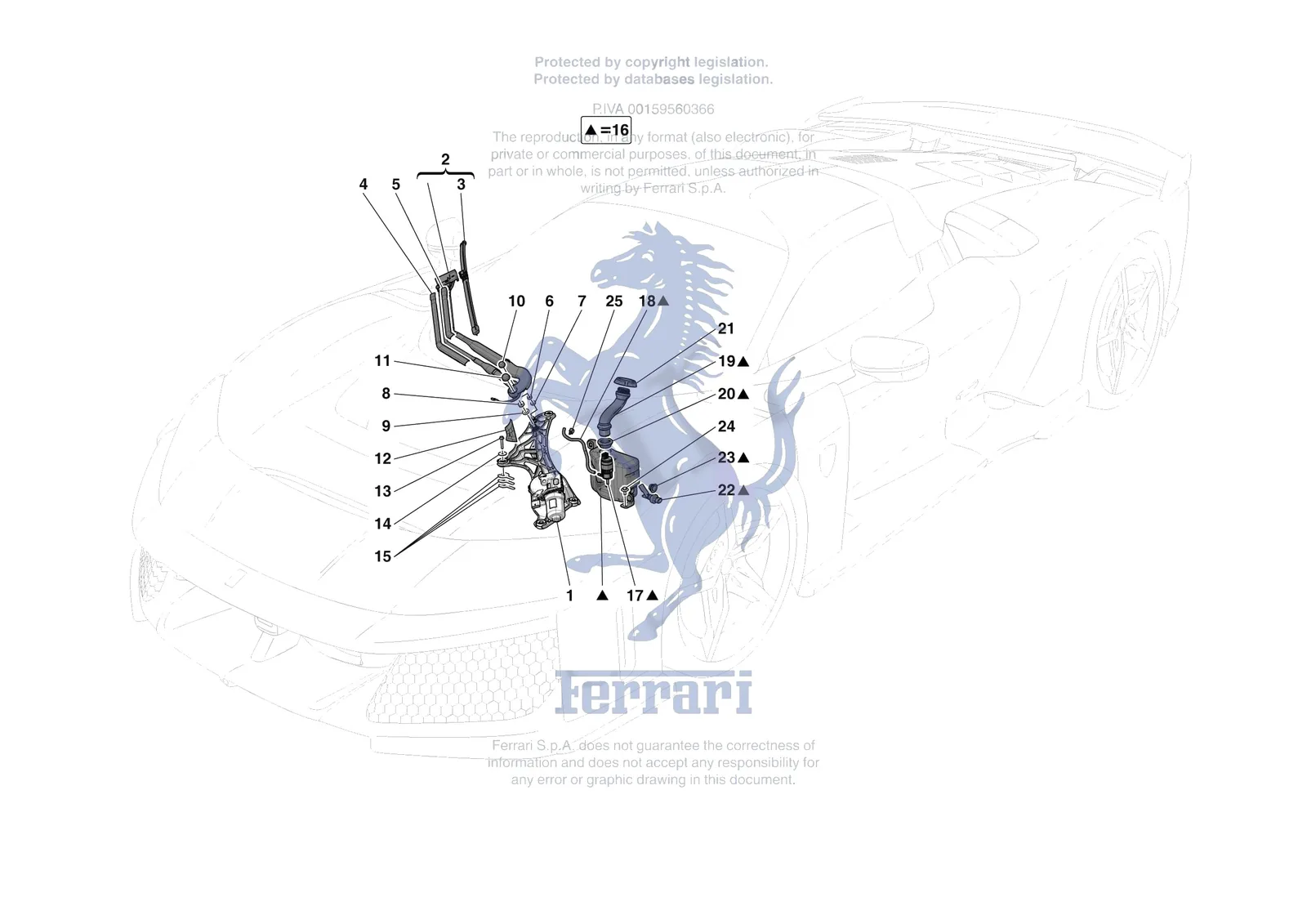

Ferrari F80 [VEHICLE TRIM] - E.55 - WIPERS AND HEADLAMP WASHERS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
16100825Ferrari Nut - 16100825SupersededOrder 16102314 instead
16100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
16100821Ferrari Plain Nut 8mm x 6.25mm Pitch 1.25 - 16100821SupersededOrder 16102314 instead
106853Ferrari Spring Washer 10mm - 106853SupersededOrder 12601474 instead
10516873Ferrari Washer - 10516873SupersededOrder 12601474 instead
12601471Ferrari Washer - 12601471SupersededOrder 12601474 instead
12640606Ferrari Washer - 12640606SupersededOrder 12640678 instead
12640608Ferrari Washer - 12640608SupersededOrder 12640678 instead
12640677Ferrari Washer - 12640677SupersededOrder 12640678 instead
155020215Ferrari COMPL. WINDSCREEN WIPER ASSEMBLY - 55020215Price on requestContact us for price and availability
1990327Ferrari COMPL. WINDSCREEN WIPER ASSEMBLY - 990327Price on requestContact us for price and availability
355020213Ferrari Comp. Wiper Blade - 55020213$2,720.19Special order, ships in 7-14 days
3767847Ferrari Comp. Wiper Blade - 767847$1,834.30Special order, ships in 7-14 days
455010406Ferrari Windscreen Wiper Arm Cover - 55010406$68.92Special order, ships in 7-14 days
555010409Ferrari Windscreen Wiper Arm Cover - 55010409$68.92Special order, ships in 7-14 days
616100824Ferrari/Maserati Nut - 16100824$0.30In stock
7283982Ferrari Washer - 283982$0.79Special order, ships in 7-14 days
810791021Ferrari Nut LHD - 10791021$1.25Available, ships in 3-6 days
912601474Ferrari Wavy Washer 10mm - 12601474$0.06Available, ships in 3-6 days
1055011174Ferrari Protective Cap - 55011174$24.05Special order, ships in 7-14 days
1155012523Ferrari Protective Cap - 55012523$24.05Special order, ships in 7-14 days
12999290Ferrari FOAM - 999290Price on requestContact us for price and availability
13775076Ferrari Screw M6 x 35 - 775076$8.72Special order, ships in 7-14 days
1412640678Ferrari Washer 6.15x25x2 - 12640678$3.47Available, ships in 3-6 days
1588187400Ferrari Spessore Di Regolaz.Ant. Sp. - 88187400$8.82Special order, ships in 7-14 days
16975451Ferrari Compl. Screenwash Reservoir - 975451$911.01Special order, ships in 7-14 days
1781632900Ferrari Windscreen Washer Pump - 81632900$172.84Available, ships in 3-6 days
18975449Ferrari WINDSCREEN WASHER PIPE - 975449Price on requestContact us for price and availability
19975515Ferrari SCREEN WASH RESERVOIR FILLER PIPE - 975515Price on requestContact us for price and availability
2082198600Ferrari Filler Pipe Seal - 82198600$44.24Special order, ships in 7-14 days
2155052299Ferrari TANK CAP - 55052299Price on requestContact us for price and availability
2281633100Ferrari Fluid Level Sensor - 81633100$240.39Special order, ships in 7-14 days
2381633200Ferrari Gasket - 81633200$50.24Special order, ships in 7-14 days
2481290900Ferrari Screw With Double Washer - 81290900$1.42In stock
2514569880Ferrari Clip 14.5x3 - 14569880$0.65Special order, ships in 7-14 days

All F80 diagrams
