Ferrari F80 — [VEHICLE TRIM] - E.57.03 - AC SYSTEM - AIR CONDITIONER SYSTEM (diagram 0178)

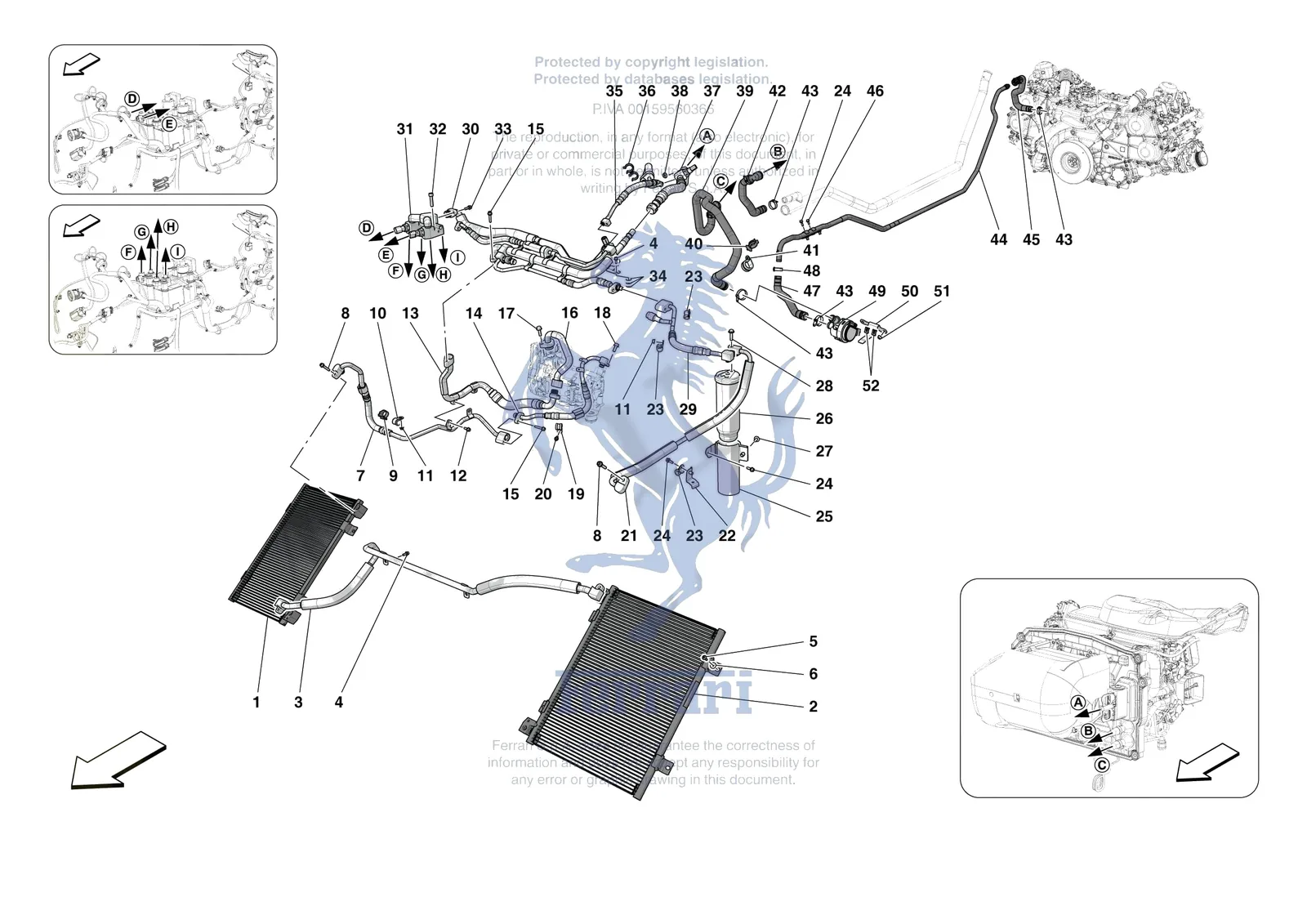

Exploded view of the [vehicle trim] - e.57.03 - ac system - air conditioner system on the Ferrari F80, with 69 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari F80 [VEHICLE TRIM] - E.57.03 - AC SYSTEM - AIR CONDITIONER SYSTEM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
302979Ferrari Bracket With Sheath - 302979SupersededOrder 307048 instead
262112Ferrari Collar - 262112SupersededOrder 262111 instead
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
14066017Ferrari Nut - 14066017$5.65Special order, ships in 7-14 days
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
80415900Ferrari Screw - 80415900$32.60Available, ships in 3-6 days
231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
216568Ferrari Screw 6x30 - 216568SupersededOrder 231621 instead
14306621Ferrari Screw 8X35 - 14306621SupersededOrder 14306624 instead
10860270Ferrari Screw Collar - 10860270$1.94Available, ships in 3-6 days
10860370Ferrari Screw Collar - 10860370$3.26Special order, ships in 7-14 days
13127770Ferrari Screw Collar - 13127770$2.82Special order, ships in 7-14 days
268210Ferrari Screw Collar - 268210$6.32Special order, ships in 7-14 days
1898615Ferrari RH Condenser - 898615$7,993.87Special order, ships in 7-14 days
2898614Ferrari LH Condenser - 898614$7,993.87Special order, ships in 7-14 days
3974947Ferrari Condenser Connector Pipe - 974947$738.64Special order, ships in 7-14 days
4797724Ferrari Screw - 797724$0.92Special order, ships in 7-14 days
585692400Ferrari Screw M5 x 20 TBFTX - 85692400$0.92Available, ships in 3-6 days
613577724Ferrari Washer - 13577724$3.68Special order, ships in 7-14 days
7774715Ferrari RH Condenser Freon Inlet Pip - 774715$640.17Special order, ships in 7-14 days
8231621Ferrari Allen Screw M6 x 30 TCEI - 231621$0.73Available, ships in 3-6 days
9198273Ferrari Clip - 198273$3.26Available, ships in 3-6 days
1010441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
1114040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
12231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
13881451Ferrari Ac System Compressor Return - 881451$1,206.48Special order, ships in 7-14 days
14774714Ferrari Compressor Freon Outlet Pipe - 774714$837.14Special order, ships in 7-14 days
15231622Ferrari Screw M6 x 35 - 231622$0.65Available, ships in 3-6 days
16774697Ferrari Ac System Compressor Inlet P - 774697$960.25Special order, ships in 7-14 days
1716287221Ferrari Screw - 16287221$0.59Available, ships in 3-6 days
1716287224Ferrari Screw M8x25 - 16287224$0.82Available, ships in 3-6 days
1816287121Ferrari SCREW - 16287121Price on requestContact us for price and availability
1910450390Ferrari Bracket with Sheath D.14mm - 10450390$4.35Special order, ships in 7-14 days
20248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
21774765Ferrari Ac System Pipe - 774765$714.03Special order, ships in 7-14 days
22900067Ferrari AC PIPE MOUNTING BRACKET - 900067Price on requestContact us for price and availability
2310441290Ferrari P Clip Bracket With Sheath 28mm D.10 - 10441290$1.02Available, ships in 3-6 days
24256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
2555004753Ferrari RECEIVER DRIER MOUNTING BRACKET - 55004753Price on requestContact us for price and availability
2667085100Ferrari/Maserati Dehydrating Filter - 67085100$73.54In stock
2711625824Ferrari Screw 6x18 - 11625824$0.71Available, ships in 3-6 days
2811626124Ferrari Screw 6x25 - 11626124SupersededOrder 11612826 instead
2811612826Ferrari Screw M6 x 25 - 11612826$6.75Available, ships in 3-6 days
29872148Ferrari Receiver Drier Outlet Pipe - 872148$443.17Special order, ships in 7-14 days
30744574Ferrari Ihx Pipe - 744574$3,121.19Special order, ships in 7-14 days
31775837Ferrari Chiller Connection Flange - 775837$935.64Special order, ships in 7-14 days
3214306624Ferrari Screw 8x35mm - 14306624$0.52Special order, ships in 7-14 days
33231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
3414447078Ferrari Washer D. 5.5 - 15 x 1 - 14447078$0.54Special order, ships in 7-14 days
35747057Ferrari Hvac Inlet Pipe - 747057$590.91Special order, ships in 7-14 days
3682329900Ferrari Clip - 82329900$1.92Special order, ships in 7-14 days
37744580Ferrari Hvac Outlet Pipe - 744580$960.25Special order, ships in 7-14 days
3814066021Ferrari Nut - 14066021$5.86Special order, ships in 7-14 days
39906338Ferrari A/C Hose From Pump To Hvac - 906338$467.80Special order, ships in 7-14 days
40896231Ferrari Clip - 896231$1.40Special order, ships in 7-14 days
41307048Ferrari Bracket With Sheath - 307048$83.57Special order, ships in 7-14 days
42899919Ferrari Ac System Hose From Hvac To - 899919$295.43Special order, ships in 7-14 days
43262111Ferrari Screw Collar - 262111$3.03Special order, ships in 7-14 days
44990690Ferrari HEATER UNDERBODY WATER PIPE - 990690$492.43Special order, ships in 7-14 days
4555019056Ferrari Rear Water Hose For Heater - 55019056$1,132.62Special order, ships in 7-14 days
46797723Ferrari Screw - 797723$0.86Special order, ships in 7-14 days
47895191Ferrari Ac System Pump Inlet Hose - 895191$221.59Special order, ships in 7-14 days
48262109Ferrari Screw Collar - 262109$2.01Available, ships in 3-6 days
49291349Ferrari Idle Water Recirculation Pump - 291349$5,509.80Special order, ships in 7-14 days
50983955Ferrari A/C PUMP MOUNTING BRACKET - 983955Price on requestContact us for price and availability
5114059211Ferrari Flanged Nut - 14059211$0.13Available, ships in 3-6 days
5282268600Ferrari Clip - 82268600$4.12Special order, ships in 7-14 days
