Ferrari F80 — [ELECTRICAL SYSTEM] - F.14 - HIGH VOLTAGE WIRING HARNESSES (diagram 0197)

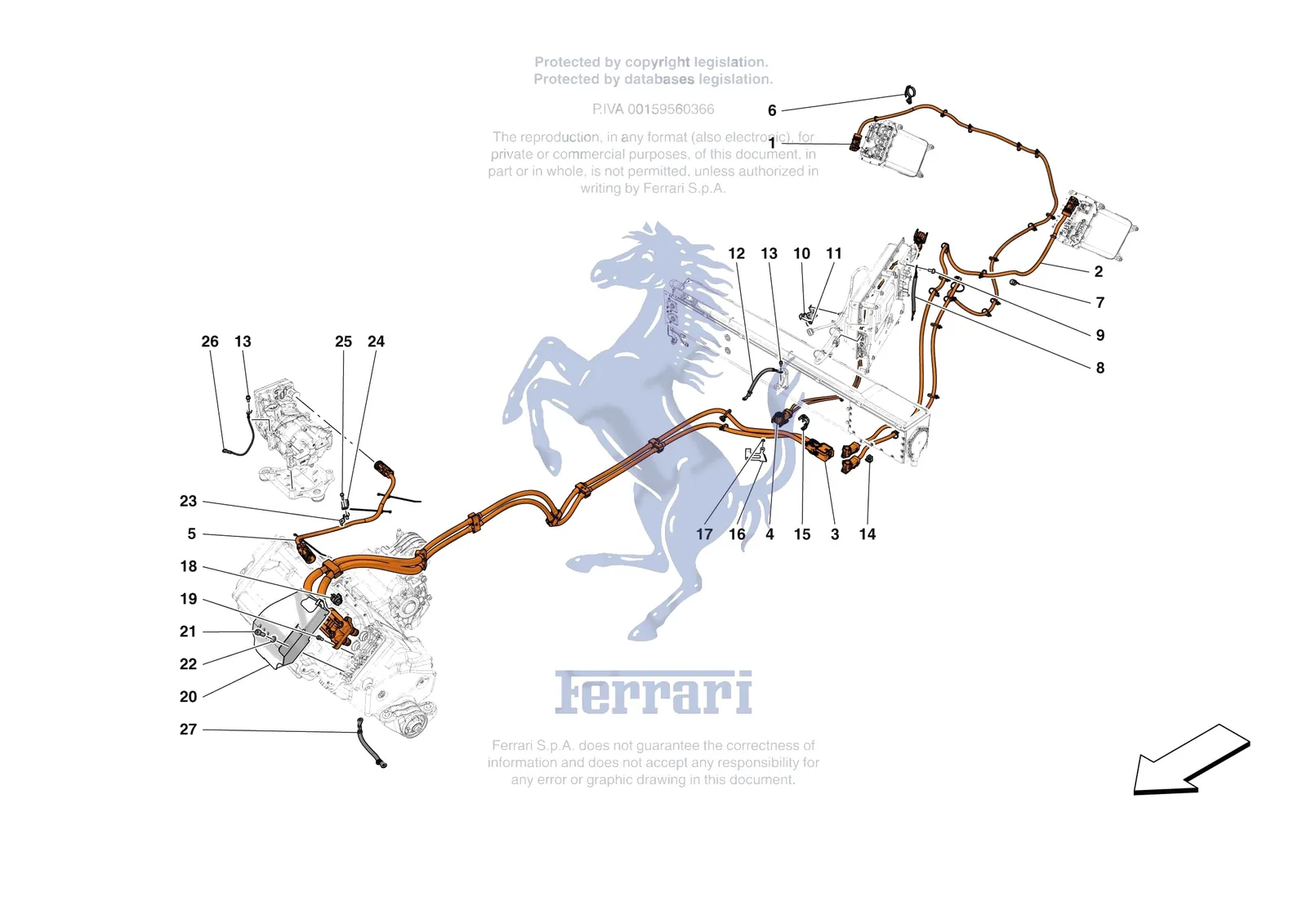

Exploded view of the [electrical system] - f.14 - high voltage wiring harnesses on the Ferrari F80, with 34 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [ELECTRICAL SYSTEM] - F.14 - HIGH VOLTAGE WIRING HARNESSES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0197.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 293146 | Ferrari Clip - 293146 | $2.09 | Special order, ships in 7-14 days | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 1 | 55037397 | Ferrari Hvc3 Cable From Hvb To RH Dc - 55037397 | $1,698.93 | Special order, ships in 7-14 days |
| 2 | 55037398 | Ferrari Hvc1 Cable From Hvb To LH Dc - 55037398 | $1,403.46 | Special order, ships in 7-14 days |
| 3 | 55037408 | Ferrari Hvc2 Cable From Hvb To P4 In - 55037408 | $3,630.06 | Special order, ships in 7-14 days |
| 4 | 55037409 | Ferrari Hvc4 Cable From Hvb To Brmÿi - 55037409 | $2,180.84 | Special order, ships in 7-14 days |
| 5 | 55037404 | Ferrari Hvc6 Cable From P4 Inverter - 55037404 | $689.41 | Special order, ships in 7-14 days |
| 6 | 85141400 | Ferrari Clip - 85141400 | $1.36 | Special order, ships in 7-14 days |
| 7 | 10441490 | Ferrari/Maserati Retaining Clip - 10441490 | $1.35 | In stock |
| 8 | 55037395 | Ferrari Ground Cable - 55037395 | $93.53 | Special order, ships in 7-14 days |
| 9 | 16287024 | Ferrari Screw - 16287024 | $1.00 | In stock |
| 10 | 997273 | Ferrari HVC5 BRACKET ON MOTOR - 997273 | Price on request | Contact us for price and availability |
| 11 | 797705 | Ferrari SCREW - 797705 | $14.85 | Special order, ships in 7-14 days |
| 12 | 55037405 | Ferrari Hvb Ground Cable - 55037405 | $110.78 | Special order, ships in 7-14 days |
| 13 | 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days |
| 13 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 14 | 257273 | Ferrari Clip D. 14-16 - 257273 | $2.59 | Special order, ships in 7-14 days |
| 15 | 866152 | Ferrari Clip - 866152 | $1.36 | Special order, ships in 7-14 days |
| 16 | 997272 | Ferrari HVC2 CABLE BRACKET - 997272 | Price on request | Contact us for price and availability |
| 17 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 18 | 247440 | Ferrari Clip - 247440 | $1.30 | Available, ships in 3-6 days |
| 19 | 13027087 | Ferrari Screw - 13027087 | $1.25 | Special order, ships in 7-14 days |
| 20 | 55035720 | Ferrari COMPL. CONNECTOR GUARD - 55035720 | Price on request | Contact us for price and availability |
| 21 | 14306374 | Ferrari Allen Screw M8X20 - 14306374 | $0.50 | Available, ships in 3-6 days |
| 22 | 12638524 | Ferrari Flat Washer 8.15x15x1.5 - 12638524 | $0.12 | Available, ships in 3-6 days |
| 22 | 12638521 | Ferrari Washer - 12638521 | Superseded | Order 12638524 instead |
| 23 | 997271 | Ferrari BRACKET - 997271 | Price on request | Contact us for price and availability |
| 24 | 244221 | Ferrari Clip - 244221 | $8.28 | Available, ships in 3-6 days |
| 25 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 26 | 55037402 | Ferrari Compressor Ground Cable - 55037402 | $108.31 | Special order, ships in 7-14 days |
| 27 | 55037401 | Ferrari FRONT AXLE GROUND CABLE - 55037401 | Price on request | Contact us for price and availability |
