Ferrari F80 — [ELECTRICAL SYSTEM] - F.15 - POWER ELECTRONICS (diagram 0198)

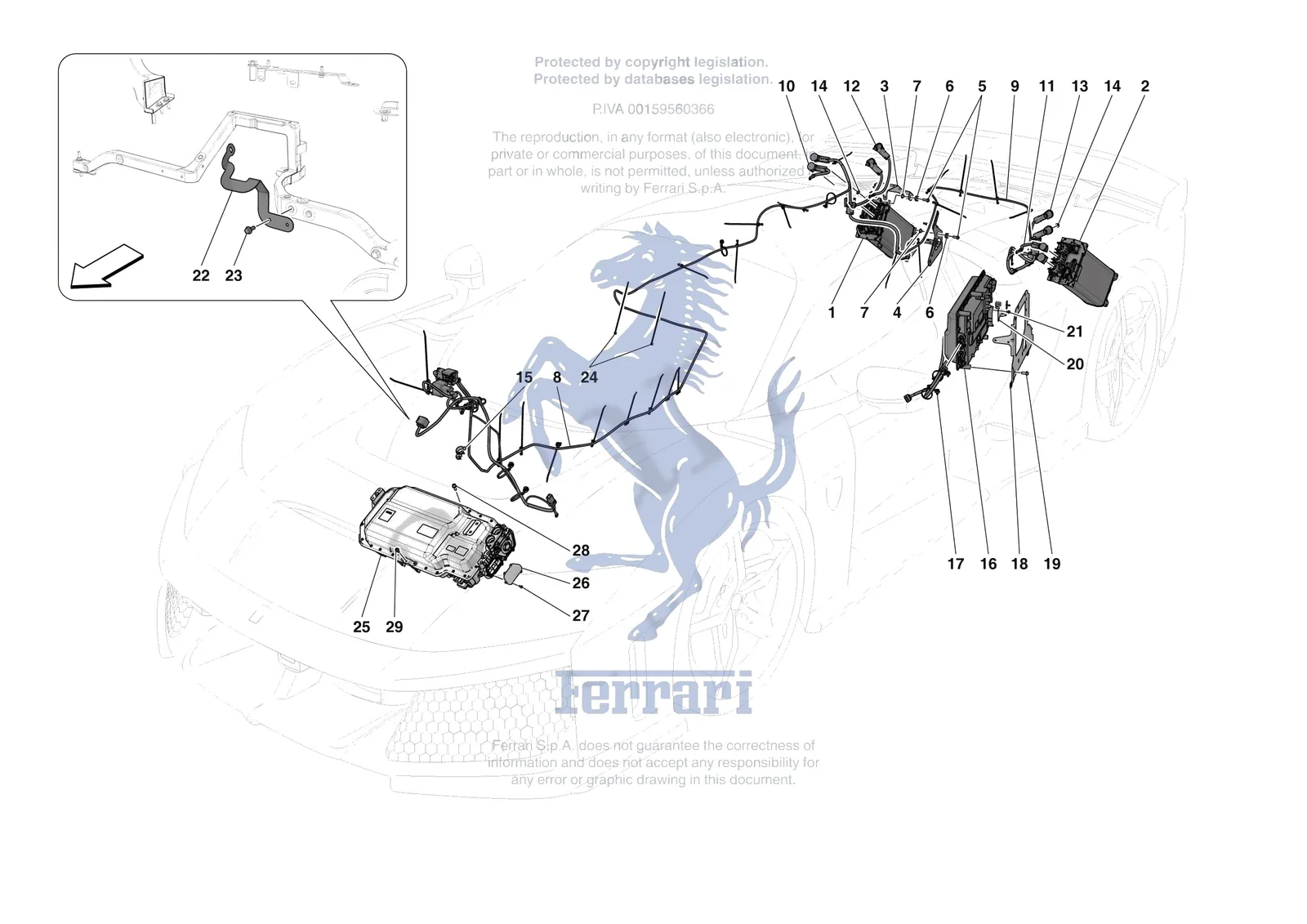

Exploded view of the [electrical system] - f.15 - power electronics on the Ferrari F80, with 34 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [ELECTRICAL SYSTEM] - F.15 - POWER ELECTRONICS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0198.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 1 | 55035821 | Ferrari RH DCDC LEVEL D1 - 55035821 | $15,897.82 | Contact us to order |
| 2 | 55035820 | Ferrari LH DCDC LEVEL D1 - 55035820 | $7,156.80 | Special order, ships in 7-14 days |
| 3 | 989891 | Ferrari LH BRACKET - 989891 | Price on request | Contact us for price and availability |
| 3 | 989890 | Ferrari RH BRACKET - 989890 | Price on request | Contact us for price and availability |
| 4 | 989889 | Ferrari LH LOWER BRACKET - 989889 | Price on request | Contact us for price and availability |
| 4 | 989892 | Ferrari LOWER RH BRACKET - 989892 | Price on request | Contact us for price and availability |
| 5 | 299688 | Ferrari Titanium Screw - 299688 | $65.63 | Special order, ships in 7-14 days |
| 6 | 246864 | Ferrari Grommet - 246864 | $7.42 | Special order, ships in 7-14 days |
| 7 | 222793 | Ferrari SPACER - 222793 | Price on request | Contact us for price and availability |
| 8 | 55037407 | Ferrari RH 48V Cable - 55037407 | $2,626.38 | Special order, ships in 7-14 days |
| 9 | 55037399 | Ferrari LH 48V Cable - 55037399 | $1,946.33 | Special order, ships in 7-14 days |
| 10 | 55037400 | Ferrari RH Dcdc 48V Ground - 55037400 | $369.30 | Special order, ships in 7-14 days |
| 11 | 55037406 | Ferrari LH Dcdc 48V Ground - 55037406 | $369.30 | Special order, ships in 7-14 days |
| 12 | 55037403 | Ferrari RH Inverter 48V Ground - 55037403 | $492.43 | Special order, ships in 7-14 days |
| 13 | 55037396 | Ferrari LH Inverter 48V Ground - 55037396 | $492.43 | Special order, ships in 7-14 days |
| 14 | 14059311 | Ferrari NUT - 14059311 | $0.52 | Available, ships in 3-6 days |
| 15 | 160014 | Ferrari Clip - 160014 | $2.82 | Available, ships in 3-6 days |
| 16 | 949776 | Ferrari INVERTER - 949776 | Price on request | Contact us for price and availability |
| 17 | 55036816 | Ferrari BRM INVERTER WIRING HARNESS - 55036816 | Price on request | Contact us for price and availability |
| 18 | 990230 | Ferrari MOUNTING BRACKET - 990230 | Price on request | Contact us for price and availability |
| 19 | 299091 | Ferrari SCREW - 299091 | Price on request | Contact us for price and availability |
| 20 | 997270 | Ferrari BRACKET - 997270 | Price on request | Contact us for price and availability |
| 21 | 797705 | Ferrari SCREW - 797705 | $14.85 | Special order, ships in 7-14 days |
| 22 | 55020551 | Ferrari CONNECTOR BRACKET - 55020551 | Price on request | Contact us for price and availability |
| 23 | 16281824 | Ferrari Screw - 16281824 | $0.82 | Available, ships in 3-6 days |
| 24 | 145854 | Ferrari Cable tie 200mm - 145854 | $0.57 | Available, ships in 3-6 days |
| 25 | 55033118 | Ferrari FRONT INVERTER - 55033118 | Price on request | Contact us for price and availability |
| 26 | 55030076 | Ferrari INVERTER MOTOR COVER - 55030076 | Price on request | Contact us for price and availability |
| 27 | 55030078 | Ferrari SCREW - 55030078 | Price on request | Contact us for price and availability |
| 28 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 29 | 797723 | Ferrari Screw - 797723 | $0.86 | Special order, ships in 7-14 days |
