Ferrari La Ferrari — Oil Pump (diagram 015)

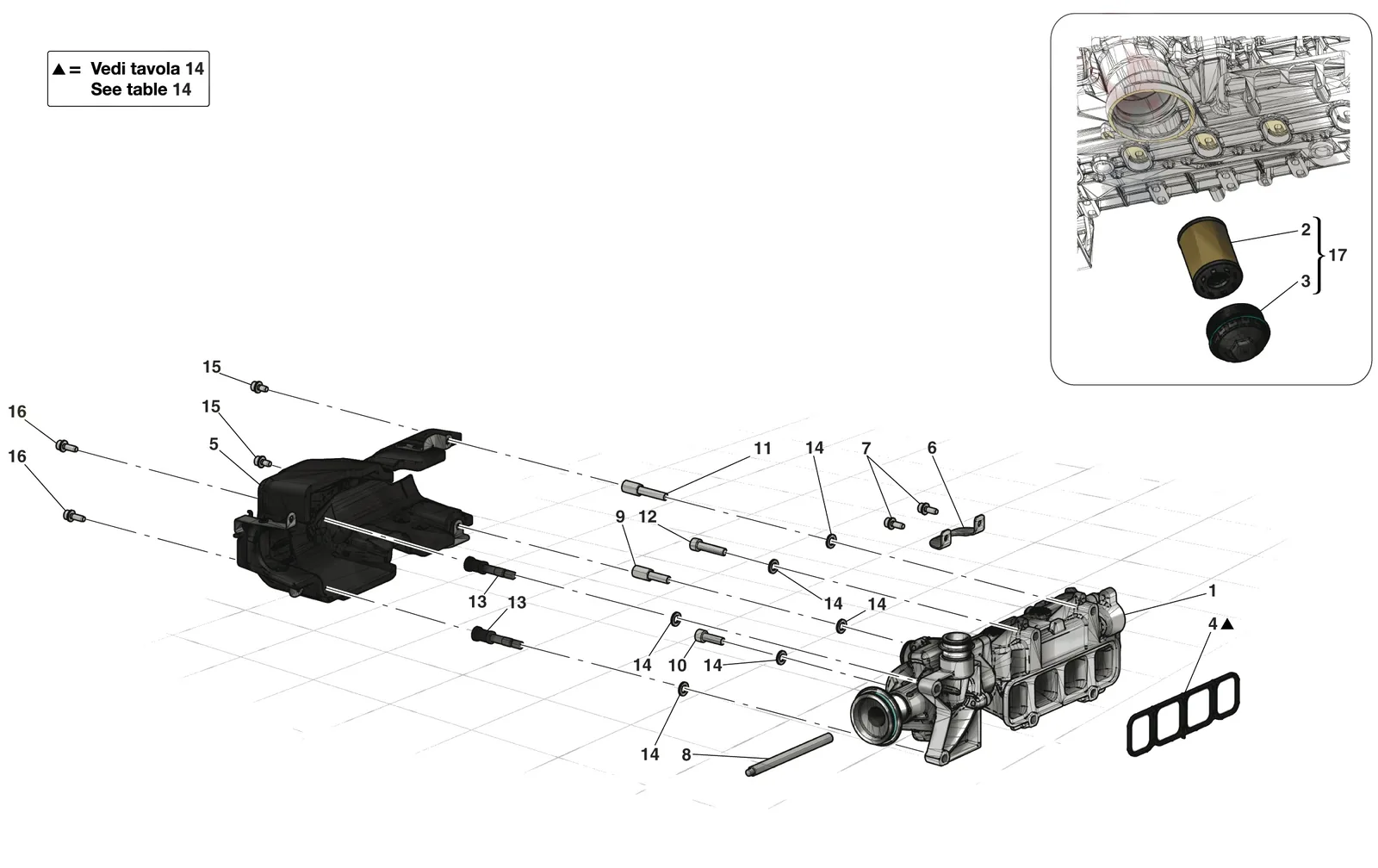

Exploded view of the oil pump on the Ferrari La Ferrari, with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 305154 | Ferrari Oil Pump Complete - 305154 | $5,100.67 | Special order, ships in 7-14 days |
| 1 | 298147 | Ferrari Oil Pump Complete - 298147 | Superseded | Order 305154 instead |
| 2 | 280900 | Ferrari Oil Filter Cartridge - 280900 | $108.40 | In stock |
| 2 | F12OCSK | Ferrari F12 Oil Change Service Kit - F12OCSK | $124.30 | In stock |
| 3 | 286244 | Ferrari Oil Filter Cap - 286244 | Price on request | Contact us for price and availability |
| 4 | 275528 | Ferrari Pump Seal Filter - 275528 | $58.98 | Available, ships in 3-6 days |
| 5 | 300169 | Ferrari Oil Pump Shield - 300169 | Price on request | Contact us for price and availability |
| 6 | 263347 | Ferrari Bracket - 263347 | $17.59 | Special order, ships in 7-14 days |
| 7 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 8 | 295134 | Ferrari Hexagonal Oil Pump Drive Rod - 295134 | $46.69 | Special order, ships in 7-14 days |
| 9 | 293409 | Ferrari Stud Bolt - 293409 | $29.34 | Special order, ships in 7-14 days |
| 10 | 14306424 | Ferrari Screw M8 x 25mm - 14306424 | Superseded | Order 14306421 instead |
| 10 | 14306421 | Ferrari Screw 8x20 - 14306421 | $0.63 | Available, ships in 3-6 days |
| 11 | 293410 | Ferrari Stud Bolt - 293410 | $71.78 | Special order, ships in 7-14 days |
| 12 | 14306621 | Ferrari Screw 8X35 - 14306621 | Superseded | Order 14306624 instead |
| 13 | 292495 | Ferrari Calibrated Stud Bolt - 292495 | $44.24 | Special order, ships in 7-14 days |
| 14 | 11198074 | Ferrari/Maserati Washer - 11198074 | $0.14 | In stock |
| 15 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 16 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 288975 | Ferrari Hexagonal Oil Pump Drive Rod - 288975 | Superseded | Order 295134 instead | |
| 235444 | Ferrari Oil Filter Cap - 235444 | Price on request | Contact us for price and availability | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 14306624 | Ferrari Screw 8x35mm - 14306624 | $0.52 | Special order, ships in 7-14 days | |
| 294005 | Ferrari Stud Bolt - 294005 | $23.86 | Special order, ships in 7-14 days |
