Ferrari Monza SP1 — [ENGINE] - B.14 - ENGINE INTAKE DUCT (diagram 0019)

Exploded view of the [engine] - b.14 - engine intake duct on the Ferrari Monza SP1, with 68 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

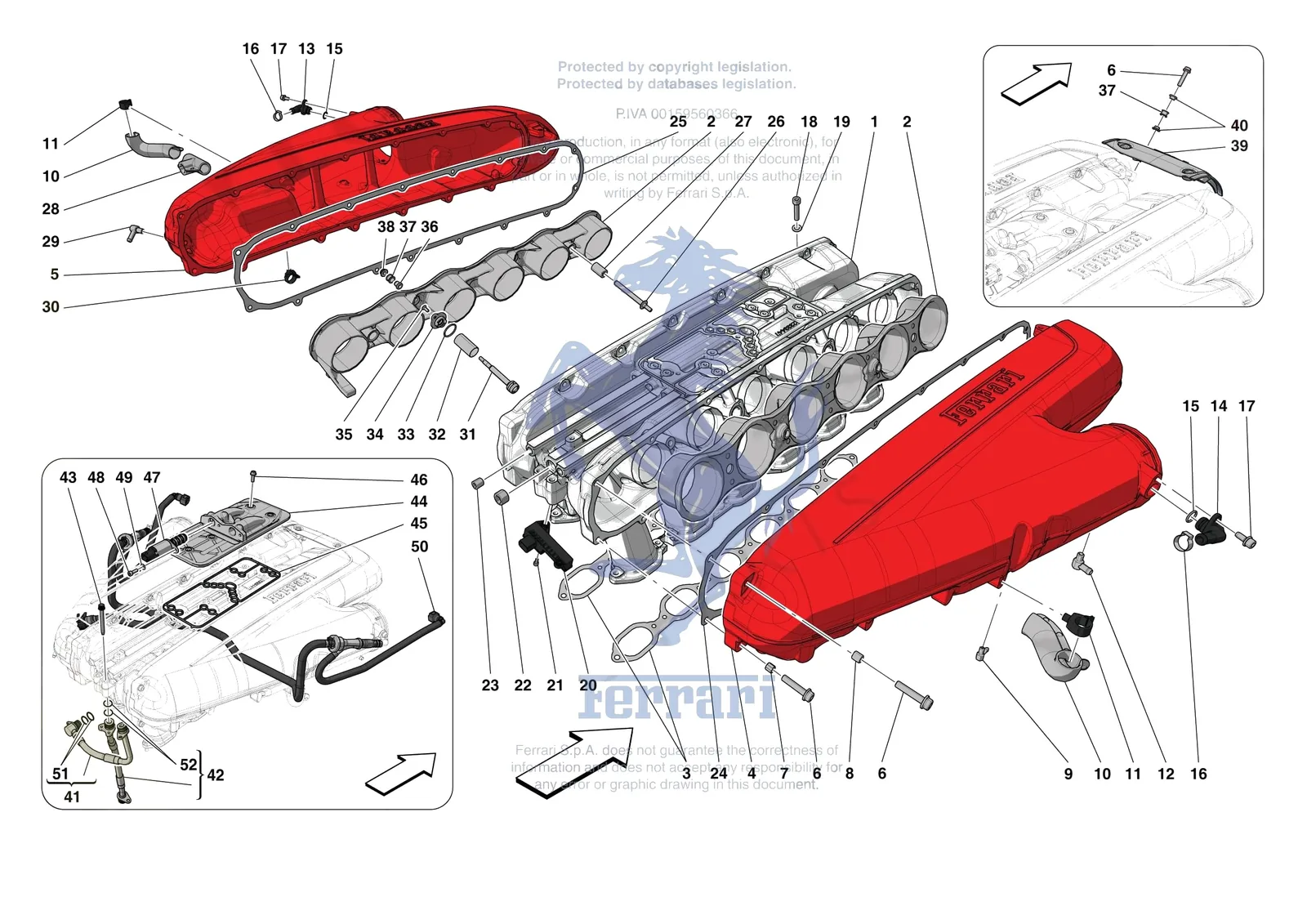

Ferrari Monza SP1 [ENGINE] - B.14 - ENGINE INTAKE DUCT exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
314702Ferrari Bushing - 314702SupersededOrder 325432 instead
206536Ferrari Clip D.14 - 206536$0.92Special order, ships in 7-14 days
323327Ferrari Intake Manifold - 323327SupersededOrder 752419 instead
314351Ferrari Intake Trumpet Guide Rod - 314351$217.83Special order, ships in 7-14 days
340069Ferrari LH Intake Plenum - 340069SupersededOrder 816018 instead
255442Ferrari Oil Pressure Regulator Valve - 255442SupersededOrder 801187 instead
269227Ferrari Oil Pressure Regulator Valve - 269227SupersededOrder 801187 instead
340068Ferrari RH Intake Plenum - 340068SupersededOrder 816017 instead
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
322755Ferrari Solenoid Valve Holder Cover - 322755$1,395.20Special order, ships in 7-14 days
327501Ferrari Solenoid Valve Holder Cover - 327501$1,199.37Special order, ships in 7-14 days
194490Ferrari Threaded Plug - 194490SupersededOrder 164400 instead
194495Ferrari Threaded Plug - 194495SupersededOrder 282755 instead
14326001Ferrari Threaded Plug D 10x1.25 - 14326001SupersededOrder 282755 instead
11197779Ferrari Washer - 11197779SupersededOrder 11197774 instead
1752419Ferrari Intake Manifold - 752419$12,066.90Special order, ships in 7-14 days
2329115Ferrari Carbon Intake Trumpets - 329115SupersededOrder 900749 instead
2900749Ferrari Carbon Intake Trumpets - 900749$1,204.80Special order, ships in 7-14 days
3316503Ferrari Intake Manifold Gasket - 316503$34.99In stock
4816017Ferrari RH Intake Plenum - 816017$5,957.33Special order, ships in 7-14 days
5816018Ferrari LH Intake Plenum - 816018$5,957.33Special order, ships in 7-14 days
6323493Ferrari Screw - 323493$2.13Special order, ships in 7-14 days
7329629Ferrari Plastic Bush - 329629$0.33Special order, ships in 7-14 days
8102725Ferrari/Maserati Dowel - 102725$2.79In stock
9268875Ferrari Connector - 268875$78.66Special order, ships in 7-14 days
10328743Ferrari Riparo Calore Tubo Kay - 328743$110.61Special order, ships in 7-14 days
11198253Ferrari Clip - 198253$7.40Special order, ships in 7-14 days
12268877Ferrari Connector - 268877$110.61Special order, ships in 7-14 days
1613434670Ferrari Screw Collar D16.2mm - 13434670$1.44Available, ships in 3-6 days
17231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
1814305574Ferrari Screw M6 x 30 - 14305574$0.71Available, ships in 3-6 days
1911197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
20313930Ferrari Position Sensor - 313930$458.95Available, ships in 3-6 days
2114303024Ferrari Allen Screw M4 x 12 TCEI - 14303024$1.63Available, ships in 3-6 days
22164400Ferrari Threaded Plug - 164400$6.96Special order, ships in 7-14 days
23282755Ferrari Threaded Plug D 10x1.25 - 282755$4.35Available, ships in 3-6 days
24326439Ferrari RH Gasket - 326439SupersededOrder 900098 instead
24900098Ferrari RH Gasket - 900098$194.22Special order, ships in 7-14 days
25326440Ferrari LH Gasket - 326440$164.30Available, ships in 3-6 days
25900099Ferrari LH Gasket - 900099$194.22Special order, ships in 7-14 days
26330293Ferrari Intake Trumpet Guide Rod - 330293$221.26Special order, ships in 7-14 days
27319613Ferrari Recirculating Ball Bearing - 319613$72.10Special order, ships in 7-14 days
28327561Ferrari Riparo Calore Tre Vie Tubo - 327561$76.19Special order, ships in 7-14 days
29319271Ferrari Connector - 319271$90.95Special order, ships in 7-14 days
30222072Ferrari Clip D.18 - 222072$6.75Available, ships in 3-6 days
31314467Ferrari Piston Complete - 314467$344.21Special order, ships in 7-14 days
32314498Ferrari Actuator Sleeve - 314498$110.61Special order, ships in 7-14 days
33314350Ferrari O-Ring - 314350$1.04Special order, ships in 7-14 days
34314468Ferrari Plug Complete - 314468$417.97Special order, ships in 7-14 days
3514440021Ferrari Allen Screw - 14440021$1.05Special order, ships in 7-14 days
36325432Ferrari Bushing - 325432$13.30Special order, ships in 7-14 days
37325535Ferrari Rubber Cable Grommet - 325535$29.48Special order, ships in 7-14 days
3814065921Ferrari Flanged Nut - 14065921$0.50Available, ships in 3-6 days
39752492Ferrari Plenum Cosmetic Cover - 752492$417.97Special order, ships in 7-14 days
40340224Ferrari Bushing - 340224$5.02Special order, ships in 7-14 days
41315930Ferrari Oil Return Pipe From Manifold To Head - 315930$442.56Special order, ships in 7-14 days
42318994Ferrari Oil Delivery Pipe From Crankcase To Manifold - 318994$442.56Special order, ships in 7-14 days
43319473Ferrari Screw - 319473$19.86Special order, ships in 7-14 days
44752491Ferrari Solenoid Valve Holder Cover - 752491$1,204.80Special order, ships in 7-14 days
45313960Ferrari Gasket - 313960$110.61Available, ships in 3-6 days
46323489Ferrari Screw - 323489$12.44Special order, ships in 7-14 days
47296017Ferrari Oil Pressure Regulator Valve - 296017SupersededOrder 801187 instead
47801187Ferrari Oil Pressure Regulator Valve - 801187$368.79Available, ships in 3-6 days
4911181574Ferrari Washer - 11181574$0.06Available, ships in 3-6 days
50335473Ferrari Kaiser Pipe Compl. With Valv - 335473$811.38Special order, ships in 7-14 days
51287722Ferrari O-Ring 15.08 x 2.62 - 287722$9.81Available, ships in 3-6 days
