Ferrari Monza SP1 — [ENGINE] - B.15 - INJECTION CONTROL (diagram 0020)

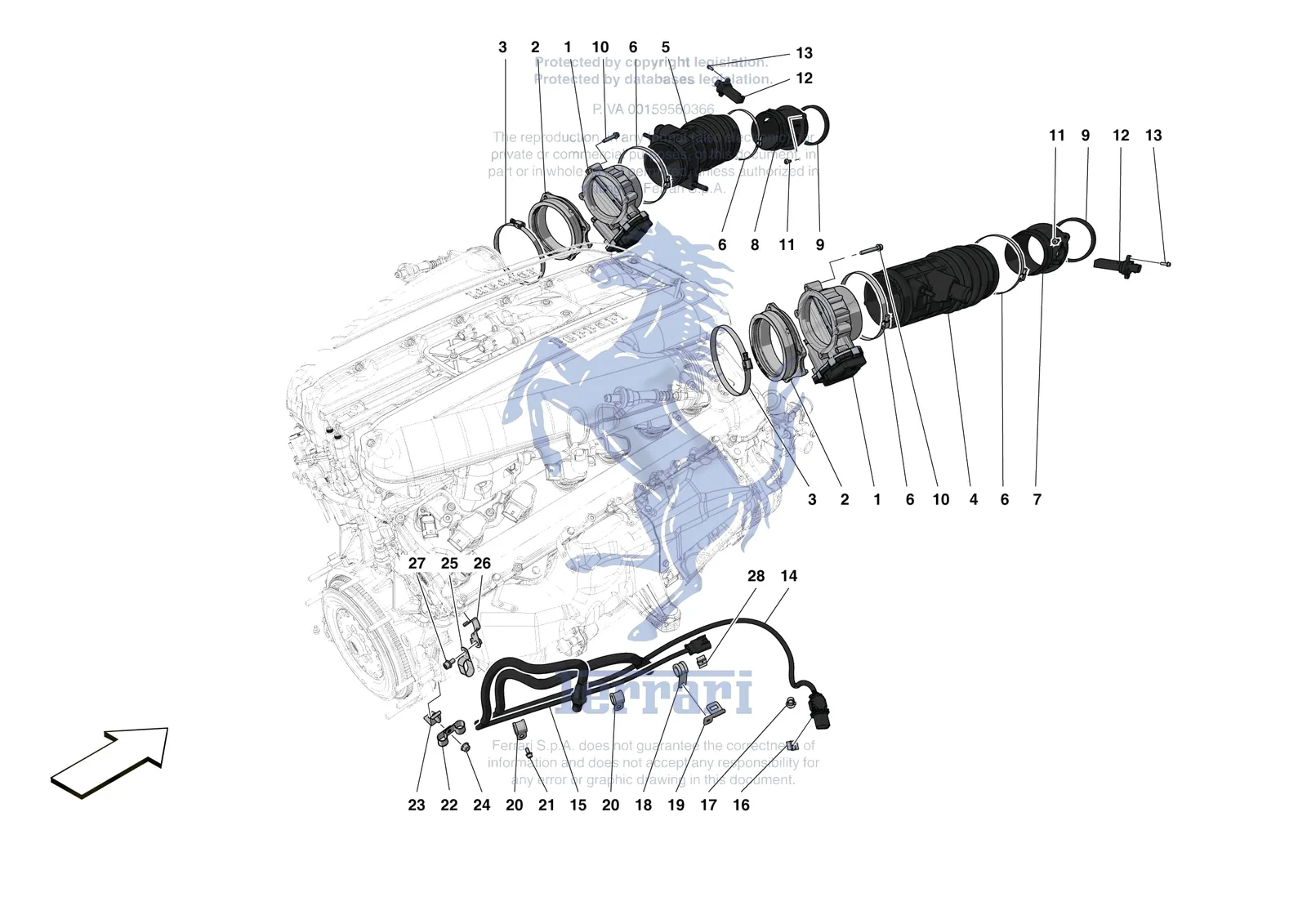

Exploded view of the [engine] - b.15 - injection control on the Ferrari Monza SP1, with 40 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP1 [ENGINE] - B.15 - INJECTION CONTROL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0020.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 326182 | Ferrari LH Hose Union Complete - 326182 | Superseded | Order 333753 instead | |
| 326185 | Ferrari LH Hose Union Complete - 326185 | Superseded | Order 333749 instead | |
| 326183 | Ferrari RH Hose Union Complete - 326183 | Superseded | Order 333751 instead | |
| 326186 | Ferrari RH Hose Union Complete - 326186 | Superseded | Order 333747 instead | |
| 302724 | Ferrari Screw - 302724 | Superseded | Order 302723 instead | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 1 | 326909 | Ferrari Motorised Throttle Body - 326909 | $2,013.87 | Special order, ships in 7-14 days |
| 1 | 925964 | Ferrari Motorised Throttle Body - 925964 | $1,893.26 | Special order, ships in 7-14 days |
| 2 | 316680 | Ferrari Spacer - 316680 | $270.44 | Special order, ships in 7-14 days |
| 4 | 333747 | Ferrari RH Hose Union Complete - 333747 | $467.15 | Special order, ships in 7-14 days |
| 4 | 333751 | Ferrari RH Hose Union Complete - 333751 | $368.79 | Special order, ships in 7-14 days |
| 5 | 333749 | Ferrari LH Hose Union Complete - 333749 | $467.15 | Special order, ships in 7-14 days |
| 5 | 333753 | Ferrari LH Hose Union Complete - 333753 | $368.79 | Special order, ships in 7-14 days |
| 7 | 325485 | Ferrari Air Flow Meter Body - 325485 | $98.32 | Special order, ships in 7-14 days |
| 8 | 303381 | Ferrari Flow Meter - 303381 | $78.66 | Special order, ships in 7-14 days |
| 9 | 327132 | Ferrari Adhesive Foam - 327132 | $39.31 | Special order, ships in 7-14 days |
| 10 | 231623 | Ferrari Screw M6 x 40 TCEI - 231623 | $1.02 | Available, ships in 3-6 days |
| 11 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 12 | 297280 | Ferrari Air Flow Sensor - 297280 | $237.66 | In stock |
| 13 | 302723 | Ferrari Ergal Screw 5x15 - 302723 | $9.39 | Special order, ships in 7-14 days |
| 13 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 14 | 331978 | Ferrari Sonda Lambda Anteriore Cpl L - 331978 | $371.53 | Special order, ships in 7-14 days |
| 15 | 331979 | Ferrari Sonda Lambda Posteriore Cpl - 331979 | $183.56 | Special order, ships in 7-14 days |
| 16 | 253769 | Ferrari Clip - 253769 | $1.17 | Special order, ships in 7-14 days |
| 16 | 288378 | Ferrari Clip - 288378 | $1.02 | Special order, ships in 7-14 days |
| 17 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 18 | 305724 | Ferrari Bracket - 305724 | $8.59 | Special order, ships in 7-14 days |
| 19 | 276422 | Ferrari LH Front Oxygen Sensor Connector Break - 276422 | $29.48 | Available, ships in 3-6 days |
| 20 | 10441490 | Ferrari/Maserati Retaining Clip - 10441490 | $1.35 | In stock |
| 21 | 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days |
| 21 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 22 | 10418601 | Ferrari Clamp 14mm - 10418601 | $1.86 | Available, ships in 3-6 days |
| 23 | 862865 | Ferrari Bracket for RH Rear Oxygen Sensor Cable - 862865 | $12.52 | Special order, ships in 7-14 days |
| 24 | 14058421 | Ferrari Nut M6 x 6 - 14058421 | $2.38 | Available, ships in 3-6 days |
| 25 | 10116401 | Ferrari Bracket P Clip - 10116401 | $8.05 | Special order, ships in 7-14 days |
| 26 | 331970 | Ferrari Bracket for RH Rear Oxygen Sensor - 331970 | $34.40 | Special order, ships in 7-14 days |
| 27 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 28 | 252473 | Ferrari Clip - 252473 | $3.47 | Special order, ships in 7-14 days |
