Ferrari Monza SP1 — [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM (diagram 0039)

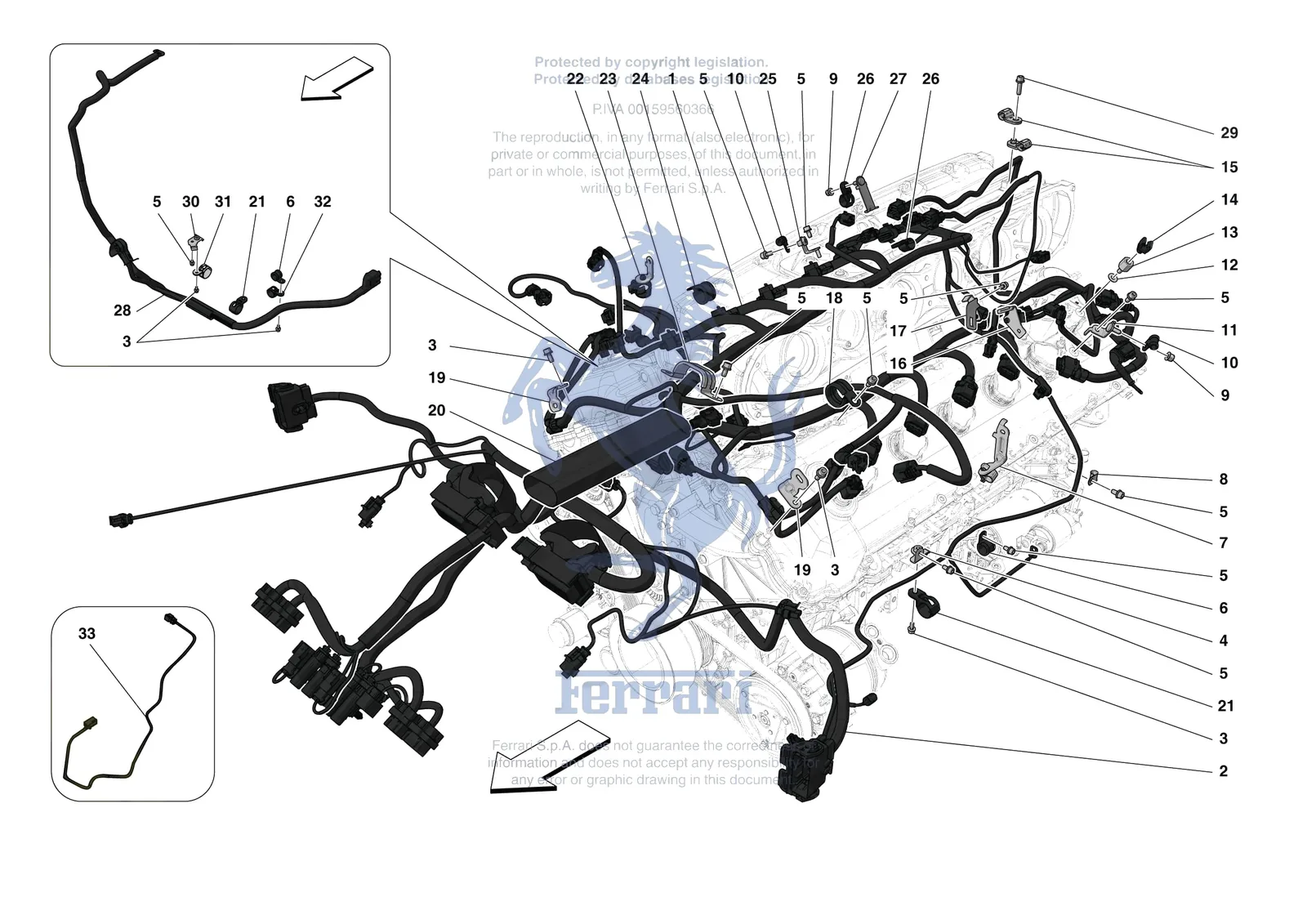

Exploded view of the [engine] - b.34 - engine electrical system on the Ferrari Monza SP1, with 40 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP1 [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0039.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 1 | 815542 | Ferrari F140Gb-Cavo Iniezione Eu Dx - 815542 | $2,803.02 | Special order, ships in 7-14 days |
| 1 | 897715 | Ferrari F140Gb-Cavo Iniezione Usa Dx - 897715 | $3,072.33 | Special order, ships in 7-14 days |
| 2 | 938561 | Ferrari Cavo Iniezione Sx Europa F14 - 938561 | $2,774.91 | Special order, ships in 7-14 days |
| 2 | 784406 | Ferrari Cavo Iniezione Sx Usa F140Gb - 784406 | $3,130.87 | Special order, ships in 7-14 days |
| 2 | 815541 | Ferrari F140Gb-Cavo Iniezione Eu Sx - 815541 | $2,851.05 | Special order, ships in 7-14 days |
| 2 | 784405 | Ferrari LH Injection Wiring Harness - 784405 | $2,714.04 | Special order, ships in 7-14 days |
| 3 | 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days |
| 3 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 4 | 337548 | Ferrari UTILITIES CABLE MOUNTING BRACKET - 337548 | Price on request | Contact us for price and availability |
| 5 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 6 | 10441590 | Ferrari P Clip Bracket With Sheath 16mm - 10441590 | $0.98 | Available, ships in 3-6 days |
| 8 | 10418501 | Ferrari P Clip Clamp 10mm - 10418501 | $6.54 | Available, ships in 3-6 days |
| 9 | 228265 | Ferrari Nut 6x1x9 - 228265 | $0.40 | Available, ships in 3-6 days |
| 10 | 10441190 | Ferrari P clip Bracket With Sheath D8mm - 10441190 | $0.90 | Available, ships in 3-6 days |
| 11 | 341764 | Ferrari CABLE FASTENER BRACKET - 341764 | $36.86 | Special order, ships in 7-14 days |
| 12 | 12644425 | Ferrari Washer - 12644425 | $0.52 | Special order, ships in 7-14 days |
| 13 | 328484 | Ferrari Stud Bolt - 328484 | $137.67 | Special order, ships in 7-14 days |
| 14 | 199589 | Ferrari Clip - 199589 | $3.03 | Available, ships in 3-6 days |
| 15 | 244218 | Ferrari Clip - 244218 | $8.51 | Available, ships in 3-6 days |
| 16 | 325831 | Ferrari Wiring Harness Mounting Bracket - 325831 | $27.03 | Special order, ships in 7-14 days |
| 17 | 339748 | Ferrari Wiring Harness Mounting Bracket - 339748 | $39.31 | Special order, ships in 7-14 days |
| 18 | 10442190 | Ferrari P Clip Bracket With Sheath - 10442190 | $1.42 | Available, ships in 3-6 days |
| 19 | 337549 | Ferrari INJECTION CABLE FASTENER BRACKET - 337549 | $21.60 | Special order, ships in 7-14 days |
| 20 | 787148 | Ferrari Sheath Kit - 787148 | $20.05 | Special order, ships in 7-14 days |
| 21 | 244225 | Ferrari Clip - 244225 | $9.62 | Special order, ships in 7-14 days |
| 23 | 341769 | Ferrari Bracket - 341769 | $29.34 | Special order, ships in 7-14 days |
| 24 | 10441890 | Ferrari P Clip Bracket With Sheath D22 - 10441890 | $1.17 | Available, ships in 3-6 days |
| 25 | 341763 | Ferrari CABLE FASTENER BRACKET - 341763 | $36.86 | Special order, ships in 7-14 days |
| 26 | 244221 | Ferrari Clip - 244221 | $8.28 | Available, ships in 3-6 days |
| 27 | 324097 | Ferrari Cable Fastener Bracket - 324097 | $29.48 | Special order, ships in 7-14 days |
| 28 | 338633 | Ferrari Engine Services Cable - 338633 | Superseded | Order 776379 instead |
| 28 | 776379 | Ferrari Engine Services Cable - 776379 | $565.49 | Special order, ships in 7-14 days |
| 29 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 30 | 333172 | Ferrari Wiring Harness Mounting Bracket - 333172 | $31.93 | Special order, ships in 7-14 days |
| 31 | 287067 | Ferrari Clip - 287067 | $8.45 | Special order, ships in 7-14 days |
| 32 | 244223 | Ferrari Clip - 244223 | $8.93 | Special order, ships in 7-14 days |
