Ferrari Monza SP1 — [MECHANICAL SYSTEM] - D.25.03 - FRONT SUSPENSION - CALIPERS AND DISCS (diagram 0077)

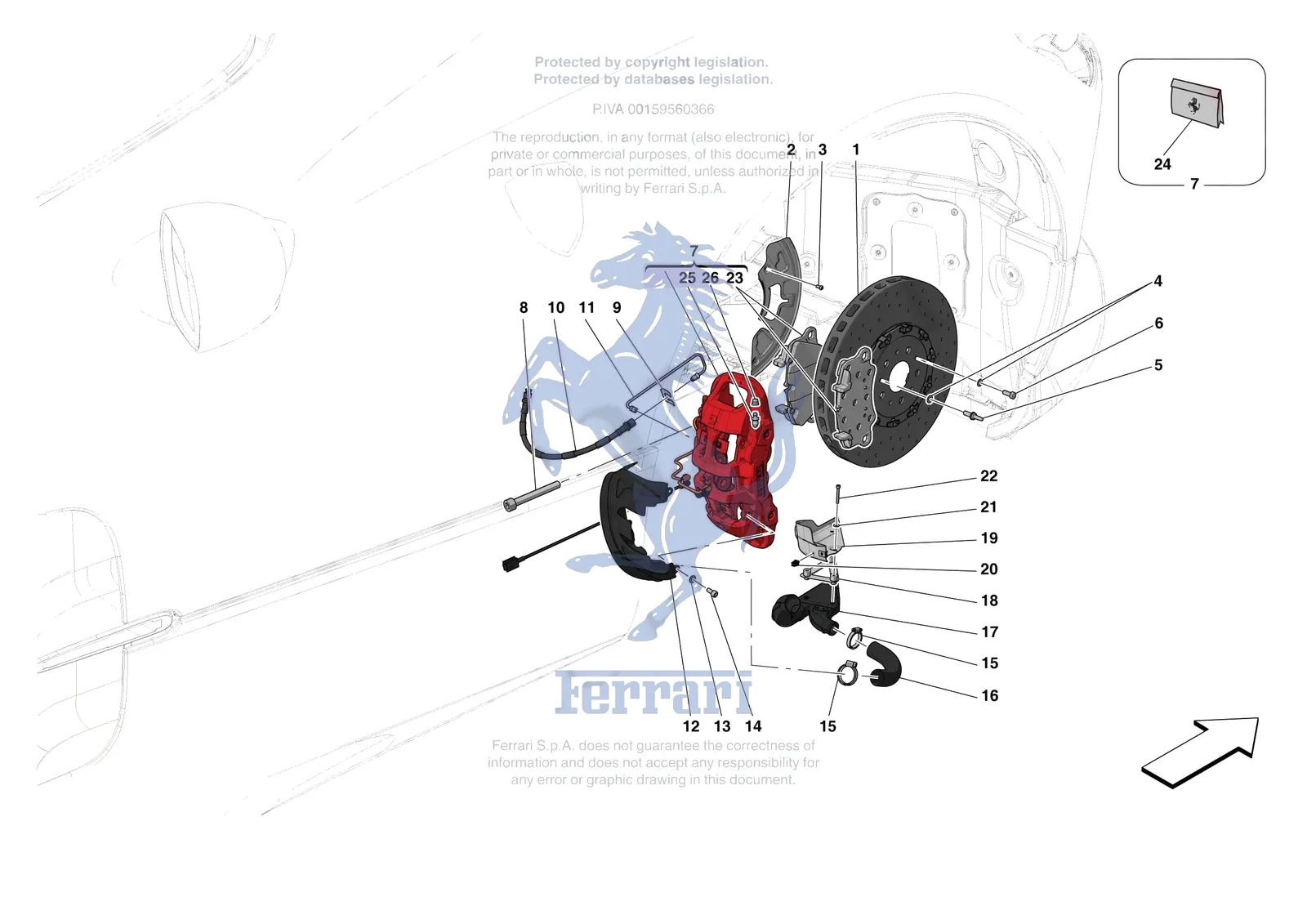

Exploded view of the [mechanical system] - d.25.03 - front suspension - calipers and discs on the Ferrari Monza SP1, with 55 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP1 [MECHANICAL SYSTEM] - D.25.03 - FRONT SUSPENSION - CALIPERS AND DISCS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0077.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 190870 | Ferrari Screw 6x14 - 190870 | $4.10 | Special order, ships in 7-14 days | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 1 | 321910 | Ferrari Front Brake Disc 398X38 - 321910 | $6,859.29 | Available, ships in 3-6 days |
| 2 | 321235 | Ferrari Front LH Disc Shield - 321235 | $81.11 | Special order, ships in 7-14 days |
| 2 | 321236 | Ferrari Front RH Disc Shield - 321236 | $81.11 | Special order, ships in 7-14 days |
| 3 | 250657 | Ferrari Screw M6 x 14 TBTX - 250657 | $13.36 | Available, ships in 3-6 days |
| 4 | 228132 | Ferrari Spring Washer - 228132 | $0.59 | Available, ships in 3-6 days |
| 5 | 104370 | Ferrari Wheel Alignment Stud - 104370 | $16.39 | In stock |
| 6 | 228131 | Ferrari Screw M8 x 20 - 228131 | $1.53 | Available, ships in 3-6 days |
| 7 | 322124 | Ferrari Front LH Calliper With Pads - 322124 | $6,315.36 | Special order, ships in 7-14 days |
| 7 | 322126 | Ferrari Front LH Calliper With Pads - 322126 | $6,469.39 | Special order, ships in 7-14 days |
| 7 | 322128 | Ferrari Front LH Calliper With Pads - 322128 | $6,785.78 | Special order, ships in 7-14 days |
| 7 | 322130 | Ferrari Front LH Calliper With Pads - 322130 | $6,785.78 | Special order, ships in 7-14 days |
| 7 | 322132 | Ferrari Front LH Calliper With Pads - 322132 | $7,349.89 | Special order, ships in 7-14 days |
| 7 | 322134 | Ferrari Front LH Calliper With Pads - 322134 | $7,349.89 | Special order, ships in 7-14 days |
| 7 | 322136 | Ferrari Front LH Calliper With Pads - 322136 | $6,785.78 | Special order, ships in 7-14 days |
| 7 | 322138 | Ferrari Front LH Calliper With Pads - 322138 | $6,604.69 | Special order, ships in 7-14 days |
| 7 | 322140 | Ferrari Front LH Calliper With Pads - 322140 | $6,785.78 | Special order, ships in 7-14 days |
| 7 | 322125 | Ferrari Front RH Calliper With Pads - 322125 | $6,315.36 | Special order, ships in 7-14 days |
| 7 | 322127 | Ferrari Front RH Calliper With Pads - 322127 | $6,469.39 | Special order, ships in 7-14 days |
| 7 | 322129 | Ferrari Front RH Calliper With Pads - 322129 | $6,785.78 | Special order, ships in 7-14 days |
| 7 | 322131 | Ferrari Front RH Calliper With Pads - 322131 | $6,785.78 | Special order, ships in 7-14 days |
| 7 | 322133 | Ferrari Front RH Calliper With Pads - 322133 | $7,349.89 | Special order, ships in 7-14 days |
| 7 | 322135 | Ferrari Front RH Calliper With Pads - 322135 | $7,349.89 | Special order, ships in 7-14 days |
| 7 | 322137 | Ferrari Front RH Calliper With Pads - 322137 | $6,785.78 | Special order, ships in 7-14 days |
| 7 | 322139 | Ferrari Front RH Calliper With Pads - 322139 | $6,604.69 | Special order, ships in 7-14 days |
| 7 | 322141 | Ferrari Front RH Calliper With Pads - 322141 | $6,785.78 | Special order, ships in 7-14 days |
| 8 | 195167 | Ferrari Screw TCEI M12 x 1.5 x 95 - 195167 | $34.94 | Available, ships in 3-6 days |
| 9 | 326837 | Ferrari Clip - 326837 | $4.77 | Available, ships in 3-6 days |
| 10 | 977800 | Ferrari Brake Hose L.376 - 977800 | $93.40 | Available, ships in 3-6 days |
| 10 | 254241 | Ferrari Brake Rubber Pipe - 254241 | Superseded | Order 977800 instead |
| 11 | 314469 | Ferrari Brake Pipe From Calliper To LH Hose - 314469 | $565.49 | Special order, ships in 7-14 days |
| 11 | 314470 | Ferrari Brake Pipe From Calliper To RH Hose - 314470 | $565.49 | Special order, ships in 7-14 days |
| 12 | 883362 | Ferrari Front LH Calliper Housing Co - 883362 | $860.56 | Special order, ships in 7-14 days |
| 12 | 883363 | Ferrari RH Front Calliper Housing Co - 883363 | $860.56 | Special order, ships in 7-14 days |
| 13 | 13550224 | Ferrari Washer D 6.15-13x1 - 13550224 | $2.59 | Available, ships in 3-6 days |
| 14 | 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days |
| 14 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 15 | 296782 | Ferrari Hose Clamp 32-50mm - 296782 | $17.67 | Available, ships in 3-6 days |
| 16 | 302698 | Ferrari Brake Air Pipe - 302698 | $172.10 | Special order, ships in 7-14 days |
| 17 | 336477 | Ferrari LH Front Brake Air Duct - 336477 | $713.04 | Special order, ships in 7-14 days |
| 17 | 336478 | Ferrari RH Front Brake Air Duct - 336478 | $713.04 | Special order, ships in 7-14 days |
| 18 | 320714 | Ferrari Bracket Fastening Duct To LH Lower Arm - 320714 | $169.62 | Special order, ships in 7-14 days |
| 18 | 320715 | Ferrari Bracket Fastening Duct To RH Lower Arm - 320715 | $169.62 | Special order, ships in 7-14 days |
| 19 | 322888 | Ferrari Compl. LH Air Deflector - 322888 | $115.54 | Special order, ships in 7-14 days |
| 19 | 322889 | Ferrari Compl. RH Air Deflector - 322889 | $115.54 | Special order, ships in 7-14 days |
| 20 | 261214 | Ferrari Raymond Clip - 261214 | $2.59 | Available, ships in 3-6 days |
| 21 | 11193274 | Ferrari Washer - 11193274 | $0.06 | Available, ships in 3-6 days |
| 22 | 14305924 | Ferrari Allen Screw 6x45 - 14305924 | $0.38 | Available, ships in 3-6 days |
| 22 | 231624 | Ferrari Allen Screw M6 x 45 - 231624 | Superseded | Order 14305924 instead |
| 23 | 70003278 | Ferrari Front Pad Set With Spring - 70003278 | $2,852.46 | Available, ships in 3-6 days |
| 24 | 70003492 | Ferrari Front Brake Caliper Dust Seal Kit - 70003492 | $184.38 | Special order, ships in 7-14 days |
| 25 | 215665 | Ferrari Bleed Nipple Valve - 215665 | $78.66 | Available, ships in 3-6 days |
| 26 | 215666 | Ferrari Cap For Bleed Nipple - 215666 | $51.62 | Available, ships in 3-6 days |
