Ferrari Monza SP2 — [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION (diagram 0056)

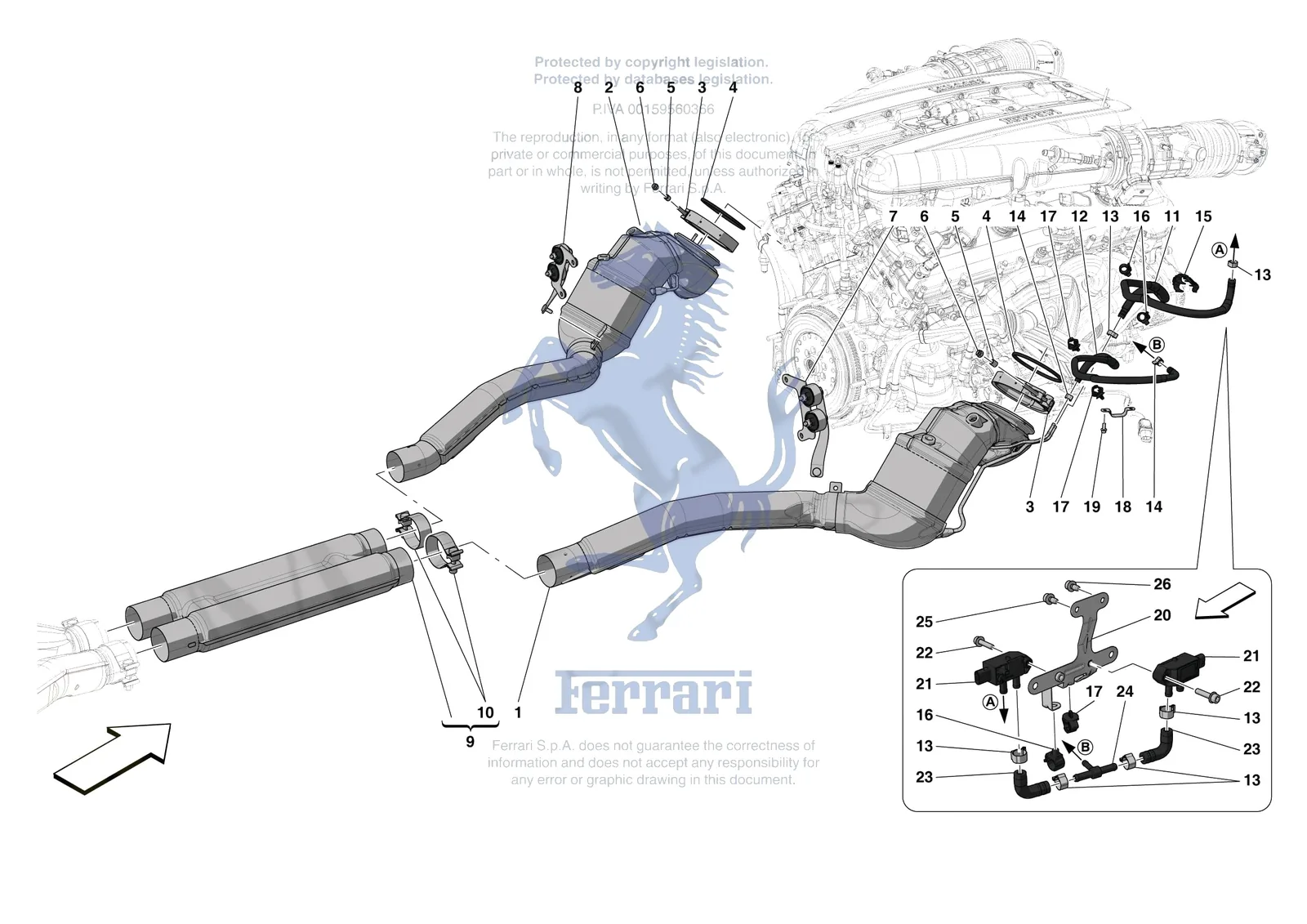

Exploded view of the [mechanical system] - d.08.01 - exhaust system - front section on the Ferrari Monza SP2, with 33 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP2 [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp2/0056.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 198253 | Ferrari Clip - 198253 | $7.40 | Special order, ships in 7-14 days | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 1 | 765760 | Ferrari RH Catalytic Converter - 765760 | $17,230.41 | Special order, ships in 7-14 days |
| 2 | 765761 | Ferrari Catalizzatore Con Gpf Sx - 765761 | $17,326.43 | Contact us to order |
| 3 | 290743 | Ferrari V-Clamp For Fastening Catalytic Converter to Manifold - 290743 | $164.72 | Special order, ships in 7-14 days |
| 4 | 275465 | Ferrari Gasket - 275465 | $103.25 | Available, ships in 3-6 days |
| 5 | 292946 | Ferrari 812/F12 Exhaust Clamp Shim/Spacer - 292946 | $9.75 | In stock |
| 6 | 292945 | Ferrari Nut M8 x 1.25 - 292945 | $28.39 | Special order, ships in 7-14 days |
| 7 | 813392 | Ferrari RH Catalytic Converter Bracket - 813392 | $368.79 | Special order, ships in 7-14 days |
| 8 | 813393 | Ferrari LH Catalytic Converter Bracket - 813393 | $368.79 | Special order, ships in 7-14 days |
| 9 | 317260 | Ferrari Central Extension Complete - 317260 | $1,436.00 | Special order, ships in 7-14 days |
| 10 | 282998 | Ferrari Ring Clamp - 282998 | $65.55 | Special order, ships in 7-14 days |
| 11 | 874969 | Ferrari Tubo Gommadx Cpl Guaina D.7- - 874969 | $218.81 | Special order, ships in 7-14 days |
| 11 | 874972 | Ferrari Tubo Gommasx Cpl Guaina D.7- - 874972 | $216.35 | Special order, ships in 7-14 days |
| 12 | 874968 | Ferrari Tubo Gommadx Cpl Guaina D.5- - 874968 | $194.22 | Special order, ships in 7-14 days |
| 12 | 874971 | Ferrari Tubo Gommasx Cpl Guaina D.5- - 874971 | $191.76 | Special order, ships in 7-14 days |
| 13 | 13125570 | Ferrari Collar - 13125570 | Superseded | Order 13432070 instead |
| 14 | 13126970 | Ferrari Collar - 13126970 | $3.03 | Available, ships in 3-6 days |
| 15 | 866152 | Ferrari Clip - 866152 | $1.36 | Special order, ships in 7-14 days |
| 16 | 206536 | Ferrari Clip D.14 - 206536 | $0.92 | Special order, ships in 7-14 days |
| 17 | 80515700 | Ferrari Clip - 80515700 | $1.44 | Special order, ships in 7-14 days |
| 18 | 863467 | Ferrari Pipe Mounting Bracket - 2 Pipes D.16 - 863467 | $29.48 | Special order, ships in 7-14 days |
| 19 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 20 | 772695 | Ferrari GPF Sensor Bracket - 772695 | $63.90 | Special order, ships in 7-14 days |
| 20 | 813215 | Ferrari GPF Sensor Bracket - 813215 | $66.35 | Special order, ships in 7-14 days |
| 21 | 340691 | Ferrari Pressure Sensor - 340691 | $196.67 | Special order, ships in 7-14 days |
| 22 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 23 | 806791 | Ferrari Tubo Gomma D.7-14 90 - 806791 | $34.40 | Special order, ships in 7-14 days |
| 24 | 807844 | Ferrari Three Way Connector 8-8-6 - 807844 | $120.46 | Special order, ships in 7-14 days |
| 25 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 26 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
