Ferrari Monza SP2 — [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE (diagram 0067)

Exploded view of the [mechanical system] - d.18 - lifting the vehicle on the Ferrari Monza SP2, with 47 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

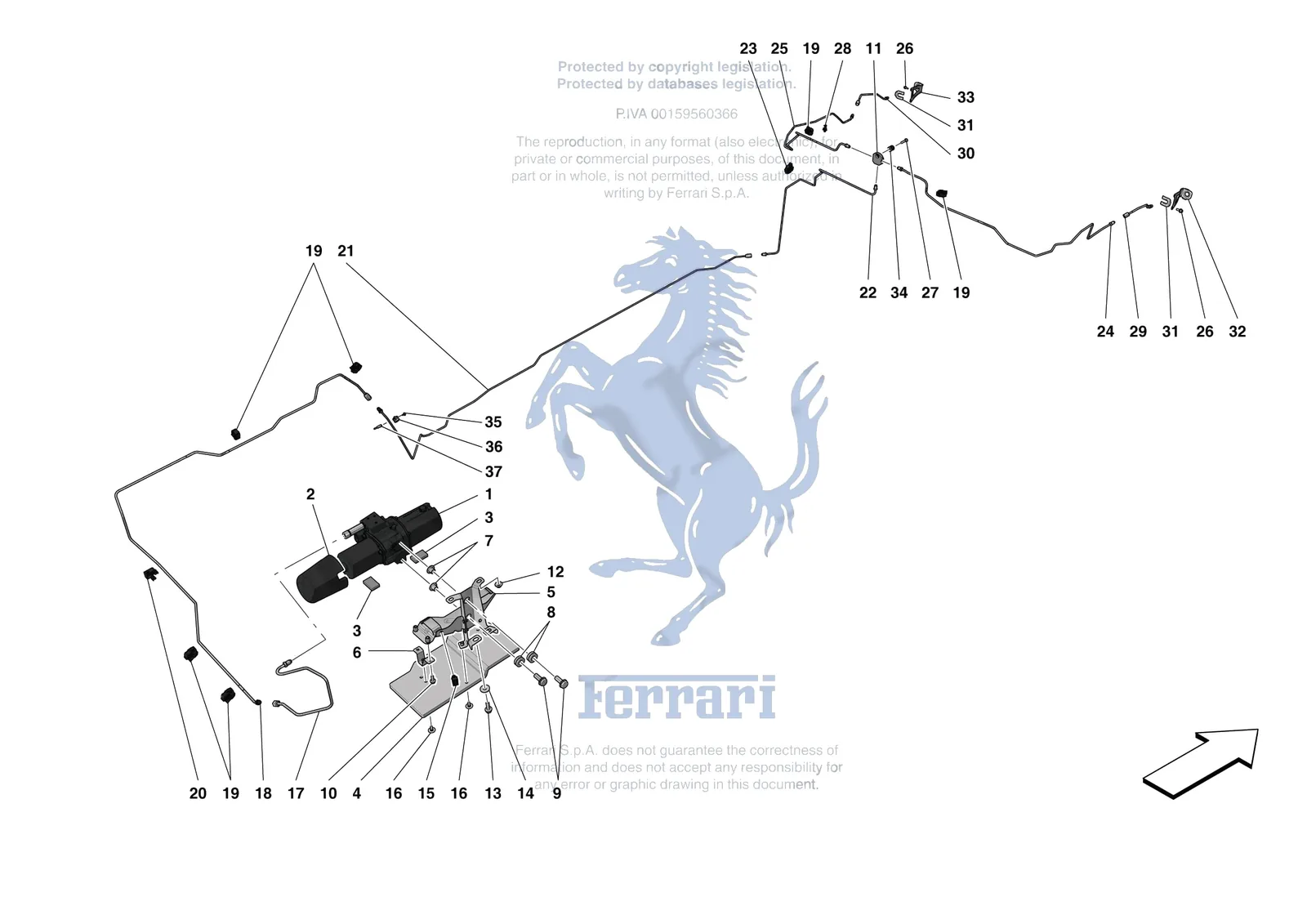

Ferrari Monza SP2 [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
294902Ferrari Damped Mounting - 294902SupersededOrder 267300 instead
335415Ferrari Electric Pump - 335415SupersededOrder 844232 instead
84702600Ferrari Heat Shield - 84702600SupersededOrder 292748 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
255049Ferrari Screw 10x1.5x32 - 255049SupersededOrder 304224 instead
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
284715Ferrari Underfloor Lift System Pipe - 284715SupersededOrder 289483 instead
1844232Ferrari Electric Pump - 844232$5,688.03Special order, ships in 7-14 days
2285319Ferrari Insulation - 285319$233.56Special order, ships in 7-14 days
3264740Ferrari Plug 40x24mm - 264740$1.53Special order, ships in 7-14 days
4292748Ferrari Heat Shield - 292748$442.56Special order, ships in 7-14 days
5285289Ferrari Pump Mounting Bracket - 285289$181.93Special order, ships in 7-14 days
6285314Ferrari Bracket - 285314$39.31Special order, ships in 7-14 days
7255048Ferrari Grommet Shim - 255048$5.65Special order, ships in 7-14 days
8255047Ferrari Grommet - 255047$7.40Available, ships in 3-6 days
9304224Ferrari Screw 10x1.5x28 - 304224$30.57Special order, ships in 7-14 days
10231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
11319349Ferrari Distributor Block - 319349$120.46Special order, ships in 7-14 days
1214039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
1215896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
13210246Ferrari Screw 8x25 - 210246$2.82Available, ships in 3-6 days
1413578305Ferrari Washer - 13578305$0.17Available, ships in 3-6 days
15256962Ferrari Clip D. 4.7X1 - 256962$1.36Special order, ships in 7-14 days
16256490Ferrari Screw TBEI M5 x 16 - 256490$3.91Available, ships in 3-6 days
17335382Ferrari Pipe From Pump - 335382$120.46Special order, ships in 7-14 days
18319660Ferrari Lift System Pipe Rear Section - 319660$270.44Special order, ships in 7-14 days
19234284Ferrari Clip - 234284$1.23Available, ships in 3-6 days
20294205Ferrari Clip - 294205$11.12Special order, ships in 7-14 days
21289483Ferrari Underfloor Lift System Pipe - 289483$172.10Special order, ships in 7-14 days
22318609Ferrari Pipe From Front Section To Block - 318609$174.55Special order, ships in 7-14 days
23234285Ferrari Clip - 234285$1.40Available, ships in 3-6 days
24318611Ferrari Pipe From Block To RH Front - 318611$218.81Special order, ships in 7-14 days
25335934Ferrari Pipe From Block To LH Front - 335934$194.22Special order, ships in 7-14 days
26256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
27319661Ferrari Screw - 319661$4.77Special order, ships in 7-14 days
28291408Ferrari Clip - 291408$0.34Special order, ships in 7-14 days
29334006Ferrari Pipe From RH Front Section T - 334006$135.20Special order, ships in 7-14 days
30334003Ferrari Pipe From LH Front Section T - 334003$130.29Special order, ships in 7-14 days
31116374Ferrari/Maserati Clip - 116374$3.20In stock
32333060Ferrari Front RH Bracket - 333060$110.61Special order, ships in 7-14 days
33333059Ferrari Front LH Bracket - 333059$98.32Special order, ships in 7-14 days
34267300Ferrari Mount Bushing - 267300$13.18In stock
35231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
3610441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
37178772Ferrari Stud - 178772$16.45Special order, ships in 7-14 days
