Ferrari Portofino M — [ENGINE] - B.18 - FUEL PUMPS (diagram 0023)

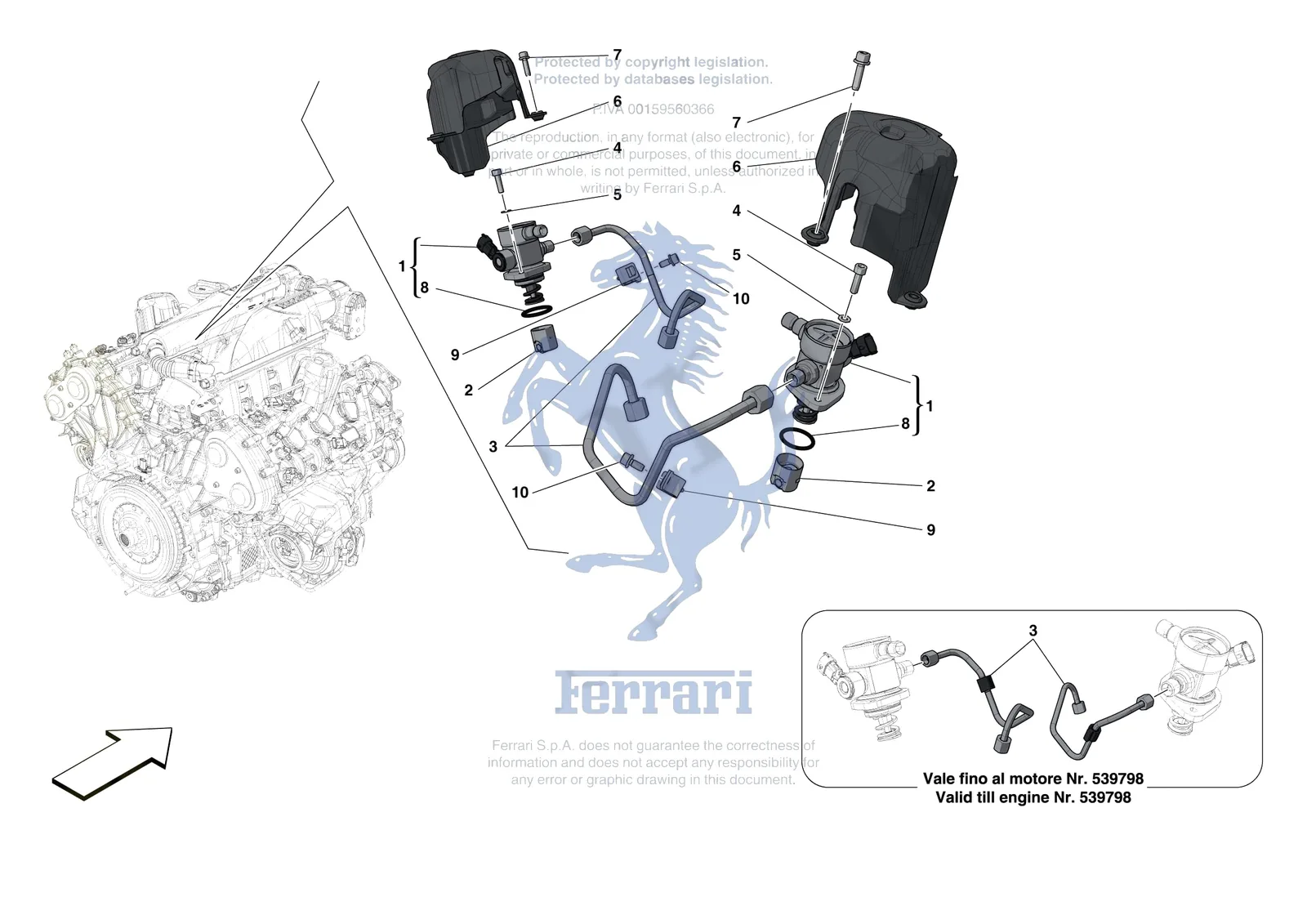

Exploded view of the [engine] - b.18 - fuel pumps on the Ferrari Portofino M, with 17 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari Portofino M [ENGINE] - B.18 - FUEL PUMPS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
14432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
1330624Ferrari Fuel Pump - 330624$962.99Available, ships in 3-6 days
2270601Ferrari Cup - 270601$100.93Special order, ships in 7-14 days
3321485Ferrari Fuel Pipe - 321485$164.95Special order, ships in 7-14 days
3297510Ferrari High Pressure Fuel Pipe - 297510$184.65Available, ships in 3-6 days
414305334Ferrari Screw M6 x 20 - 14305334$0.38Available, ships in 3-6 days
512639724Ferrari Washer - 12639724$0.08Available, ships in 3-6 days
6297021Ferrari GDI Pump Soundproofing Cover - 297021$177.25Special order, ships in 7-14 days
6793242Ferrari Gdi Pump Soundproofing Cover - 793242$150.17Special order, ships in 7-14 days
7231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
8769201Ferrari O-Ring - 769201$9.16Special order, ships in 7-14 days
9836236Ferrari Bracket - 836236$71.28Special order, ships in 7-14 days
10231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
