Ferrari Portofino M — [MECHANICAL SYSTEM] - D.3 - ENGINE INJECTION CONTROL (diagram 0050)

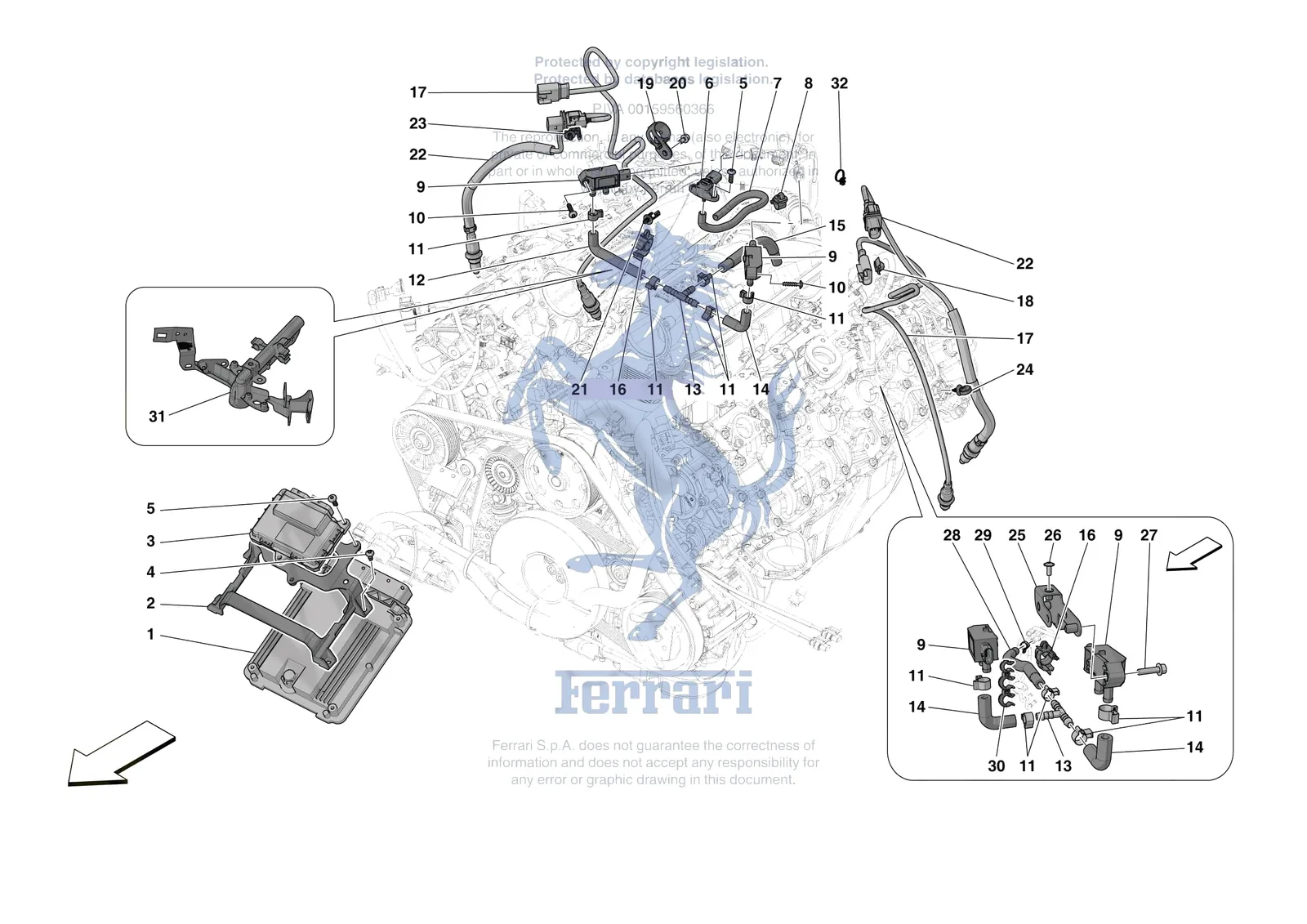

Exploded view of the [mechanical system] - d.3 - engine injection control on the Ferrari Portofino M, with 43 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Portofino M [MECHANICAL SYSTEM] - D.3 - ENGINE INJECTION CONTROL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0050.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 840252 | Ferrari RH Injection Cable Fastener - 840252 | Superseded | Order 786671 instead | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 86832200 | Ferrari Screw 5x12 - 86832200 | Superseded | Order 169813 instead | |
| 1 | 342591 | Ferrari Ignition ECU - 342591 | $2,553.69 | Special order, ships in 7-14 days |
| 2 | 796637 | Ferrari Motronic ECU Mounting Bracket - 796637 | $39.37 | Special order, ships in 7-14 days |
| 3 | 865036 | Ferrari Ion ECU Casing - 865036 | $2,248.03 | Special order, ships in 7-14 days |
| 4 | 332833 | Ferrari Screw - 332833 | $2.82 | Special order, ships in 7-14 days |
| 5 | 340221 | Ferrari Screw - 340221 | $1.59 | Special order, ships in 7-14 days |
| 6 | 309966 | Ferrari Air Pressure Sensor - 309966 | $151.00 | Special order, ships in 7-14 days |
| 7 | 878598 | Ferrari Tubo Sensore Aria (Ese) - 878598 | $51.67 | Special order, ships in 7-14 days |
| 8 | 250318 | Ferrari Clip - 250318 | $0.50 | Special order, ships in 7-14 days |
| 9 | 340691 | Ferrari Pressure Sensor - 340691 | $196.67 | Special order, ships in 7-14 days |
| 10 | 308398 | Ferrari Screw - 308398 | $0.92 | Special order, ships in 7-14 days |
| 11 | 13125470 | Ferrari Collar - 13125470 | Superseded | Order 13126970 instead |
| 12 | 912350 | Ferrari Tubo Gomma 90? D.7X14 - 912350 | $34.44 | Special order, ships in 7-14 days |
| 13 | 340699 | Ferrari T Union - 340699 | Superseded | Order 913829 instead |
| 13 | 913829 | Ferrari Three Way - 913829 | $10.06 | Special order, ships in 7-14 days |
| 14 | 340700 | Ferrari Tubo Gomma D. 7-14X 34 90G - 340700 | $29.52 | Special order, ships in 7-14 days |
| 15 | 878600 | Ferrari Tubo Gomma D.7X14 Cpl Guaina - 878600 | $81.23 | Special order, ships in 7-14 days |
| 16 | 247440 | Ferrari Clip - 247440 | $1.30 | Available, ships in 3-6 days |
| 17 | 300507 | Ferrari Rear Oxygen Sensor - 300507 | Superseded | Order 784822 instead |
| 17 | 784822 | Ferrari Rear Oxygen Sensor - 784822 | $105.00 | In stock |
| 18 | 252473 | Ferrari Clip - 252473 | $3.47 | Special order, ships in 7-14 days |
| 19 | 244216 | Ferrari Clip - 244216 | $8.30 | Special order, ships in 7-14 days |
| 19 | 244225 | Ferrari Clip - 244225 | $9.62 | Special order, ships in 7-14 days |
| 20 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 20 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 21 | 913592 | Ferrari Spring Clip D.9 - 913592 | $0.90 | Special order, ships in 7-14 days |
| 22 | 770768 | Ferrari Portofino Front Oxygen Sensor - 770768 | $248.80 | In stock |
| 23 | 793946 | Ferrari Clip - 793946 | $3.26 | Special order, ships in 7-14 days |
| 24 | 786671 | Ferrari Clip - 786671 | $2.59 | Special order, ships in 7-14 days |
| 25 | 918974 | Ferrari LH Pressure Sensor Bracket - 918974 | $46.75 | Special order, ships in 7-14 days |
| 26 | 169813 | Ferrari Screw M5 x 12 - 169813 | $1.80 | Special order, ships in 7-14 days |
| 26 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 27 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 28 | 918982 | Ferrari Complete Rubber Pipe D.7X14 - 918982 | $86.15 | Special order, ships in 7-14 days |
| 29 | 13126970 | Ferrari Collar - 13126970 | $3.03 | Available, ships in 3-6 days |
| 30 | 919302 | Ferrari Hose Locating Clip D.11-14 - 919302 | $2.61 | Special order, ships in 7-14 days |
| 31 | 917911 | Ferrari Oxygen Sensor Bracket - 917911 | $76.30 | Special order, ships in 7-14 days |
| 32 | 869936 | Ferrari Clip - 869936 | $1.48 | Special order, ships in 7-14 days |
