Ferrari Portofino M — [MECHANICAL SYSTEM] - D.16 - COOLING SYSTEM PIPES (diagram 0065)

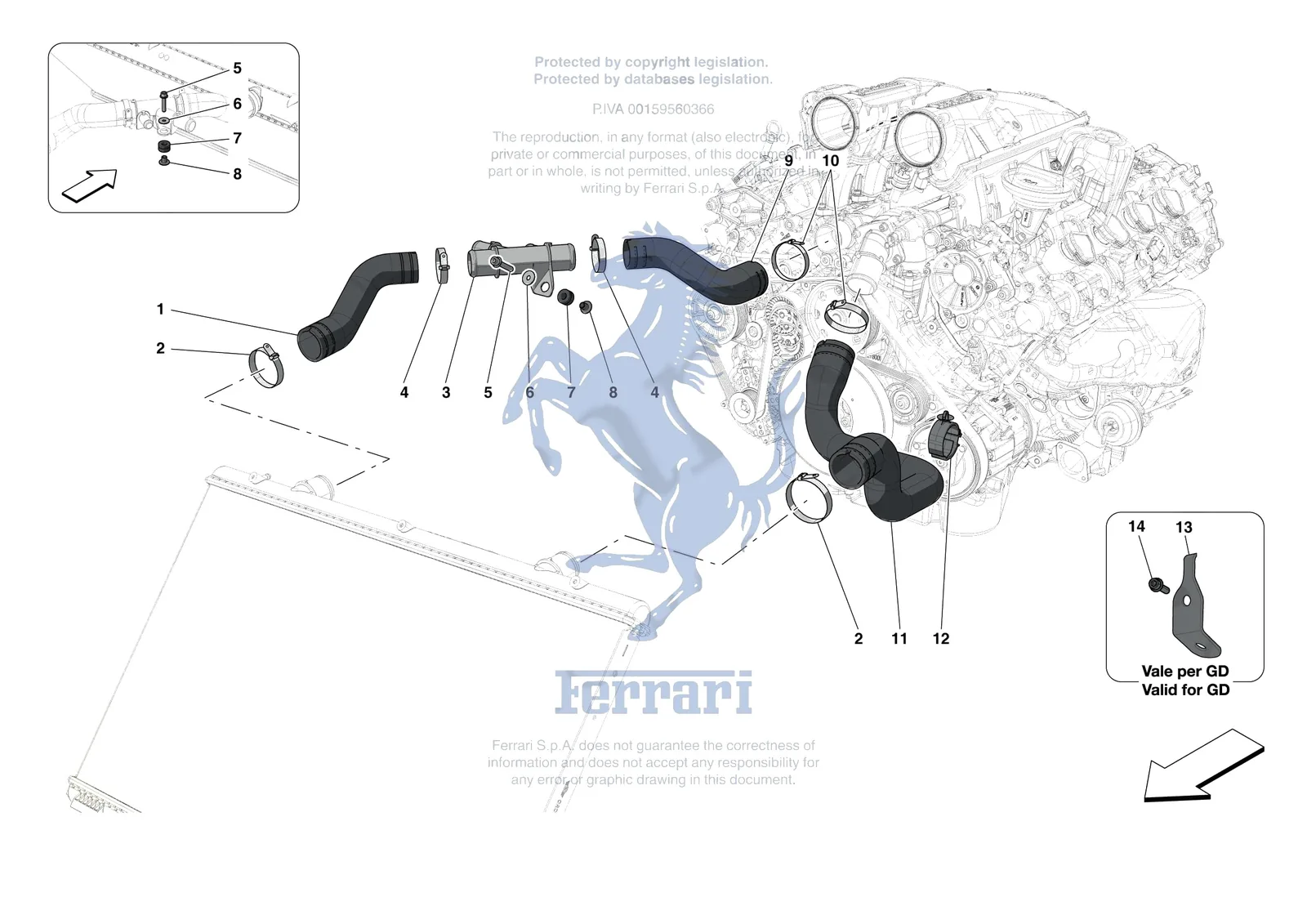

Exploded view of the [mechanical system] - d.16 - cooling system pipes on the Ferrari Portofino M, with 22 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Portofino M [MECHANICAL SYSTEM] - D.16 - COOLING SYSTEM PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0065.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 216568 | Ferrari Screw 6x30 - 216568 | Superseded | Order 231621 instead | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 336918 | Ferrari Water Return Hose on Radiator - 336918 | $103.38 | Special order, ships in 7-14 days |
| 2 | 262116 | Ferrari Collar - 262116 | $6.10 | Available, ships in 3-6 days |
| 3 | 336920 | Ferrari Four Way Connector - 336920 | $34.44 | Special order, ships in 7-14 days |
| 4 | 262114 | Ferrari Collar - 262114 | $2.38 | Available, ships in 3-6 days |
| 5 | 231621 | Ferrari Allen Screw M6 x 30 TCEI - 231621 | $0.73 | Available, ships in 3-6 days |
| 6 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 7 | 103549 | Ferrari Grommet - 103549 | $2.80 | In stock |
| 8 | 149707 | Ferrari Spacer - 149707 | $2.13 | Available, ships in 3-6 days |
| 9 | 336919 | Ferrari Manicotto Tubo Rit. Radiat.H - 336919 | $118.16 | Special order, ships in 7-14 days |
| 10 | 296345 | Ferrari Collar - 296345 | $5.00 | Special order, ships in 7-14 days |
| 11 | 334845 | Ferrari Water Delivery Hose - 334845 | $199.41 | Special order, ships in 7-14 days |
| 11 | 336193 | Ferrari Water Delivery Hose - 336193 | $221.59 | Special order, ships in 7-14 days |
| 12 | 278577 | Ferrari Tube Clamp D.30-40mm - 278577 | $3.68 | Special order, ships in 7-14 days |
| 13 | 787124 | Ferrari Water Delivery Pipe Bracket - 787124 | $17.46 | Special order, ships in 7-14 days |
| 14 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
