Ferrari Purosangue — [ENGINE] - B.29 - AC COMPRESSOR (diagram 0034)

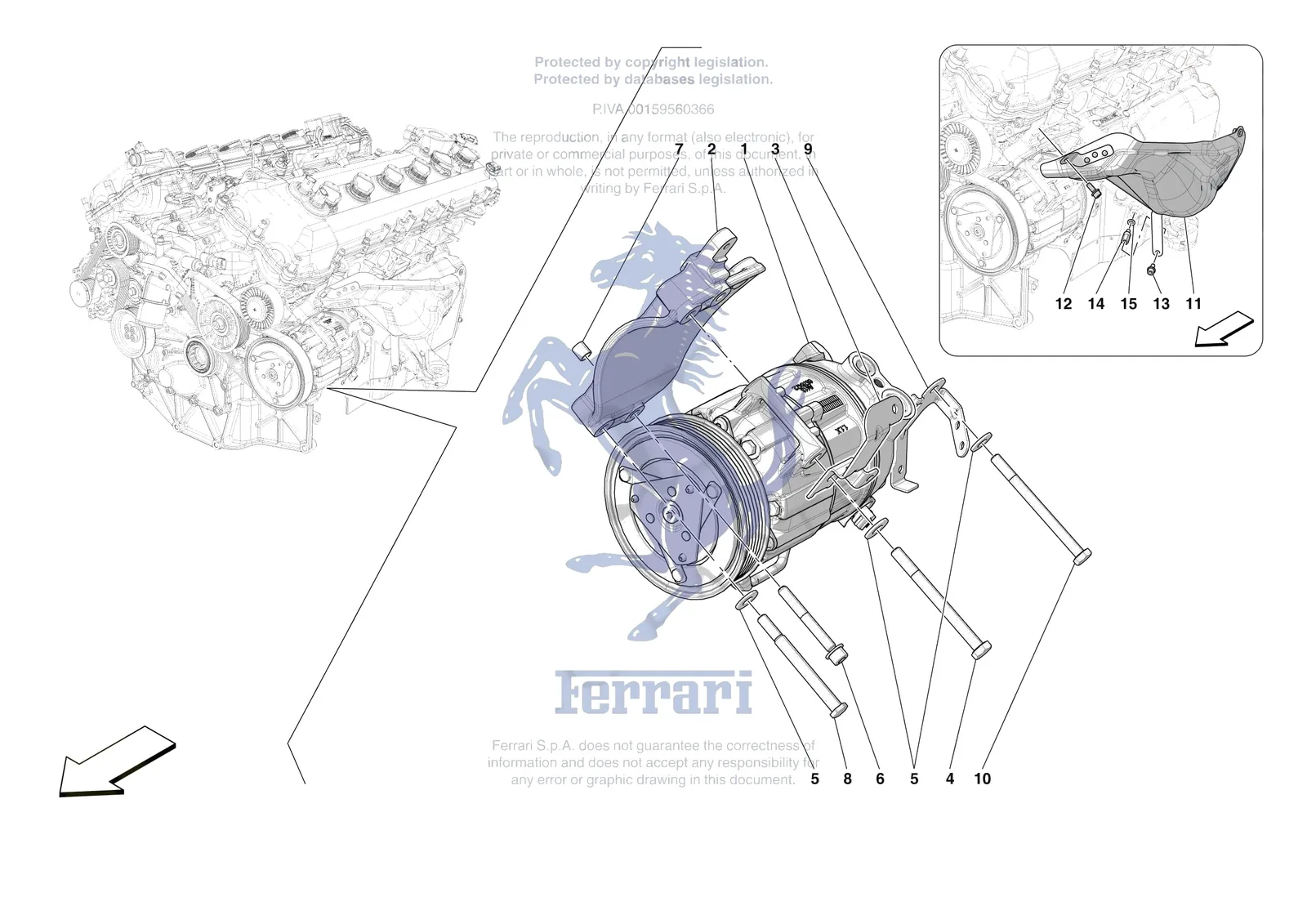

Exploded view of the [engine] - b.29 - ac compressor on the Ferrari Purosangue, with 19 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [ENGINE] - B.29 - AC COMPRESSOR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0034.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 320668 | Ferrari Compressore Delphi Controll - 320668 | Price on request | Contact us for price and availability | |
| 11197779 | Ferrari Washer - 11197779 | Superseded | Order 11197774 instead | |
| 1 | 832556 | Ferrari Compressore Delphi Controll - 832556 | $2,290.80 | Special order, ships in 7-14 days |
| 2 | 919623 | Ferrari Compressor Mounting - 919623 | $393.93 | Special order, ships in 7-14 days |
| 3 | 887332 | Ferrari Compressor Mount - 887332 | $39.37 | Special order, ships in 7-14 days |
| 4 | 16045024 | Ferrari Exhaust Bolt - 16045024 | $1.91 | In stock |
| 5 | 11186374 | Ferrari Washer - 11186374 | $2.13 | Special order, ships in 7-14 days |
| 6 | 231630 | Ferrari Screw 8x65 - 231630 | $1.88 | Available, ships in 3-6 days |
| 7 | 100041 | Ferrari Dowel - 100041 | $14.22 | Available, ships in 3-6 days |
| 8 | 254310 | Ferrari Calibrated Screw - 254310 | $32.79 | Special order, ships in 7-14 days |
| 9 | 846594 | Ferrari Cable Mounting Bracket - 846594 | $39.37 | Special order, ships in 7-14 days |
| 10 | 16046134 | Ferrari Screw 8x100 - 16046134 | $2.61 | Available, ships in 3-6 days |
| 11 | 817382 | Ferrari Compressor Heat Shield - 817382 | $344.69 | Special order, ships in 7-14 days |
| 12 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 13 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 14 | 837574 | Ferrari Stud Bolt - 837574 | $20.37 | Special order, ships in 7-14 days |
| 15 | 11197774 | Ferrari Conic Washer 6.4x12x1.2 - 11197774 | $0.12 | Available, ships in 3-6 days |
