Ferrari Purosangue — [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM (diagram 0039)

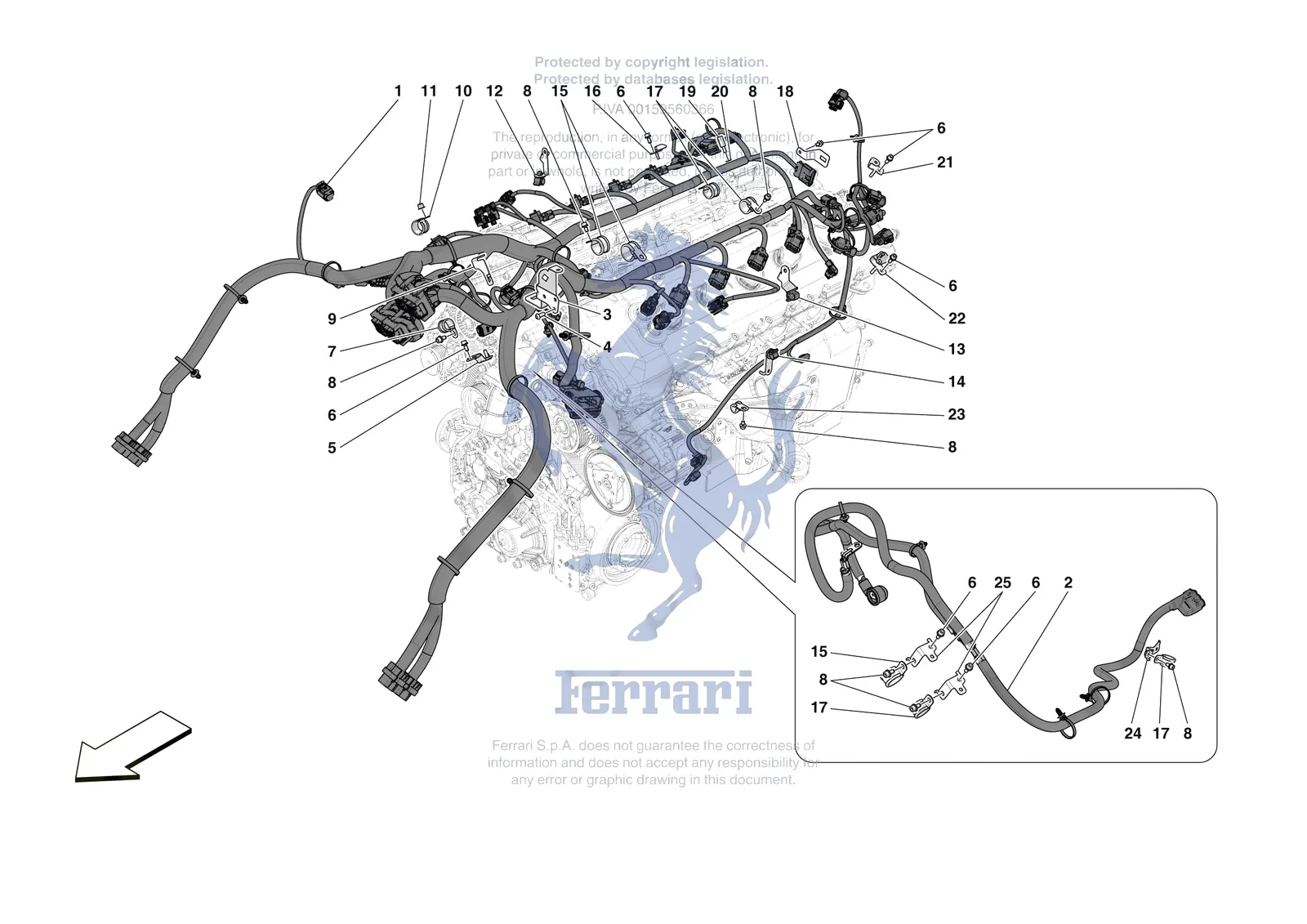

Exploded view of the [engine] - b.34 - engine electrical system on the Ferrari Purosangue, with 30 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0039.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 11197779 | Ferrari Washer - 11197779 | Superseded | Order 11197774 instead | |
| 1 | 951130 | Ferrari Injection Cable - 951130 | Superseded | Order 964272 instead |
| 1 | 964272 | Ferrari Injection Cable - 964272 | $5,121.48 | Special order, ships in 7-14 days |
| 2 | 953492 | Ferrari Services Cable - 953492 | $1,157.24 | Special order, ships in 7-14 days |
| 3 | 840918 | Ferrari Bracket - 840918 | $56.60 | Special order, ships in 7-14 days |
| 4 | 306938 | Ferrari Screw - 306938 | $0.82 | Special order, ships in 7-14 days |
| 5 | 945282 | Ferrari Fastener Bracket - 945282 | $44.29 | Special order, ships in 7-14 days |
| 6 | 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days |
| 6 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 7 | 10441690 | Ferrari P Clip D18mm - 10441690 | $3.91 | Special order, ships in 7-14 days |
| 8 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 9 | 772633 | Ferrari Ancillary Cable Fastener Bra - 772633 | $24.11 | Special order, ships in 7-14 days |
| 10 | 10441990 | Ferrari P Clip Bracket With Sheath - 10441990 | $1.42 | Available, ships in 3-6 days |
| 11 | 228265 | Ferrari Nut 6x1x9 - 228265 | $0.40 | Available, ships in 3-6 days |
| 12 | 856176 | Ferrari Compl. Injection Cable Faste - 856176 | $34.44 | Special order, ships in 7-14 days |
| 13 | 856174 | Ferrari Compl. Injection Cable Faste - 856174 | $34.44 | Special order, ships in 7-14 days |
| 14 | 868752 | Ferrari Compl. Injection Cable Faste - 868752 | $44.29 | Special order, ships in 7-14 days |
| 15 | 10442090 | Ferrari P Clip Bracket With Sheath D26 - 10442090 | $1.42 | Available, ships in 3-6 days |
| 16 | 895075 | Ferrari Injection Cable Fastener Bra - 895075 | $39.37 | Special order, ships in 7-14 days |
| 17 | 10441890 | Ferrari P Clip Bracket With Sheath D22 - 10441890 | $1.17 | Available, ships in 3-6 days |
| 18 | 750364 | Ferrari Disconnector Fastener Bracke - 750364 | $18.19 | Special order, ships in 7-14 days |
| 19 | 339377 | Ferrari Stud Bolt - 339377 | $16.69 | Special order, ships in 7-14 days |
| 20 | 11197774 | Ferrari Conic Washer 6.4x12x1.2 - 11197774 | $0.12 | Available, ships in 3-6 days |
| 21 | 840921 | Ferrari Injection Cable Fastener Bra - 840921 | $31.93 | Special order, ships in 7-14 days |
| 22 | 893701 | Ferrari Injection Cable Fastener Bra - 893701 | $49.22 | Special order, ships in 7-14 days |
| 23 | 10450290 | Ferrari Bracket with Sheath D.12mm - 10450290 | $8.51 | Available, ships in 3-6 days |
| 24 | 913014 | Ferrari Ancillaries Cable Locator Br - 913014 | $76.19 | Special order, ships in 7-14 days |
| 25 | 750606 | Ferrari Ancillary Cable Fastener Bra - 750606 | $31.99 | Special order, ships in 7-14 days |
