Ferrari Purosangue — [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES (diagram 0044)

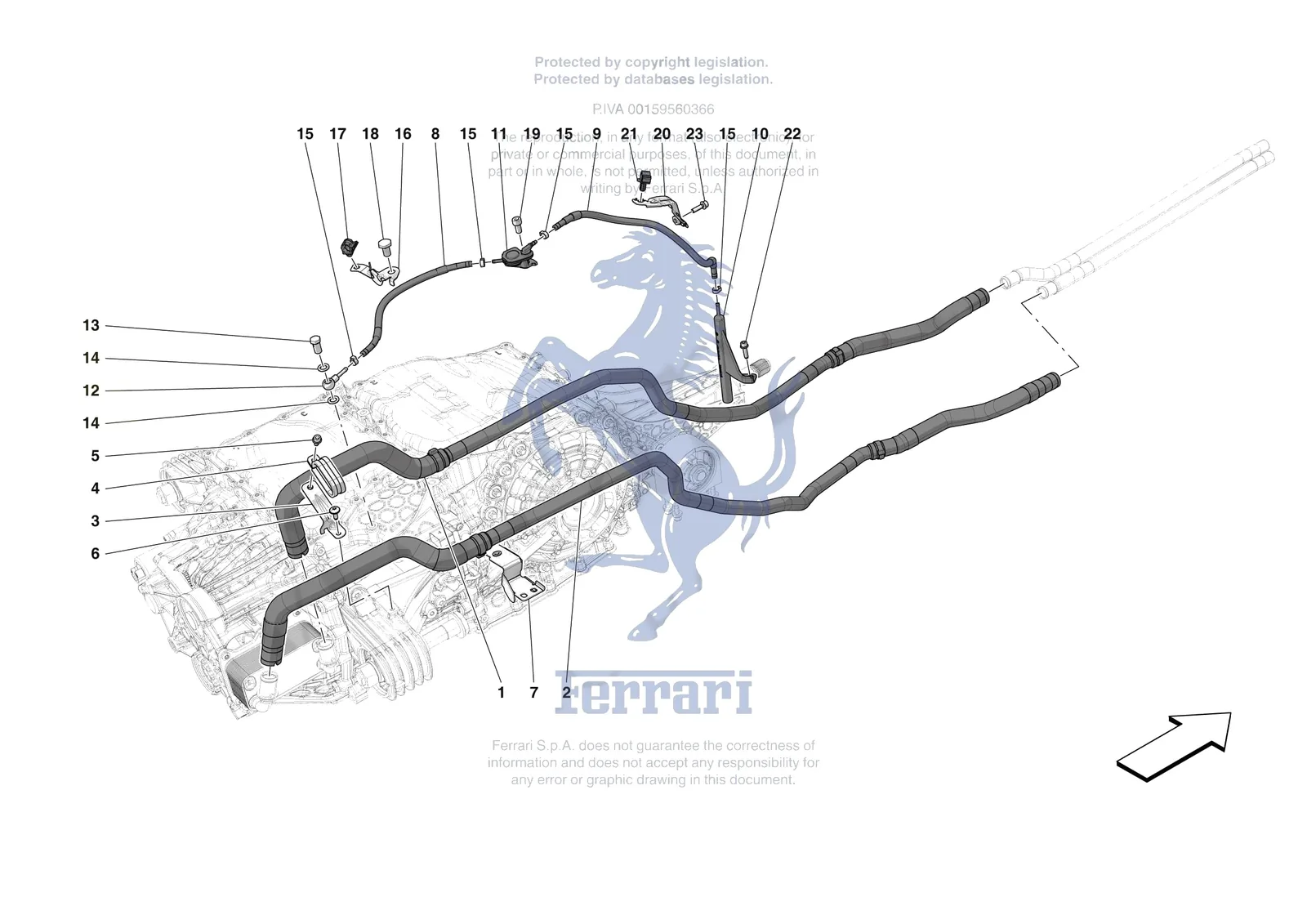

Exploded view of the [gearbox] - c.03.02 - gearbox oil heat exchanger and pipes - heat exchanger and rear pipes on the Ferrari Purosangue, with 29 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0044.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 1 | 791559 | Ferrari Water Delivery Pipe On Gearb - 791559 | $590.91 | Special order, ships in 7-14 days |
| 2 | 791558 | Ferrari Water Return Pipe On Gearbox - 791558 | $640.17 | Special order, ships in 7-14 days |
| 3 | 798013 | Ferrari Pipe Mounting Bracket - 798013 | $44.29 | Special order, ships in 7-14 days |
| 4 | 61712600 | Ferrari P Clip Bracket With Sheath D28 - 61712600 | $3.26 | Available, ships in 3-6 days |
| 5 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 6 | 774707 | Ferrari Torx Screw M6X18 Ros.Imp. D.1 - 774707 | $5.65 | Special order, ships in 7-14 days |
| 7 | 905699 | Ferrari Rear Water Pipe Retainer Blo - 905699 | $100.93 | Special order, ships in 7-14 days |
| 8 | 954057 | Ferrari Tubo Gomma Su Cambio - 954057 | $58.98 | Special order, ships in 7-14 days |
| 9 | 934891 | Ferrari Tubo Gomma Anteriore Su Camb - 934891 | $88.49 | Special order, ships in 7-14 days |
| 10 | 785861 | Ferrari Gearbox Breather Pipe - 785861 | $56.60 | Special order, ships in 7-14 days |
| 11 | 935822 | Ferrari Complete Tank - 935822 | $103.25 | Special order, ships in 7-14 days |
| 12 | 954054 | Ferrari Eyelet Union for Breather - 954054 | $56.52 | Special order, ships in 7-14 days |
| 13 | 11903811 | Ferrari Banjo Bolt M10 x 1.25 - 11903811 | $8.05 | Special order, ships in 7-14 days |
| 14 | 10284460 | Ferrari Washer - 10284460 | $0.31 | Available, ships in 3-6 days |
| 15 | 13432570 | Ferrari Collar - 13432570 | $2.82 | Special order, ships in 7-14 days |
| 16 | 954065 | Ferrari Bracket for Breather Pipe - 954065 | $41.76 | Special order, ships in 7-14 days |
| 17 | 292112 | Ferrari CLIP - 292112 | Price on request | Contact us for price and availability |
| 18 | 803878 | Ferrari Hex Head Screw M10 Testa Rib. - 803878 | $12.00 | Special order, ships in 7-14 days |
| 19 | 14306224 | Ferrari Screw M8 x 16 - 14306224 | $0.38 | Available, ships in 3-6 days |
| 20 | 938373 | Ferrari Bracket - Transmission Heat Exchanger Pipe - 938373 | $68.83 | Special order, ships in 7-14 days |
| 21 | 262559 | Ferrari Clip - 262559 | $1.78 | Available, ships in 3-6 days |
| 22 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 23 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
