Ferrari Purosangue — [MECHANICAL SYSTEM] - D.3 - ENGINE INJECTION CONTROL (diagram 0051)

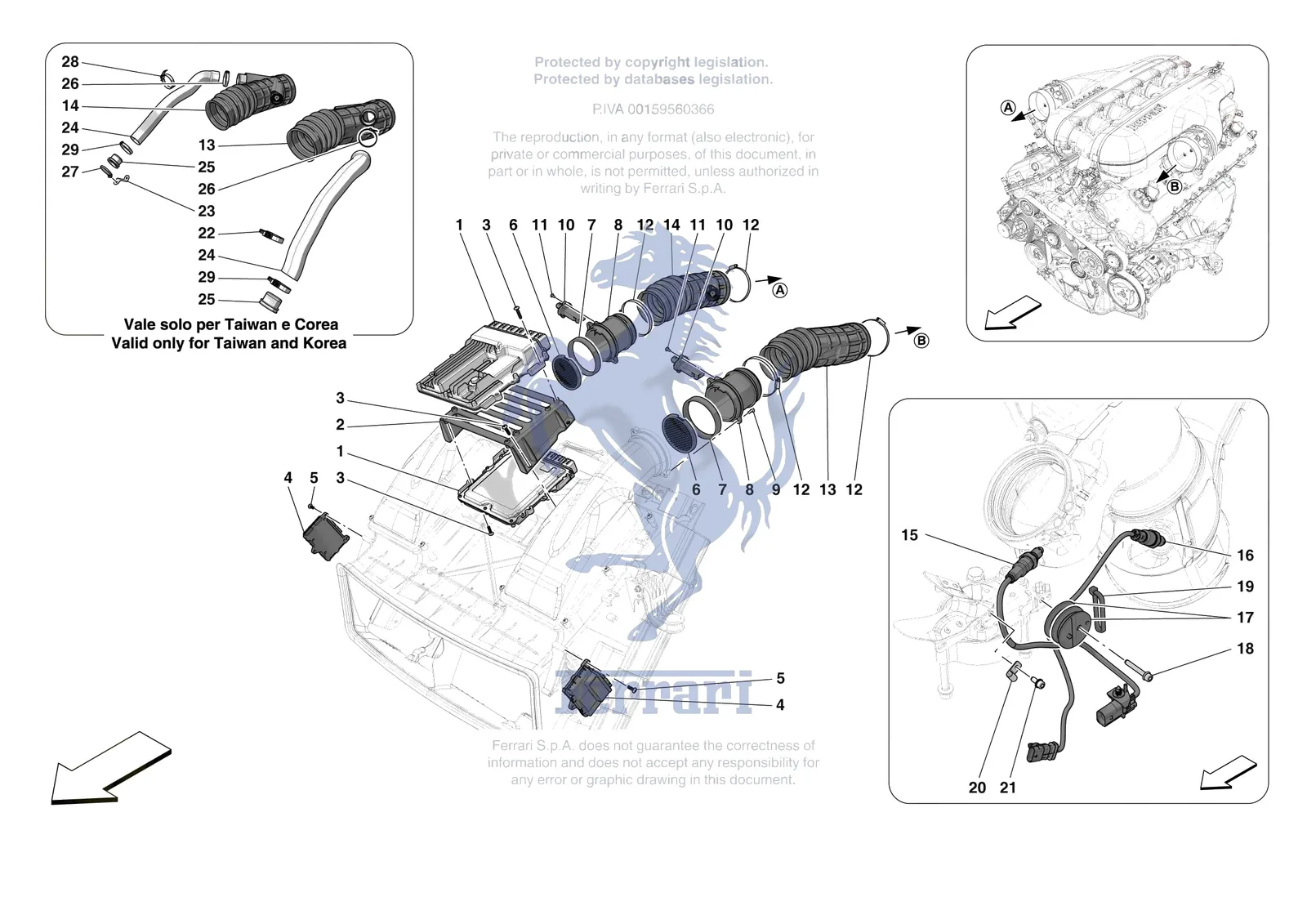

Exploded view of the [mechanical system] - d.3 - engine injection control on the Ferrari Purosangue, with 36 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [MECHANICAL SYSTEM] - D.3 - ENGINE INJECTION CONTROL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0051.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 1 | 935117 | Ferrari Centralina Accensione Mg1 Cp - 935117 | $2,749.16 | Special order, ships in 7-14 days |
| 2 | 885758 | Ferrari Ignition ECU Mounting Bracke - 885758 | $73.85 | Special order, ships in 7-14 days |
| 3 | 308398 | Ferrari Screw - 308398 | $0.92 | Special order, ships in 7-14 days |
| 4 | 941421 | Ferrari Ion ECU Casing - 941421 | $2,224.61 | Special order, ships in 7-14 days |
| 4 | 942601 | Ferrari Ion ECU Casing - 942601 | Superseded | Order 941421 instead |
| 5 | 340221 | Ferrari Screw - 340221 | $1.59 | Special order, ships in 7-14 days |
| 6 | 841336 | Ferrari Square Mesh Grille For Mass - 841336 | $18.55 | Special order, ships in 7-14 days |
| 7 | 327132 | Ferrari Adhesive Foam - 327132 | $39.31 | Special order, ships in 7-14 days |
| 8 | 845077 | Ferrari RH Intake Line Air Flow Sens - 845077 | $98.32 | Special order, ships in 7-14 days |
| 9 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 10 | 297280 | Ferrari Air Flow Sensor - 297280 | $237.66 | In stock |
| 11 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 12 | 323688 | Ferrari Ring Clamp - 323688 | $8.93 | Special order, ships in 7-14 days |
| 13 | 778398 | Ferrari Compl. RH Air Intake Hose Un - 778398 | $393.93 | Special order, ships in 7-14 days |
| 13 | 999556 | Ferrari Compl. RH Air Intake Hose Un - 999556 | $640.17 | Special order, ships in 7-14 days |
| 14 | 778496 | Ferrari Compl. LH Air Intake Hose Un - 778496 | $393.93 | Special order, ships in 7-14 days |
| 14 | 999553 | Ferrari Compl. LH Air Intake Hose Un - 999553 | $640.17 | Special order, ships in 7-14 days |
| 15 | 787778 | Ferrari Front Oxygen Sensor - 787778 | $262.24 | Available, ships in 3-6 days |
| 16 | 787780 | Ferrari Rear Oxygen Sensor - 787780 | $240.39 | Available, ships in 3-6 days |
| 17 | 850280 | Ferrari Oxygen Sensor Cable Spool - 850280 | $22.14 | Special order, ships in 7-14 days |
| 18 | 231623 | Ferrari Screw M6 x 40 TCEI - 231623 | $1.02 | Available, ships in 3-6 days |
| 19 | 206739 | Ferrari Tear Clip - 206739 | $16.37 | Available, ships in 3-6 days |
| 20 | 10418301 | Ferrari Clamp 8mm - 10418301 | $0.86 | Available, ships in 3-6 days |
| 21 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 22 | 85141400 | Ferrari Clip - 85141400 | $1.36 | Special order, ships in 7-14 days |
| 23 | 999769 | Ferrari Lambda Plug Mounting Bracket - 999769 | $64.00 | Special order, ships in 7-14 days |
| 24 | 997445 | Ferrari Coiled Pipe - 997445 | $295.43 | Special order, ships in 7-14 days |
| 25 | 888005 | Ferrari Lambda Pipe Plug - 888005 | $9.16 | Special order, ships in 7-14 days |
| 26 | 262116 | Ferrari Collar - 262116 | $6.10 | Available, ships in 3-6 days |
| 27 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 28 | 801866 | Ferrari Clamp - 801866 | $1.67 | Special order, ships in 7-14 days |
| 29 | 262114 | Ferrari Collar - 262114 | $2.38 | Available, ships in 3-6 days |
