Ferrari Purosangue — [MECHANICAL SYSTEM] - D.6 - EMISSIONS CONTROL SYSTEM (diagram 0055)

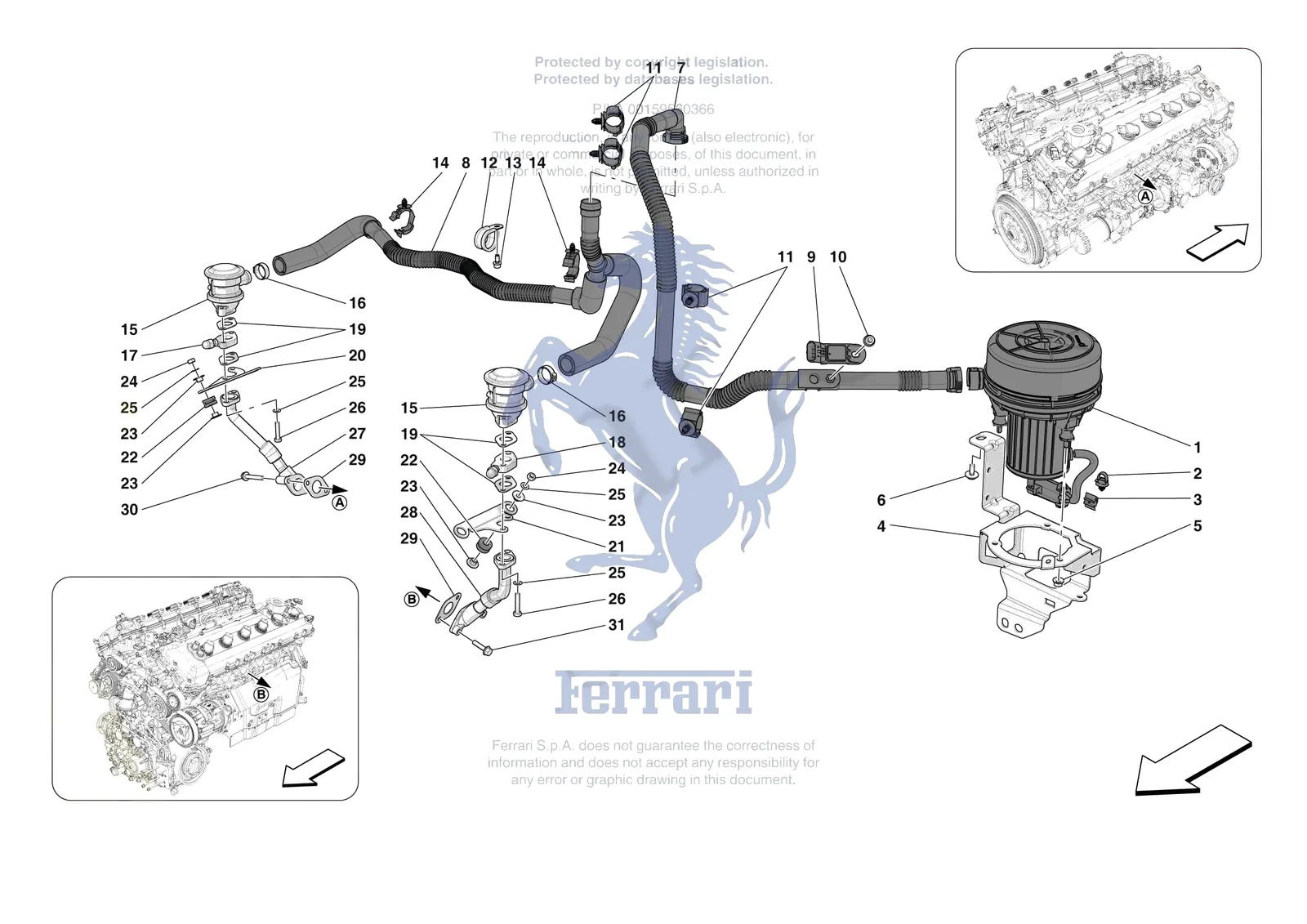

Exploded view of the [mechanical system] - d.6 - emissions control system on the Ferrari Purosangue, with 45 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [MECHANICAL SYSTEM] - D.6 - EMISSIONS CONTROL SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0055.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 14569480 | Ferrari Clip 10x3.8 Black - 14569480 | $0.54 | Available, ships in 3-6 days | |
| 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 252813 | Ferrari Shim - 252813 | Superseded | Order 264020 instead | |
| 210653 | Ferrari Spacer - 210653 | Superseded | Order 264020 instead | |
| 12601224 | Ferrari Washer - 12601224 | Superseded | Order 12601274 instead | |
| 12605370 | Ferrari Washer - 12605370 | Superseded | Order 12601274 instead | |
| 12605371 | Ferrari Washer - 12605371 | Superseded | Order 12601274 instead | |
| 680232 | Ferrari Washer - 680232 | Superseded | Order 12601274 instead | |
| 12605374 | Ferrari Wavy Washer - 12605374 | Superseded | Order 12601274 instead | |
| 1 | 247795 | Ferrari Secondary Air Pump - 247795 | $1,229.39 | Special order, ships in 7-14 days |
| 2 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 3 | 253769 | Ferrari Clip - 253769 | $1.17 | Special order, ships in 7-14 days |
| 4 | 876392 | Ferrari Bracket - 876392 | $150.17 | Special order, ships in 7-14 days |
| 5 | 14040611 | Ferrari Nut M6 - 14040611 | $0.57 | Available, ships in 3-6 days |
| 6 | 792394 | Ferrari Screw TE M6 x 18 - 792394 | $0.84 | Available, ships in 3-6 days |
| 7 | 876337 | Ferrari Secondary Air System Pipe From Pump to Engine - 876337 | $344.69 | Special order, ships in 7-14 days |
| 8 | 833474 | Ferrari Valve Side Secondary Air Sys - 833474 | $344.69 | Special order, ships in 7-14 days |
| 9 | 282849 | Ferrari Pressure Sensor - 282849 | $61.16 | Special order, ships in 7-14 days |
| 10 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 11 | 248061 | Ferrari Clip - 248061 | $4.12 | Available, ships in 3-6 days |
| 12 | 10442090 | Ferrari P Clip Bracket With Sheath D26 - 10442090 | $1.42 | Available, ships in 3-6 days |
| 13 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 14 | 917513 | Ferrari Clip - 917513 | $11.58 | Special order, ships in 7-14 days |
| 15 | 284235 | Ferrari Secondary Air System Valve - 284235 | $417.97 | Available, ships in 3-6 days |
| 16 | 178053 | Ferrari Clip - 178053 | $2.64 | In stock |
| 17 | 55018763 | Ferrari RH Secondary Air System Valv - 55018763 | $43.68 | Special order, ships in 7-14 days |
| 17 | 264020 | Ferrari RH Spacer Assembly - 264020 | $110.61 | Special order, ships in 7-14 days |
| 18 | 55018779 | Ferrari LH Secondary Air System Valv - 55018779 | $32.76 | Special order, ships in 7-14 days |
| 18 | 286011 | Ferrari LH Spacer Assembly - 286011 | $98.32 | Special order, ships in 7-14 days |
| 19 | 186781 | Ferrari/Maserati Secondary Air Gasket - 186781 | $6.05 | In stock |
| 20 | 331919 | Ferrari RH Secondary Air Pipe Mounting Bracket - 331919 | $19.89 | Special order, ships in 7-14 days |
| 21 | 331920 | Ferrari LH Secondary Air Pipe Mounting Bracket - 331920 | $19.89 | Special order, ships in 7-14 days |
| 22 | 177576 | Ferrari Cable Grommet - 177576 | $4.12 | Available, ships in 3-6 days |
| 23 | 183898 | Ferrari Bush - 183898 | $5.44 | Special order, ships in 7-14 days |
| 24 | 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead |
| 25 | 12601274 | Ferrari Wavy Washer 6mm - 12601274 | $1.04 | Available, ships in 3-6 days |
| 26 | 10902824 | Ferrari Screw M6 x 30 - 10902824 | $0.17 | Available, ships in 3-6 days |
| 27 | 782955 | Ferrari Compl. RH Secondary Air Inle - 782955 | $369.30 | Special order, ships in 7-14 days |
| 28 | 985795 | Ferrari Compl. LH Secondary Air Inle - 985795 | $369.30 | Special order, ships in 7-14 days |
| 29 | 202980 | Ferrari Gasket - 202980 | $4.89 | Available, ships in 3-6 days |
| 30 | 16286524 | Ferrari Screw - 16286524 | $1.30 | Available, ships in 3-6 days |
| 31 | 16286124 | Ferrari Screw M6x20 - 16286124 | $0.71 | Special order, ships in 7-14 days |
