Ferrari Purosangue — [MECHANICAL SYSTEM] - D.08.02 - EXHAUST SYSTEM - REAR (diagram 0058)

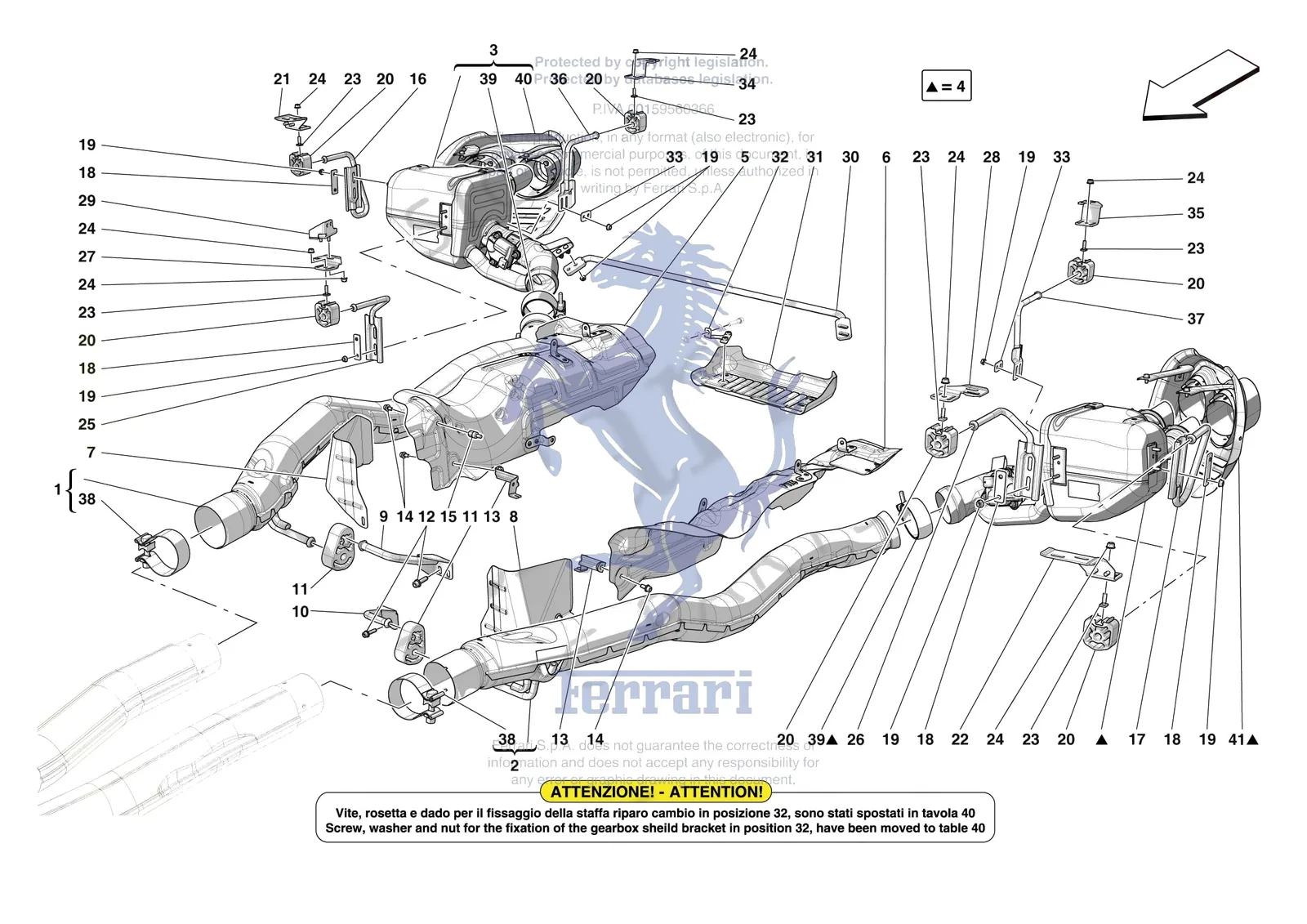

Exploded view of the [mechanical system] - d.08.02 - exhaust system - rear on the Ferrari Purosangue, with 60 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari Purosangue [MECHANICAL SYSTEM] - D.08.02 - EXHAUST SYSTEM - REAR exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
14432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
1902424Ferrari Compl. RH Rear Extension - 902424$1,050.54Special order, ships in 7-14 days
2902428Ferrari Compl. LH Rear Extension - 902428$1,050.54Special order, ships in 7-14 days
3857055Ferrari Compl. RH Exhaust Silencer - 857055$10,363.89Special order, ships in 7-14 days
3870454Ferrari Compl. RH Exhaust Silencer - 870454$10,363.89Special order, ships in 7-14 days
3870457Ferrari Compl. RH Exhaust Silencer - 870457$10,363.89Special order, ships in 7-14 days
4857061Ferrari Compl.LH Exhaust Silencer - 857061$10,363.89Special order, ships in 7-14 days
4870456Ferrari Compl.LH Exhaust Silencer - 870456$10,363.89Special order, ships in 7-14 days
4870458Ferrari Compl.LH Exhaust Silencer - 870458$10,363.89Special order, ships in 7-14 days
5861130Ferrari Compl. RH Gearbox Heat Shiel - 861130$369.30Special order, ships in 7-14 days
6861336Ferrari Compl. LH Gearbox Heat Shiel - 861336$418.56Special order, ships in 7-14 days
7985134Ferrari RH Gearbox Front Mount Heat - 985134$76.30Special order, ships in 7-14 days
8985927Ferrari LH Gearbox Front Mount Heat - 985927$76.30Special order, ships in 7-14 days
9750137Ferrari RH Extension Fastener Bracke - 750137$135.39Special order, ships in 7-14 days
10750140Ferrari LH Extension Fastener Bracke - 750140$135.39Special order, ships in 7-14 days
11307258Ferrari Plug - 307258$41.76Special order, ships in 7-14 days
12231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
13918728Ferrari Front Bracket - 918728$31.93Special order, ships in 7-14 days
1414305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
14231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
15814799Ferrari Stud Bolt - 814799$16.94Special order, ships in 7-14 days
16950180Ferrari RH Outer Silencer Bracket - 950180$147.72Special order, ships in 7-14 days
17950181Ferrari LH Outer Silencer Bracket - 950181$147.72Special order, ships in 7-14 days
18327762Ferrari Bracket Fixing Plate - 327762$13.01Special order, ships in 7-14 days
1914059211Ferrari Flanged Nut - 14059211$0.13Available, ships in 3-6 days
20289529Ferrari Rubber Exhaust Mount - 289529$74.30Available, ships in 3-6 days
21950176Ferrari RH Outer Silencer Bracket - 950176$51.67Special order, ships in 7-14 days
22950179Ferrari LH Outer Silencer Bracket - 950179$64.00Special order, ships in 7-14 days
23250222Ferrari Screw Squared Head 6x18.5 - 250222$5.44Special order, ships in 7-14 days
2414058421Ferrari Nut M6 x 6 - 14058421$2.38Available, ships in 3-6 days
25903595Ferrari RH Inner Silencer Bracket - 903595$150.17Special order, ships in 7-14 days
2555042918Ferrari Staffa Interna Su Silenz. Dx - 55042918$224.04Special order, ships in 7-14 days
26903596Ferrari LH Inner Silencer Bracket - 903596$150.17Special order, ships in 7-14 days
27903603Ferrari RH Inner Silencer Bracket - 903603$39.37Special order, ships in 7-14 days
2755042922Ferrari Staffa Interna Supp. Silenzi - 55042922$51.67Special order, ships in 7-14 days
28903604Ferrari LH Inner Silencer Bracket - 903604$39.37Special order, ships in 7-14 days
29745969Ferrari RH Bodyshell Mount Bracket - 745969$68.92Special order, ships in 7-14 days
2955043048Ferrari Staffa A Scocca Per Supp. Si - 55043048$66.45Special order, ships in 7-14 days
30748264Ferrari Silencer Cross Piece - 748264$189.56Special order, ships in 7-14 days
3155030272Ferrari Lower Gearbox Shield - 55030272$160.02Special order, ships in 7-14 days
31913865Ferrari Lower Gearbox Shield - 913865SupersededOrder 55030272 instead
32913867Ferrari LH Gearbox Shield Bracket - 913867$46.75Special order, ships in 7-14 days
3255026307Ferrari RH Gearbox Shield Bracket - 55026307$49.22Special order, ships in 7-14 days
32945169Ferrari RH Gearbox Shield Bracket - 945169$49.22Special order, ships in 7-14 days
33849226Ferrari Plate - 849226$15.74Special order, ships in 7-14 days
34849202Ferrari Upper Rear Bracket For RH Si - 849202$44.29Special order, ships in 7-14 days
35849201Ferrari Upper Rear Bracket For LH Si - 849201$44.29Special order, ships in 7-14 days
36960174Ferrari Inner Rear Bracket For RH Si - 960174$169.87Special order, ships in 7-14 days
37960196Ferrari Inner Rear Bracket For LH Si - 960196$169.87Special order, ships in 7-14 days
38282998Ferrari Ring Clamp - 282998$36.08Special order, ships in 7-14 days
39270454Ferrari Clamp D.70mm - 270454$28.39Available, ships in 3-6 days
40870498Ferrari RH Cosmetic Shield - 870498$9,867.80Special order, ships in 7-14 days
40870521Ferrari RH Cosmetic Shield - 870521$9,867.80Special order, ships in 7-14 days
40914211Ferrari RH Cosmetic Shield - 914211$9,867.80Special order, ships in 7-14 days
41870531Ferrari LH Cosmetic Shield - 870531$9,867.80Special order, ships in 7-14 days
41870533Ferrari LH Cosmetic Shield - 870533$9,867.80Special order, ships in 7-14 days
41914240Ferrari LH Cosmetic Shield - 914240$9,867.80Special order, ships in 7-14 days
