Ferrari Purosangue — [MECHANICAL SYSTEM] - D.9 - ENGINE OIL RADIATOR AND TANK (diagram 0059)

Exploded view of the [mechanical system] - d.9 - engine oil radiator and tank on the Ferrari Purosangue, with 64 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

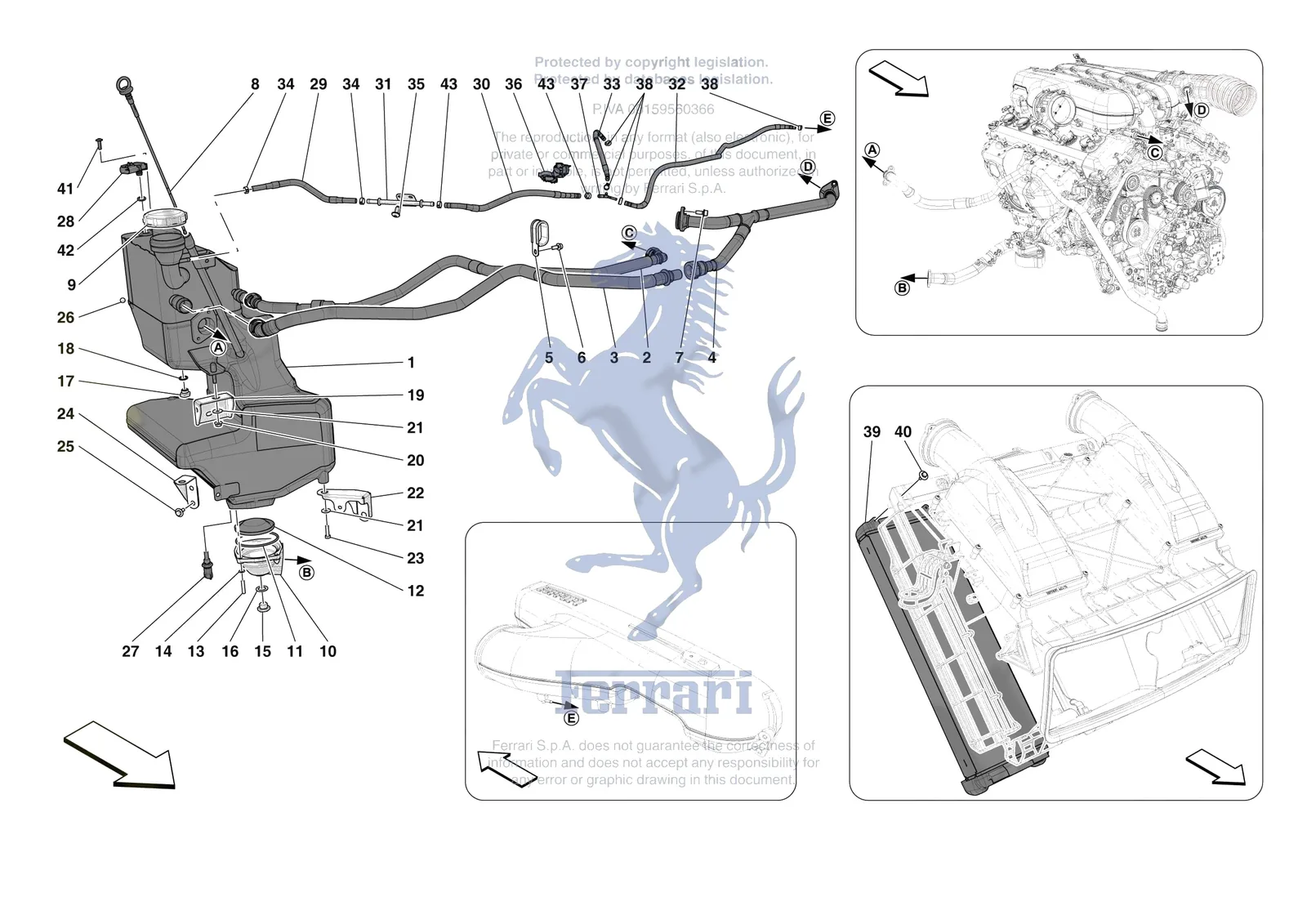

Ferrari Purosangue [MECHANICAL SYSTEM] - D.9 - ENGINE OIL RADIATOR AND TANK exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead
10257060Ferrari/Maserati Copper Washer - 10257060$1.10In stock
1897988Ferrari Engine Oil Tank - 897988$10,097.60Special order, ships in 7-14 days
2813545Ferrari Vapour Pipe From Oil Tank To - 813545$837.14Special order, ships in 7-14 days
3887670Ferrari Pipe From Reservoir To Disco - 887670$320.06Special order, ships in 7-14 days
4887669Ferrari Blow-By Pipe - 887669SupersededOrder 948377 instead
4948377Ferrari Blow-By Pipe - 948377$369.30Special order, ships in 7-14 days
5305726Ferrari Bracket - 305726$8.82Special order, ships in 7-14 days
6231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
7248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
8774637Ferrari Compl. Oil Dipstick - 774637$73.85Special order, ships in 7-14 days
9175708Ferrari Fuel Filler Cap - 175708$250.00In stock
10807932Ferrari Oil Tank Pickup - 807932$517.04Special order, ships in 7-14 days
11125521Ferrari/Maserati Oil Tank O-Ring - 125521$13.20In stock
12100332Ferrari Sump Filter - 100332$37.13Available, ships in 3-6 days
1311500424Ferrari Stud M6 x 9 Gambo 20 - 11500424$1.04Available, ships in 3-6 days
1311500524Ferrari Stud Bolt M6 x 9 Gambo 22 - 11500524$0.73Available, ships in 3-6 days
1412601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
1510300711Ferrari Threaded Drain Plug - 10300711$4.59In stock
1610261460Ferrari Copper Washer 16x24x1.5 - 10261460$0.63Available, ships in 3-6 days
1710300611Ferrari Threaded Plug - 10300611$45.94Special order, ships in 7-14 days
1810261160Ferrari Washer - 10261160$3.26Available, ships in 3-6 days
19785689Ferrari Centre Bracket - 785689$73.85Special order, ships in 7-14 days
2014059214Ferrari Flanged Nut M6 - 14059214$0.38Available, ships in 3-6 days
2112643724Ferrari/Maserati Washer - 12643724$0.20In stock
22811258Ferrari Bracket - 811258$86.15Special order, ships in 7-14 days
2310902621Ferrari Bolt M6 x 25 - 10902621$0.17Available, ships in 3-6 days
2310902624Ferrari Screw TE M6 x 25 - 10902624$0.27Available, ships in 3-6 days
24269835Ferrari Fastener Bracket - 269835$51.62Special order, ships in 7-14 days
25792394Ferrari Screw TE M6 x 18 - 792394$0.84Available, ships in 3-6 days
26899527Ferrari Oil Ball Float - 899527$344.69Special order, ships in 7-14 days
27180137Ferrari/Maserati Water Temperature Sender / Sensor - 180137$25.19In stock
28783569Ferrari Oil Tank Cap - 783569$93.40Special order, ships in 7-14 days
28871810Ferrari Sensore Pressione Vapori Blo - 871810$240.39Special order, ships in 7-14 days
29791893Ferrari Rubber Pipe - 791893$51.67Special order, ships in 7-14 days
29898055Ferrari Rubber Pipe - 898055$66.45Special order, ships in 7-14 days
3055025663Ferrari Rubber Pipe - 55025663$174.80Special order, ships in 7-14 days
30877348Ferrari Rubber Pipe - 877348SupersededOrder 55025663 instead
31822961Ferrari Two-Way Pipe - 822961$118.16Special order, ships in 7-14 days
32889198Ferrari Rubber Pipe - 889198$142.79Special order, ships in 7-14 days
33889138Ferrari Rubber Pipe - 889138$86.15Special order, ships in 7-14 days
34171406Ferrari Hose Retaining Clip - 171406$1.42Available, ships in 3-6 days
35774707Ferrari Torx Screw M6X18 Ros.Imp. D.1 - 774707$5.65Special order, ships in 7-14 days
3655034518Ferrari Clip - 55034518$3.03Special order, ships in 7-14 days
36889199Ferrari Clip - 889199$2.38Special order, ships in 7-14 days
37258855Ferrari 3-Way Union - 258855$87.40Special order, ships in 7-14 days
3813432570Ferrari Collar - 13432570$2.82Special order, ships in 7-14 days
39888493Ferrari Oil Radiator - 888493$2,781.16Special order, ships in 7-14 days
4081290900Ferrari Screw With Double Washer - 81290900$1.42In stock
41797723Ferrari Screw - 797723$0.86Special order, ships in 7-14 days
4185833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
42900041Ferrari O-Ring - 900041$20.51Special order, ships in 7-14 days
4313125270Ferrari Collare A Nastro Fiss.Manic. - 13125270$3.68Special order, ships in 7-14 days
