Ferrari Purosangue — [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR (diagram 0060)

Exploded view of the [mechanical system] - d.10 - oil pipes and engine oil level sensor on the Ferrari Purosangue, with 67 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

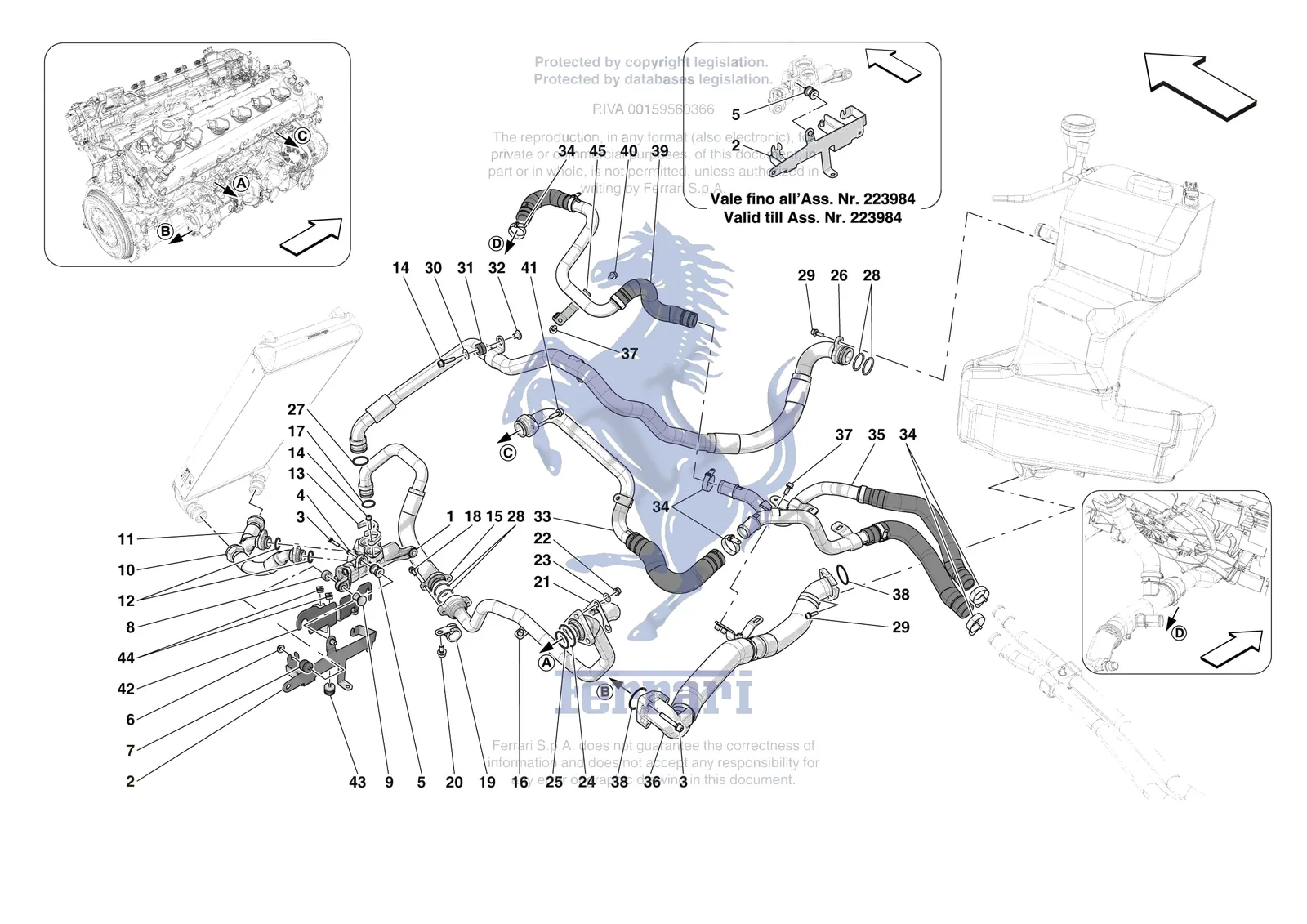

Ferrari Purosangue [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
262112Ferrari Collar - 262112SupersededOrder 262111 instead
294902Ferrari Damped Mounting - 294902SupersededOrder 267300 instead
64342800Ferrari Nut - 64342800SupersededOrder 177778 instead
133215Ferrari Nut Locking - 133215SupersededOrder 177778 instead
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
10860370Ferrari Screw Collar - 10860370$3.26Special order, ships in 7-14 days
13127770Ferrari Screw Collar - 13127770$2.82Special order, ships in 7-14 days
268210Ferrari Screw Collar - 268210$6.32Special order, ships in 7-14 days
14432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
1316675Ferrari Oil Thermostat Complete - 316675$1,622.78Special order, ships in 7-14 days
2784984Ferrari Bracket - 784984$152.62Special order, ships in 7-14 days
2976824Ferrari Bracket - 976824$130.47Special order, ships in 7-14 days
3231622Ferrari Screw M6 x 35 - 231622$0.65Available, ships in 3-6 days
4341672Ferrari Spacer - 341672$10.91Special order, ships in 7-14 days
5267300Ferrari Mount Bushing - 267300$13.18In stock
614039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
615896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
7142202Ferrari Rubber Mount - 142202$15.95In stock
8341666Ferrari Spacer - 341666$10.91Special order, ships in 7-14 days
9341649Ferrari Pin - 341649$63.90Special order, ships in 7-14 days
10785216Ferrari Engine Oil Delivery Pipe Fro - 785216$615.54Special order, ships in 7-14 days
11785209Ferrari Engine Oil Return Pipe From - 785209$615.54Special order, ships in 7-14 days
12122791Ferrari O-Ring - 122791$4.12Available, ships in 3-6 days
13311723Ferrari Engine Oil Pipe Retainer Fork - 311723$164.72Special order, ships in 7-14 days
14231620Ferrari/Maserati Screw - 231620$0.58In stock
15782940Ferrari Engine Oil Return Pipe - 782940$812.51Special order, ships in 7-14 days
16955094Ferrari Engine Oil Return Pipe From - 955094$960.25Special order, ships in 7-14 days
17121903Ferrari Gasket - 121903$1.48Available, ships in 3-6 days
18231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
1910450790Ferrari Clamp 22mm - 10450790$1.11Available, ships in 3-6 days
20231627Ferrari Screw M8 x 16 - 231627$1.25Available, ships in 3-6 days
21277001Ferrari Shield - 277001$71.38Available, ships in 3-6 days
22177778Ferrari Nut Locking M8 x 7 - 177778$2.82Available, ships in 3-6 days
2312604474Ferrari Wavy Washer - 12604474$0.12Available, ships in 3-6 days
2414454481Ferrari Gasket OR D. 33.05 - 14454481$13.55Available, ships in 3-6 days
2514453981Ferrari Gasket OR D. 25.12 - 14453981$0.92Available, ships in 3-6 days
26949002Ferrari Engine Oil Return Pipe From - 949002$1,698.93Special order, ships in 7-14 days
26949032Ferrari Engine Oil Return Pipe From - 949032$1,649.69Special order, ships in 7-14 days
27104212Ferrari O-Ring - 104212$1.10In stock
28139934Ferrari Radiator Tank Pipe to Oil Tank O-Ring - 139934$2.15In stock
29231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
3012643724Ferrari/Maserati Washer - 12643724$0.20In stock
31103549Ferrari Grommet - 103549$2.80In stock
32149707Ferrari Spacer - 149707$2.13Available, ships in 3-6 days
33771631Ferrari Compl. Delivery Pipe - 771631$517.04Special order, ships in 7-14 days
34262111Ferrari Screw Collar - 262111$3.03Special order, ships in 7-14 days
3555009327Ferrari Compl. Multiple Connector - 55009327$960.25Special order, ships in 7-14 days
35943240Ferrari Compl. Multiple Connector - 943240$935.64Special order, ships in 7-14 days
3655006404Ferrari Oil Delivery Pipe From Tank - 55006404$2,274.65Special order, ships in 7-14 days
36942899Ferrari Oil Delivery Pipe From Tank - 942899$2,157.38Special order, ships in 7-14 days
37248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
38862084Ferrari Gasket - 862084$7.84Available, ships in 3-6 days
39776827Ferrari Compl. Water Return Pipe - 776827$763.27Special order, ships in 7-14 days
39941033Ferrari Compl. Water Return Pipe - 941033SupersededOrder 776827 instead
40899867Ferrari Flanged Screw M6 x 10 - 899867$2.61Special order, ships in 7-14 days
41231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
42969973Ferrari Damped Bracket - 969973$246.20Special order, ships in 7-14 days
43195373Ferrari Rubber Support Pad - 195373$29.48Available, ships in 3-6 days
4480874300Ferrari Clip - 80874300$1.97Available, ships in 3-6 days
45857108Ferrari BRACKET - 857108Price on requestContact us for price and availability
