Ferrari Purosangue — [MECHANICAL SYSTEM] - D.25.01 - FRONT SUSPENSION - SHOCK ABSORBERS (diagram 0076)

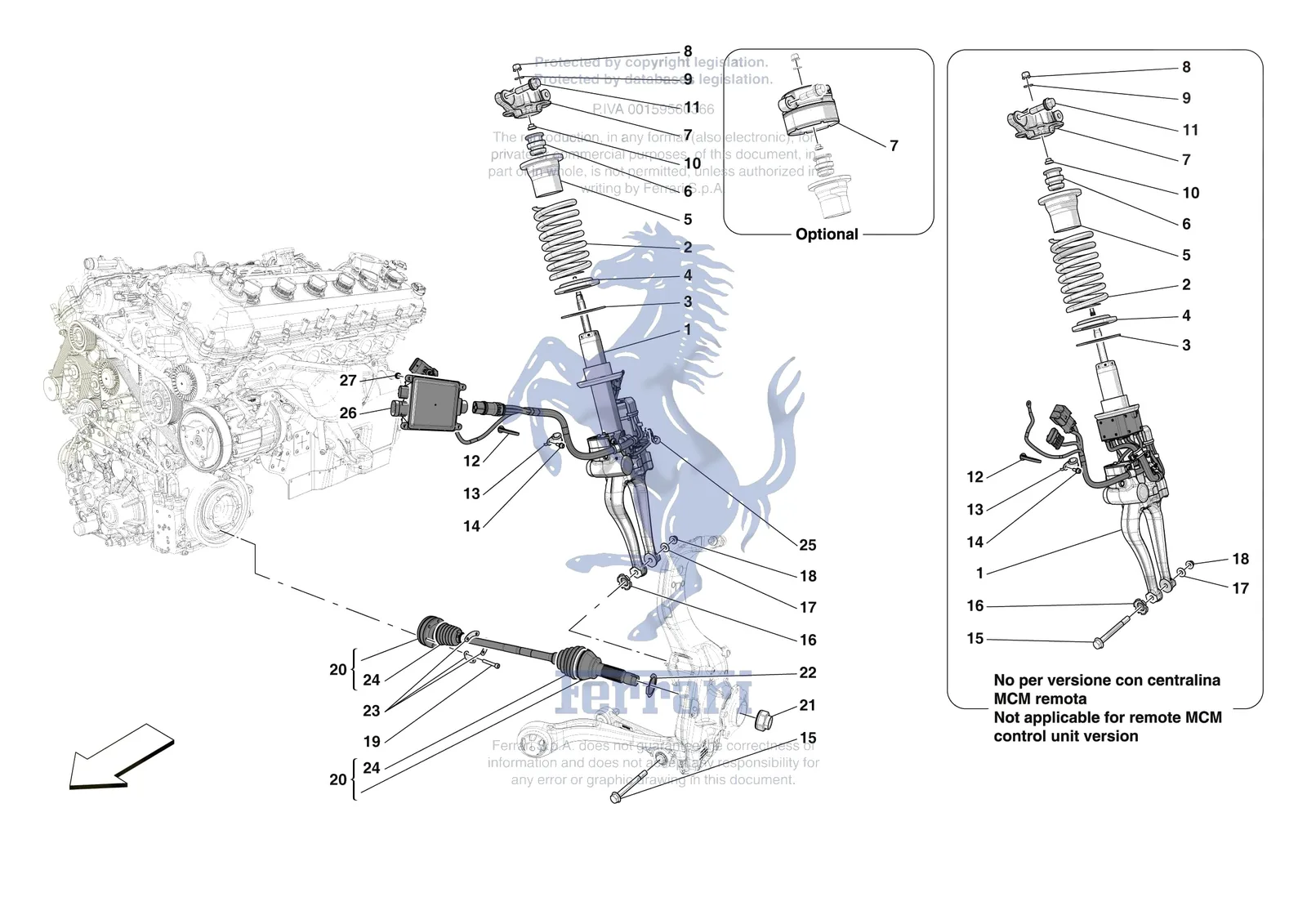

Exploded view of the [mechanical system] - d.25.01 - front suspension - shock absorbers on the Ferrari Purosangue, with 38 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [MECHANICAL SYSTEM] - D.25.01 - FRONT SUSPENSION - SHOCK ABSORBERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0076.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days | |
| 187814 | Ferrari Hub Nut - 187814 | Superseded | Order 203780 instead | |
| 749878 | Ferrari Nut - 749878 | Superseded | Order 220378 instead | |
| 818380 | Ferrari Ralla Speciale Per Semiasse - 818380 | Superseded | Order 939890 instead | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 1 | 993163 | Ferrari Ammortizz. Ant.Sx Remote Pro - 993163 | $21,962.65 | Contact us to order |
| 1 | 785512 | Ferrari LH Front Shock Absorber - 785512 | $23,466.09 | Special order, ships in 7-14 days |
| 1 | 785514 | Ferrari RH Front Shock Absorber - 785514 | $23,466.09 | Special order, ships in 7-14 days |
| 1 | 993164 | Ferrari RH Front Shock Absorber - 993164 | $21,962.65 | Special order, ships in 7-14 days |
| 2 | 971907 | Ferrari Spring - 971907 | $344.69 | Special order, ships in 7-14 days |
| 3 | 810884 | Ferrari Spacer - 810884 | $39.37 | Special order, ships in 7-14 days |
| 4 | 911321 | Ferrari Lower Spacer - 911321 | $49.22 | Special order, ships in 7-14 days |
| 5 | 911322 | Ferrari Upper Spacer - 911322 | $86.15 | Special order, ships in 7-14 days |
| 6 | 818289 | Ferrari Bush - 818289 | $59.07 | Special order, ships in 7-14 days |
| 7 | 796821 | Ferrari Stop Cap - 796821 | $590.91 | Special order, ships in 7-14 days |
| 7 | 909279 | Ferrari Stop Cap - 909279 | $4,042.78 | Special order, ships in 7-14 days |
| 8 | 220378 | Ferrari Nut M12 - 220378 | $9.16 | Special order, ships in 7-14 days |
| 9 | 220377 | Ferrari Washer D.12.1 - 24 X 3 - 220377 | $14.84 | Special order, ships in 7-14 days |
| 10 | 220383 | Ferrari Bush - 220383 | $66.35 | Available, ships in 3-6 days |
| 11 | 947616 | Ferrari Screw - 947616 | $9.62 | Special order, ships in 7-14 days |
| 12 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 13 | 912852 | Ferrari Bracket - 912852 | $31.93 | Special order, ships in 7-14 days |
| 13 | 55051063 | Ferrari Staffetta X Inserto D.18 Ant - 55051063 | $12.53 | Special order, ships in 7-14 days |
| 14 | 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days |
| 14 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 15 | 766679 | Ferrari Screw - 766679 | $15.51 | Available, ships in 3-6 days |
| 16 | 968942 | Ferrari End Stop Ring - 968942 | $10.31 | Special order, ships in 7-14 days |
| 17 | 12646921 | Ferrari Washer - 12646921 | $0.92 | Available, ships in 3-6 days |
| 18 | 255271 | Ferrari Nut M12 x 1.25 x - 255271 | $2.59 | Available, ships in 3-6 days |
| 19 | 14306931 | Ferrari Screw M8x50 - 14306931 | $1.92 | Available, ships in 3-6 days |
| 20 | 967626 | Ferrari Front Axle Shaft - 967626 | $1,551.20 | Special order, ships in 7-14 days |
| 21 | 203780 | Ferrari/Maserati Hub Nut - 203780 | $30.05 | In stock |
| 22 | 939890 | Ferrari Special Ring Bearing for Axle - 939890 | $29.52 | Special order, ships in 7-14 days |
| 23 | 268410 | Ferrari Plate - 268410 | $13.01 | Special order, ships in 7-14 days |
| 25 | 975124 | Ferrari Staff. Guaina X 1 Tubo D.10 - 975124 | $31.99 | Special order, ships in 7-14 days |
| 26 | 55026551 | Ferrari F175 Remote Mcm - 55026551 | $4,084.98 | Special order, ships in 7-14 days |
| 27 | 13046012 | Ferrari Nut - 13046012 | Superseded | Order 13046011 instead |
