Ferrari Purosangue — [MECHANICAL SYSTEM] - D.25.04 - FRONT SUSPENSION - COOLING (diagram 0079)

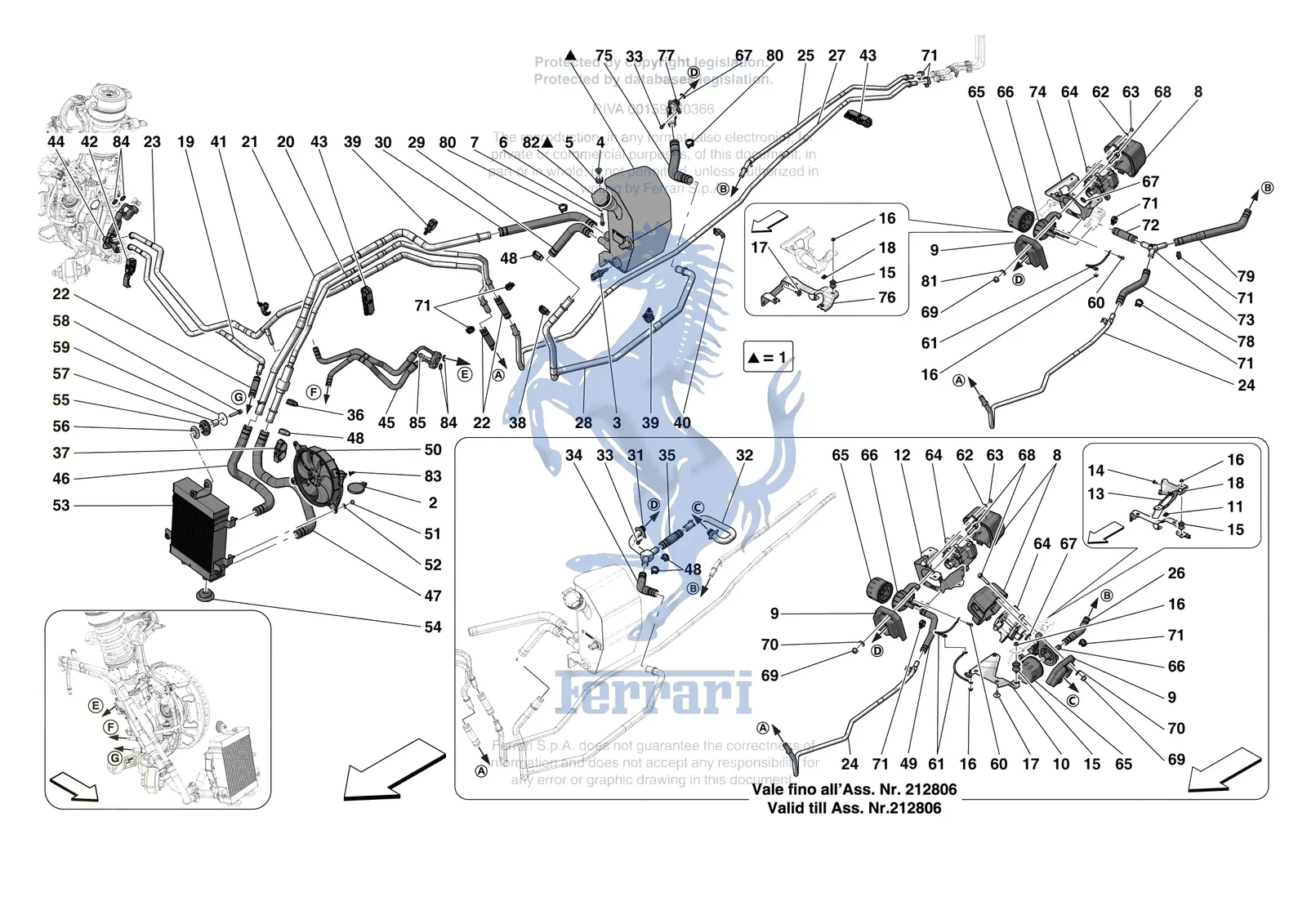

Exploded view of the [mechanical system] - d.25.04 - front suspension - cooling on the Ferrari Purosangue, with 86 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari Purosangue [MECHANICAL SYSTEM] - D.25.04 - FRONT SUSPENSION - COOLING exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
257823Ferrari Electric Fan Complete - 257823SupersededOrder 277070 instead
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
1913873Ferrari Active Suspension Oil Tank - 913873$2,298.08Special order, ships in 7-14 days
2217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
3180137Ferrari/Maserati Water Temperature Sender / Sensor - 180137$25.19In stock
4149707Ferrari Spacer - 149707$2.13Available, ships in 3-6 days
5103549Ferrari Grommet - 103549$2.80In stock
612643724Ferrari/Maserati Washer - 12643724$0.20In stock
7243719Ferrari Screw With Washer M6 x 35 TCEI - 243719$1.05Available, ships in 3-6 days
8916663Ferrari Suspension Cooling Pump Soun - 916663$132.94Special order, ships in 7-14 days
9920077Ferrari Lower Soundproofing - 920077$61.52Special order, ships in 7-14 days
10784424Ferrari FRONT BRACKET - 784424Price on requestContact us for price and availability
11802767Ferrari REAR BRACKET - 802767Price on requestContact us for price and availability
12745293Ferrari RH PUMP BRACKET - 745293Price on requestContact us for price and availability
13802771Ferrari LH PUMP BRACKET - 802771Price on requestContact us for price and availability
1482113500Ferrari Screw Torx M6 x 18 with Washer D. 15 - 82113500$5.86Available, ships in 3-6 days
15916685Ferrari Rubber Bushing - 916685$21.64Special order, ships in 7-14 days
1614040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
1781290900Ferrari Screw With Double Washer - 81290900$1.42In stock
1887546600Ferrari Clip - 87546600$1.74Available, ships in 3-6 days
19911447Ferrari RH Front Return Pipe. - 911447$443.17Special order, ships in 7-14 days
20911446Ferrari LH Front Return Pipe. - 911446$640.17Special order, ships in 7-14 days
21861889Ferrari Radiator-Tank Return Pipe - 861889$443.17Special order, ships in 7-14 days
22861903Ferrari Hose - 861903$51.67Special order, ships in 7-14 days
23951413Ferrari Front Delivery Pipe - 951413$738.64Special order, ships in 7-14 days
24888976Ferrari Front Underbody Delivery Pip - 888976$270.83Special order, ships in 7-14 days
25888979Ferrari Rear Underbody Delivery Pipe - 888979$295.43Special order, ships in 7-14 days
27861881Ferrari Underbody Return Pipe - 861881$393.93Special order, ships in 7-14 days
28764065Ferrari Pump Suction Pipe - 764065$243.74Special order, ships in 7-14 days
29913898Ferrari Tank Suction Hose - 913898$68.92Special order, ships in 7-14 days
30861893Ferrari Tank Return Hose - 861893$78.76Special order, ships in 7-14 days
31896110Ferrari FRONT PUMP SUCTION PIPE - 896110Price on requestContact us for price and availability
32896107Ferrari REAR PUMP SUCTION PIPE - 896107Price on requestContact us for price and availability
33256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
36198273Ferrari Clip - 198273$3.26Available, ships in 3-6 days
37804571Ferrari Clip - 804571$5.65Special order, ships in 7-14 days
38246723Ferrari Clip D. 20 - 246723$3.91Available, ships in 3-6 days
39915773Ferrari Clip - 915773$3.03Special order, ships in 7-14 days
40257886Ferrari Raymond Clip - 257886$1.44Special order, ships in 7-14 days
41287771Ferrari Clip - 287771$1.97Special order, ships in 7-14 days
42291163Ferrari Clip - 291163$1.99Special order, ships in 7-14 days
43825624Ferrari 5-Recess Clip - 825624$5.44Special order, ships in 7-14 days
44800450Ferrari RH Front Suspension Cooling - 800450$714.03Special order, ships in 7-14 days
45800443Ferrari LH Front Suspension Cooling - 800443$714.03Special order, ships in 7-14 days
46913962Ferrari Rubber Delivery Pipe To Radi - 913962$113.24Special order, ships in 7-14 days
47912197Ferrari Rubber Return Pipe From Radi - 912197$123.09Special order, ships in 7-14 days
48971139Ferrari Collar - 971139$5.04Special order, ships in 7-14 days
50277070Ferrari Electric Fan Complete - 277070$467.15Special order, ships in 7-14 days
51744547Ferrari Nut - 744547$11.79Special order, ships in 7-14 days
52772794Ferrari Washer - 772794$1.09Special order, ships in 7-14 days
53807389Ferrari Suspension Cooling Radiator - 807389$1,772.80Special order, ships in 7-14 days
54138926Ferrari Rubber Spacer - 138926$8.72Available, ships in 3-6 days
55290938Ferrari Intercooler Fastener Rubber Bush - 290938$16.96Special order, ships in 7-14 days
56912411Ferrari Spacer - 912411$15.51Special order, ships in 7-14 days
57927264Ferrari Radiator Fastener Spacer - 927264$11.79Special order, ships in 7-14 days
58231622Ferrari Screw M6 x 35 - 231622$0.65Available, ships in 3-6 days
5966121400Ferrari Spacer - 66121400$20.34Available, ships in 3-6 days
60231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
61851206Ferrari Pump Ground Cable - 851206$44.29Special order, ships in 7-14 days
64840561Ferrari Oil Pump - 840561SupersededOrder 917721 instead
64917721Ferrari Oil Pump - 917721$1,551.20Special order, ships in 7-14 days
65901367Ferrari Oil Filter - 901367$262.62Special order, ships in 7-14 days
66903825Ferrari Pump-Active Suspension Filte - 903825$224.04Special order, ships in 7-14 days
68265097Ferrari Screw 8X40 - 265097$14.84Special order, ships in 7-14 days
6914040714Ferrari Flanged Nut - 14040714$1.25Available, ships in 3-6 days
7012646727Ferrari Washer D. 8.45 X 20 X 2 - 12646727$0.40Available, ships in 3-6 days
71971138Ferrari Collar - 971138$6.10Special order, ships in 7-14 days
72945227Ferrari Hose - 945227$61.52Special order, ships in 7-14 days
73948096Ferrari Block - 948096$34.44Special order, ships in 7-14 days
74777985Ferrari Pump Bracket - 777985$187.10Special order, ships in 7-14 days
75815972Ferrari Pump Suction Hose - 815972$118.16Special order, ships in 7-14 days
76779158Ferrari Bracket For Fastening To Cha - 779158$295.43Special order, ships in 7-14 days
77815460Ferrari Pump Suction Pipe - 815460$59.07Special order, ships in 7-14 days
78945394Ferrari Front Underbody Delivery Hos - 945394$86.15Special order, ships in 7-14 days
79945393Ferrari Rear Underbody Delivery Hose - 945393$103.38Special order, ships in 7-14 days
80830033Ferrari Collar - 830033$4.56Special order, ships in 7-14 days
8112646701Ferrari Washer D. 8.45 - 20 x 2 - 12646701$0.17Available, ships in 3-6 days
82968627Ferrari Oil Tank Cap - 968627$22.62Special order, ships in 7-14 days
8384487000Ferrari CLIP - 84487000$6.96Special order, ships in 7-14 days
84841272Ferrari Gasket - 841272$15.51Special order, ships in 7-14 days
8516286224Ferrari Screw M6x25 - 16286224$4.77Special order, ships in 7-14 days
