Ferrari Purosangue — [MECHANICAL SYSTEM] - D.27.01 - REAR SUSPENSION - SHOCK ABSORBERS (diagram 0081)

Exploded view of the [mechanical system] - d.27.01 - rear suspension - shock absorbers on the Ferrari Purosangue, with 53 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

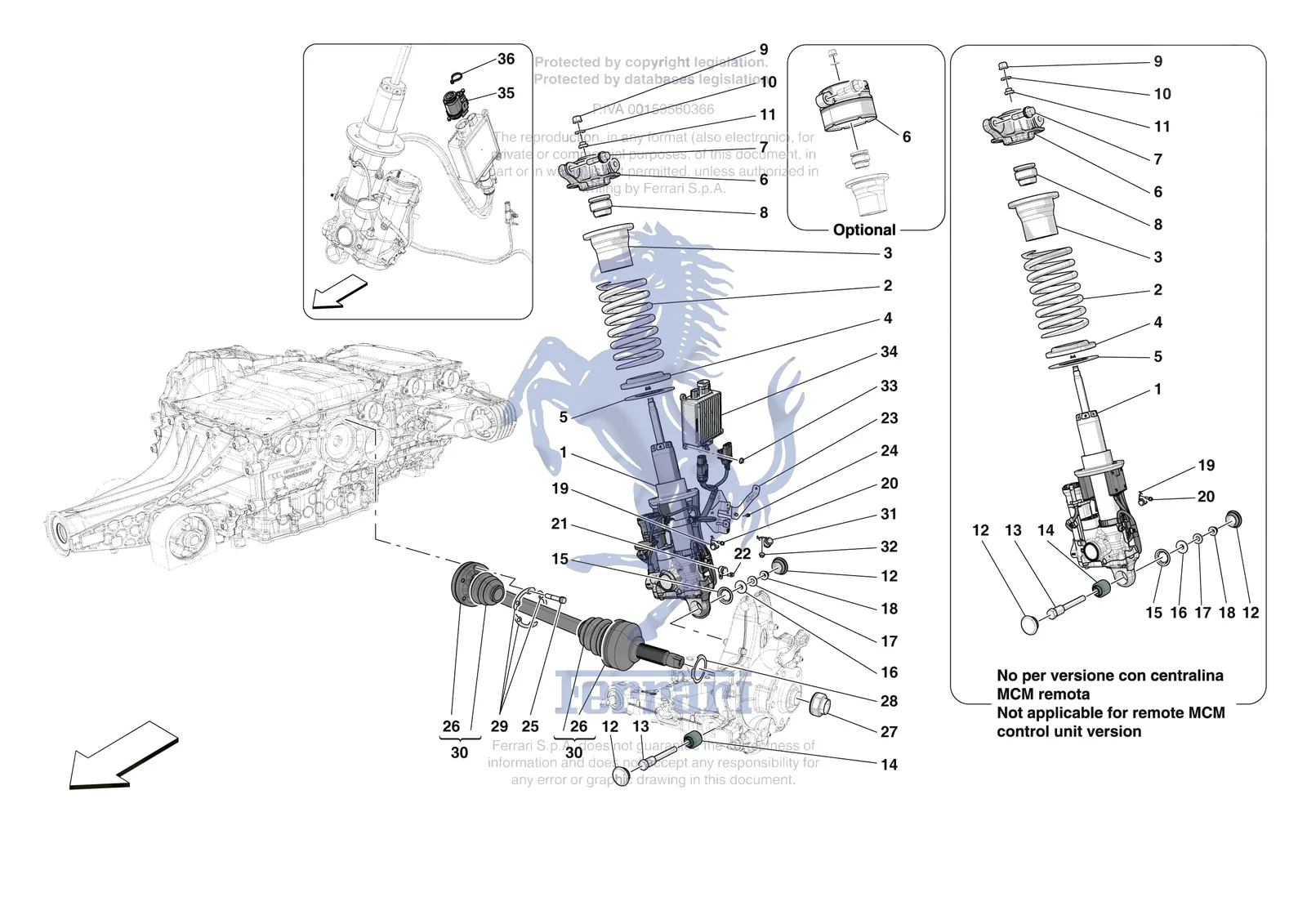

Ferrari Purosangue [MECHANICAL SYSTEM] - D.27.01 - REAR SUSPENSION - SHOCK ABSORBERS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
187814Ferrari Hub Nut - 187814SupersededOrder 203780 instead
749878Ferrari Nut - 749878SupersededOrder 220378 instead
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
14432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
1993166Ferrari Ammortizz. Post.Dx Remote Pr - 993166$21,734.53Contact us to order
1993165Ferrari Ammortizz. Post.Sx Remote Pr - 993165$21,734.53Contact us to order
1785515Ferrari LH Rear Shock Absorber - 785515$23,059.82Special order, ships in 7-14 days
1785516Ferrari RH Rear Shock Absorber - 785516$23,059.82Special order, ships in 7-14 days
2967271Ferrari Spring - 967271$344.69Special order, ships in 7-14 days
3911322Ferrari Upper Spacer - 911322$86.15Special order, ships in 7-14 days
4911321Ferrari Lower Spacer - 911321$49.22Special order, ships in 7-14 days
5810884Ferrari Spacer - 810884$39.37Special order, ships in 7-14 days
6909280Ferrari Compl. Shock Absorber Retain - 909280$4,042.78Special order, ships in 7-14 days
6970890Ferrari Compl. Shock Absorber Retain - 970890$566.30Special order, ships in 7-14 days
7947616Ferrari Screw - 947616$9.62Special order, ships in 7-14 days
8958092Ferrari Bush - 958092$59.07Special order, ships in 7-14 days
9220378Ferrari Nut M12 - 220378$9.16Special order, ships in 7-14 days
10220377Ferrari Washer D.12.1 - 24 X 3 - 220377$14.84Special order, ships in 7-14 days
11220383Ferrari Bush - 220383$66.35Available, ships in 3-6 days
12786846Ferrari Tappo X Otturazione Fori D35 - 786846$6.98Special order, ships in 7-14 days
13246962Ferrari Special Screw M12 x 1.25 - 246962$58.98Special order, ships in 7-14 days
14953351Ferrari Bush - 953351$295.43Special order, ships in 7-14 days
15889669Ferrari End Stop Ring - 889669$18.44Special order, ships in 7-14 days
16890136Ferrari Bush - 890136$30.61Special order, ships in 7-14 days
1712646921Ferrari Washer - 12646921$0.92Available, ships in 3-6 days
18255271Ferrari Nut M12 x 1.25 x - 255271$2.59Available, ships in 3-6 days
19912852Ferrari Bracket - 912852$31.93Special order, ships in 7-14 days
19975124Ferrari Staff. Guaina X 1 Tubo D.10 - 975124$31.99Special order, ships in 7-14 days
20231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
21868624Ferrari Bracket - 868624$5.14Special order, ships in 7-14 days
2110441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
2214305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
22231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
23947580Ferrari LH Rear Suspension Connector - 947580$113.24Special order, ships in 7-14 days
23947581Ferrari RH Rear Suspension Connector - 947581$113.24Special order, ships in 7-14 days
23995566Ferrari Staffa Connettori Sosp. Post - 995566$140.32Special order, ships in 7-14 days
23995567Ferrari Staffa Connettori Sosp. Post - 995567$140.32Special order, ships in 7-14 days
24231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
25237590Ferrari Axle Bolt - 237590$5.56In stock
26844380Ferrari Rear AXLe Shaft - 844380$2,063.59Special order, ships in 7-14 days
27203780Ferrari/Maserati Hub Nut - 203780$30.05In stock
28918121Ferrari Special Ring Bearing for Axle Shaft - 918121$34.40Special order, ships in 7-14 days
29788160Ferrari Plate - 788160$12.02Special order, ships in 7-14 days
3155051063Ferrari Staffetta X Inserto D.18 Ant - 55051063$12.53Special order, ships in 7-14 days
3214059211Ferrari Flanged Nut - 14059211$0.13Available, ships in 3-6 days
3313046012Ferrari Nut - 13046012SupersededOrder 13046011 instead
3455026551Ferrari F175 Remote Mcm - 55026551$4,084.98Special order, ships in 7-14 days
3555008536Ferrari Cuffia Protez. Connettori Ce - 55008536$103.38Special order, ships in 7-14 days
36239279Ferrari Fascetta A Strappo 4.3 X 37 - 239279$85.33Special order, ships in 7-14 days
