Ferrari Purosangue — [ELECTRICAL SYSTEM] - F.8 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM (diagram 0191)

Exploded view of the [electrical system] - f.8 - various fastenings for the electrical system on the Ferrari Purosangue, with 60 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

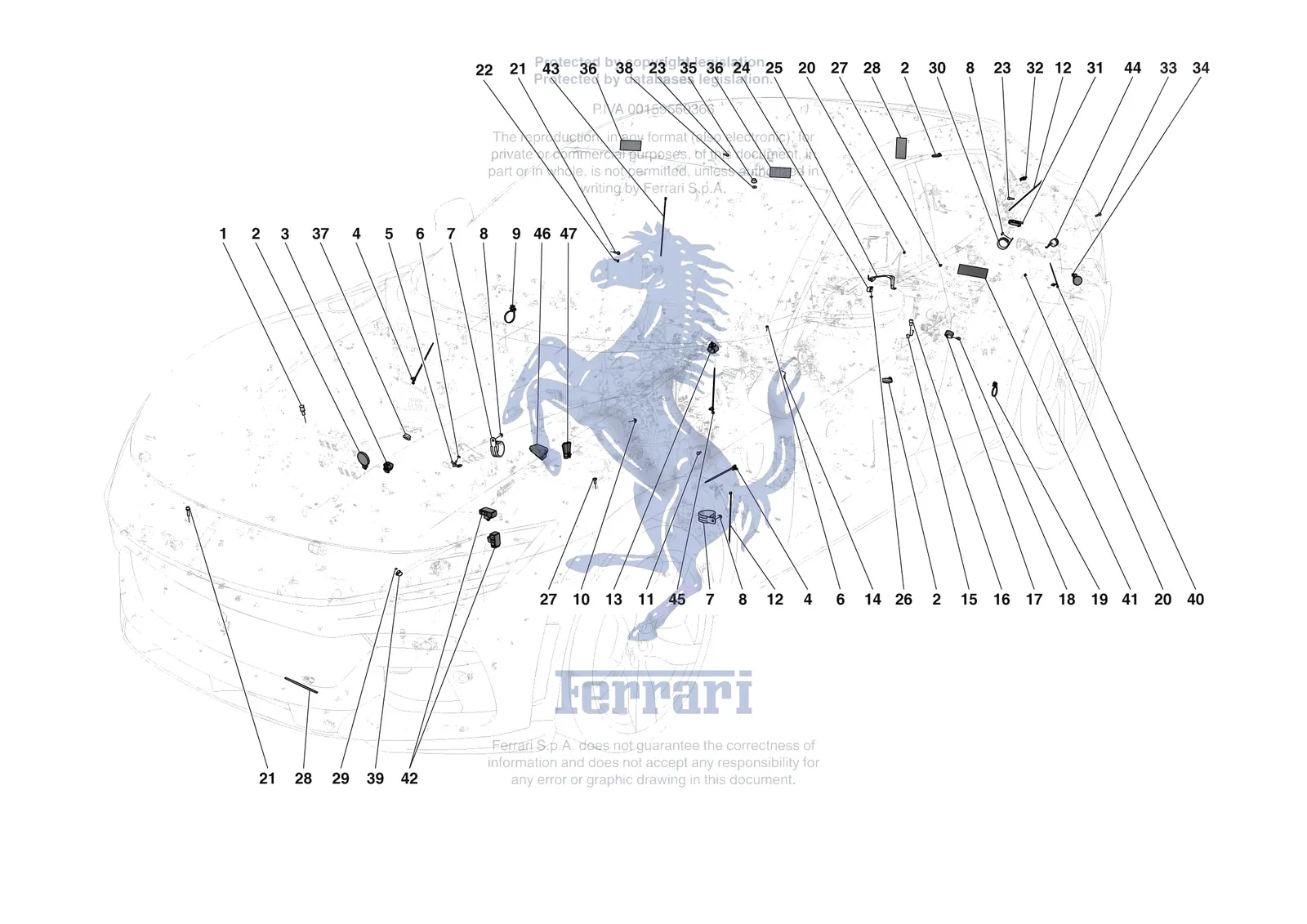

Ferrari Purosangue [ELECTRICAL SYSTEM] - F.8 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
306631Ferrari Clip - 306631$7.59Special order, ships in 7-14 days
14569480Ferrari Clip 10x3.8 Black - 14569480$0.54Available, ships in 3-6 days
14039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
14084111Ferrari Nut - 14084111SupersededOrder 11673111 instead
291225Ferrari P clip Bracket With Sheath - 291225$7.86Special order, ships in 7-14 days
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
10615301Ferrari Washer - 10615301SupersededOrder 149951 instead
1181878Ferrari Terminal Clamp - 181878$17.92Special order, ships in 7-14 days
2217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
3259508Ferrari Clip 15.8mm-18.5mm - 259508$1.25Special order, ships in 7-14 days
4303339Ferrari Long Shank Clip - 303339$0.59Special order, ships in 7-14 days
5841338Ferrari Bracket - 841338$31.99Special order, ships in 7-14 days
5948081Ferrari Bracket - 948081$44.29Special order, ships in 7-14 days
614059111Ferrari Flanged Nut M5 - 14059111$0.08Available, ships in 3-6 days
614039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
7809079Ferrari Bracket - 809079$16.45Special order, ships in 7-14 days
814059211Ferrari Flanged Nut - 14059211$0.13Available, ships in 3-6 days
969708300Ferrari Clip - 69708300$2.59Available, ships in 3-6 days
1116285127Ferrari Screw M5 x 16 - 16285127$1.05Special order, ships in 7-14 days
12145854Ferrari Cable tie 200mm - 145854$0.57Available, ships in 3-6 days
13248061Ferrari Clip - 248061$4.12Available, ships in 3-6 days
1485692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
15910977Ferrari Wiring Harness Mounting Bracket - 910977$29.48Special order, ships in 7-14 days
1614359924Ferrari Screw - 14359924$3.47Special order, ships in 7-14 days
1710442290Ferrari P Clip Bracket With Sheath - 10442290$1.42Special order, ships in 7-14 days
18231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
19255869Ferrari Clip - 255869$3.91Special order, ships in 7-14 days
20920886Ferrari Retaining Clip - 920886$0.82Special order, ships in 7-14 days
21231620Ferrari/Maserati Screw - 231620$0.58In stock
2285692300Ferrari Screw M5 x 20 TBFTX - 85692300$0.65Available, ships in 3-6 days
2314305324Ferrari Screw M6 x 20mm - 14305324$0.17Available, ships in 3-6 days
2410441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
25913958Ferrari Utilities Tray Fuse Brake - 913958$86.15Special order, ships in 7-14 days
2614040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
2785833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
28179309Ferrari ADHESIVE FOAM - 179309$8.28Available, ships in 3-6 days
2916101777Ferrari Nut - 16101777$0.31Available, ships in 3-6 days
30175119Ferrari Bracket With Sheath - 175119$11.29Special order, ships in 7-14 days
31811893Ferrari Clamp - 811893$2.82Special order, ships in 7-14 days
32291408Ferrari Clip - 291408$0.34Special order, ships in 7-14 days
3316286024Ferrari SCREW - 16286024$0.38Available, ships in 3-6 days
3316285124Ferrari Screw 5x16 - 16285124SupersededOrder 16286024 instead
34242384Ferrari Clip - 242384$0.59Available, ships in 3-6 days
3511673111Ferrari Nut - 11673111$0.52Available, ships in 3-6 days
3684706800Ferrari Adhesive Foam Rubber - 84706800$1.48Special order, ships in 7-14 days
3713046214Ferrari Nut - 13046214$0.73Special order, ships in 7-14 days
38149951Ferrari Shake Proof Washer - 149951$0.59Available, ships in 3-6 days
3910441390Ferrari P clip Bracket With Sheath D.12 - 10441390$1.02Available, ships in 3-6 days
40306756Ferrari Clip - 306756$1.59Special order, ships in 7-14 days
41857838Ferrari Tampone 120X40X5 - 857838$4.16Special order, ships in 7-14 days
42308812Ferrari Clip - 308812$3.91Special order, ships in 7-14 days
44912852Ferrari Bracket - 912852$31.93Special order, ships in 7-14 days
45242264Ferrari Fascetta A Strappo Con Pin - 242264$2.61Special order, ships in 7-14 days
4655041026Ferrari Asec Sensor Plug - 55041026$12.78Special order, ships in 7-14 days
4755041029Ferrari Asec Electric Pump Plug - 55041029$9.58Special order, ships in 7-14 days
