Ferrari Roma Spider — [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD (diagram 0011)

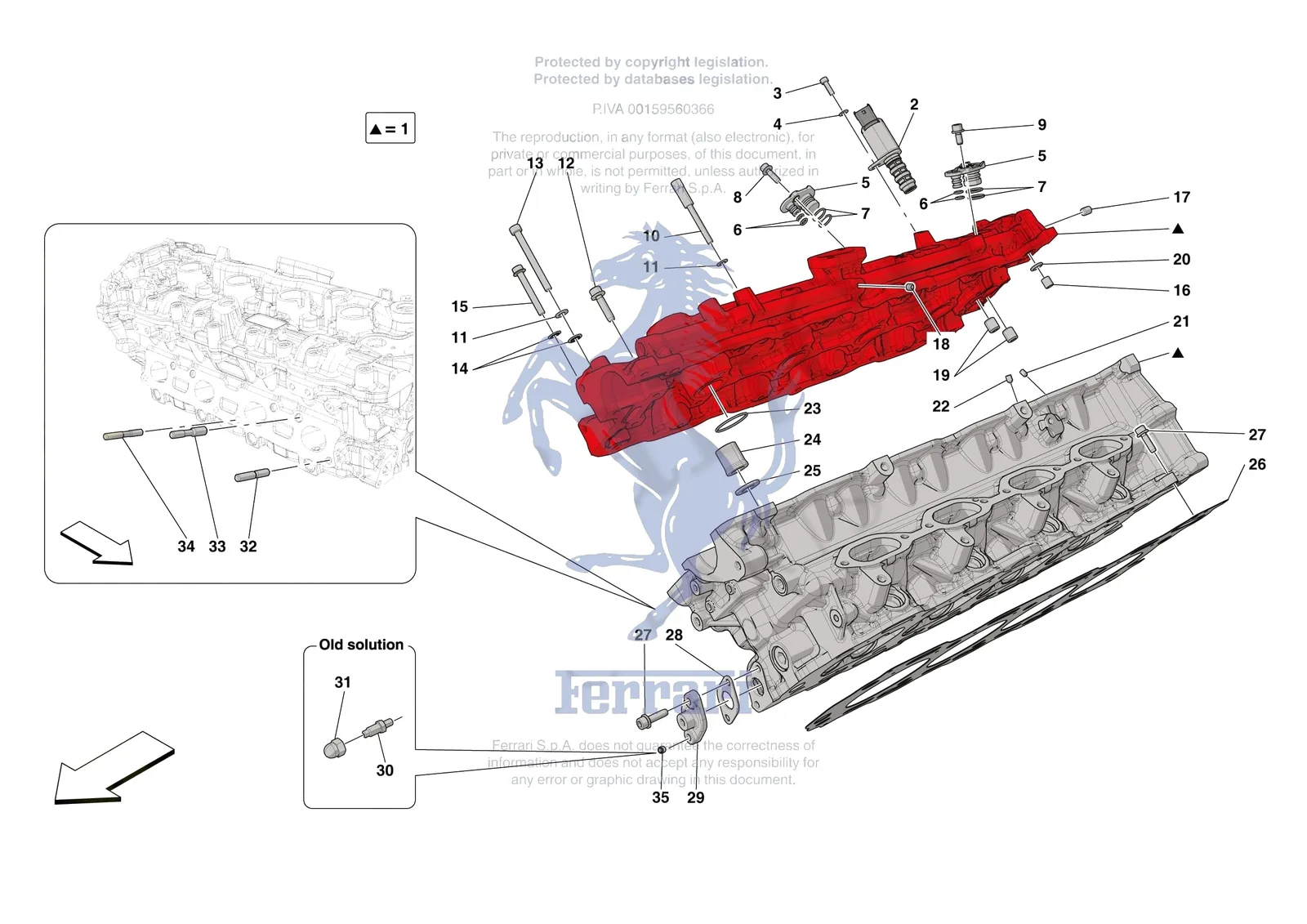

Exploded view of the [engine] - b.08.01 - cylinder heads - rh head on the Ferrari Roma Spider, with 44 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma Spider [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma-spider/0011.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 287233 | Ferrari Cap - 287233 | Superseded | Order 806089 instead | |
| 255442 | Ferrari Oil Pressure Regulator Valve - 255442 | Superseded | Order 801187 instead | |
| 269227 | Ferrari Oil Pressure Regulator Valve - 269227 | Superseded | Order 801187 instead | |
| 296017 | Ferrari Oil Pressure Regulator Valve - 296017 | Superseded | Order 801187 instead | |
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 11197779 | Ferrari Washer - 11197779 | Superseded | Order 11197774 instead | |
| 1 | 951372 | Ferrari RH Cylinder/RH Head Cover As - 951372 | $5,566.91 | Special order, ships in 7-14 days |
| 2 | 801187 | Ferrari Oil Pressure Regulator Valve - 801187 | $368.79 | Available, ships in 3-6 days |
| 3 | 14304224 | Ferrari Screw M5 x 16 - 14304224 | $0.27 | Available, ships in 3-6 days |
| 4 | 11181574 | Ferrari Washer - 11181574 | $0.06 | Available, ships in 3-6 days |
| 5 | 806089 | Ferrari Plug - 806089 | $15.06 | Special order, ships in 7-14 days |
| 6 | 14452781 | Ferrari Gasket - 14452781 | $0.38 | Available, ships in 3-6 days |
| 7 | 14453281 | Ferrari O-Ring Gasket - 14453281 | $2.61 | Available, ships in 3-6 days |
| 8 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 9 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 10 | 337373 | Ferrari Stud Bolt - 337373 | $34.44 | Special order, ships in 7-14 days |
| 11 | 11197774 | Ferrari Conic Washer 6.4x12x1.2 - 11197774 | $0.12 | Available, ships in 3-6 days |
| 12 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 13 | 14303821 | Ferrari Screw M6 x 60 - 14303821 | $0.92 | Available, ships in 3-6 days |
| 14 | 296075 | Ferrari Washer - 296075 | $2.38 | Available, ships in 3-6 days |
| 15 | 296759 | Ferrari Screw M6 x 1 x 45 - 296759 | $1.36 | Available, ships in 3-6 days |
| 16 | 818173 | Ferrari Alignment Dowel - 818173 | $1.88 | Special order, ships in 7-14 days |
| 17 | 277903 | Ferrari Cap - 277903 | $1.23 | Available, ships in 3-6 days |
| 18 | 199760 | Ferrari Threaded Plug D 6x1 - 199760 | $0.57 | Available, ships in 3-6 days |
| 19 | 342272 | Ferrari Non Return Valve - 342272 | $20.37 | Special order, ships in 7-14 days |
| 20 | 127816 | Ferrari Sealing Ring - 127816 | $6.00 | In stock |
| 21 | 226414 | Ferrari Grub Screw - 226414 | $13.74 | Available, ships in 3-6 days |
| 22 | 256827 | Ferrari Dowel - 256827 | $10.91 | Available, ships in 3-6 days |
| 23 | 166657 | Ferrari O-Ring D.29.87 - 166657 | $0.98 | Available, ships in 3-6 days |
| 24 | 271125 | Ferrari Cylinder Head Nut - 271125 | $14.39 | Available, ships in 3-6 days |
| 25 | 271129 | Ferrari Washer - 271129 | $2.38 | Available, ships in 3-6 days |
| 26 | 319511 | Ferrari RH Head-Crankcase Gasket - 319511 | $236.34 | Special order, ships in 7-14 days |
| 27 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 28 | 186781 | Ferrari/Maserati Secondary Air Gasket - 186781 | $6.05 | In stock |
| 29 | 771163 | Ferrari Tappo Chiusura Aria Secondar - 771163 | $51.67 | Special order, ships in 7-14 days |
| 30 | 210868 | Ferrari Threaded Union M6-M8 - 210868 | $29.52 | Special order, ships in 7-14 days |
| 31 | 150595 | Ferrari/Maserati Brass Domed Nut - 150595 | $1.86 | In stock |
| 32 | 308198 | Ferrari Stud Bolt - 308198 | $6.32 | Special order, ships in 7-14 days |
| 33 | 306320 | Ferrari Exhaust Manifold Stud - 306320 | $3.85 | In stock |
| 34 | 307168 | Ferrari Exhaust Manifold Stud - 307168 | $3.85 | In stock |
