Ferrari Roma Spider — [GEARBOX] - C.03.01 - GEARBOX OIL HEAT EXCHANGER AND PIPES - FRONT-UNDERBODY PIPES (diagram 0043)

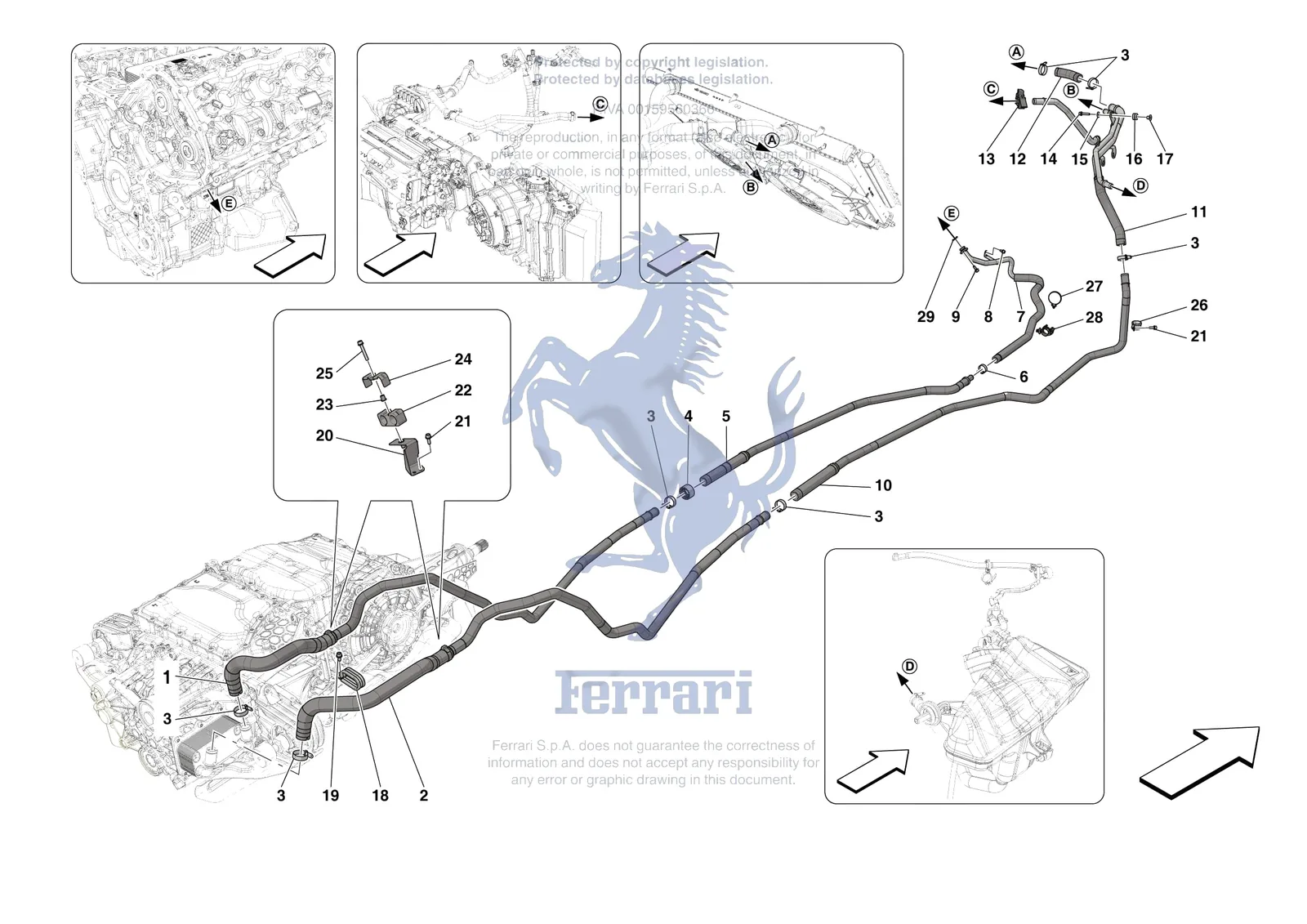

Exploded view of the [gearbox] - c.03.01 - gearbox oil heat exchanger and pipes - front-underbody pipes on the Ferrari Roma Spider, with 45 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari Roma Spider [GEARBOX] - C.03.01 - GEARBOX OIL HEAT EXCHANGER AND PIPES - FRONT-UNDERBODY PIPES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
262112Ferrari Collar - 262112SupersededOrder 262111 instead
341900Ferrari Compl. Engine Compartment Wa - 341900SupersededOrder 770027 instead
342783Ferrari Compl. Engine Compartment Wa - 342783SupersededOrder 786761 instead
770028Ferrari Compl. Engine Compartment Wa - 770028SupersededOrder 770027 instead
786760Ferrari Compl. Engine Compartment Wa - 786760SupersededOrder 786761 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
216568Ferrari Screw 6x30 - 216568SupersededOrder 231621 instead
10860270Ferrari Screw Collar - 10860270$1.94Available, ships in 3-6 days
10860370Ferrari Screw Collar - 10860370$3.26Special order, ships in 7-14 days
13127770Ferrari Screw Collar - 13127770$2.82Special order, ships in 7-14 days
268210Ferrari Screw Collar - 268210$6.32Special order, ships in 7-14 days
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
1917862Ferrari Tubo Mandata H2O Su Cambio - 917862$517.04Special order, ships in 7-14 days
2917864Ferrari Tubo Ritorno H2O Su Cambio - 917864$492.43Special order, ships in 7-14 days
3262111Ferrari Screw Collar - 262111$3.03Special order, ships in 7-14 days
4790973Ferrari Cable Guides - 790973$17.23Special order, ships in 7-14 days
5771723Ferrari Engine Side Underbody Water - 771723$467.80Special order, ships in 7-14 days
6262109Ferrari Screw Collar - 262109$2.01Available, ships in 3-6 days
7770027Ferrari Compl. Engine Compartment Wa - 770027$664.78Special order, ships in 7-14 days
8233600Ferrari/Maserati Screw - 233600$1.98In stock
9248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
10771721Ferrari Engine Side Underbody Water - 771721$393.93Special order, ships in 7-14 days
11786761Ferrari Compl. Engine Compartment Wa - 786761$689.41Special order, ships in 7-14 days
12337584Ferrari Tubo Fless. Ritorno H2O Usci - 337584$93.53Special order, ships in 7-14 days
1381649300Ferrari Clip - 81649300$13.55Special order, ships in 7-14 days
14231621Ferrari Allen Screw M6 x 30 TCEI - 231621$0.73Available, ships in 3-6 days
1512643724Ferrari/Maserati Washer - 12643724$0.20In stock
16103549Ferrari Grommet - 103549$2.80In stock
17149707Ferrari Spacer - 149707$2.13Available, ships in 3-6 days
1861712600Ferrari P Clip Bracket With Sheath D28 - 61712600$3.26Available, ships in 3-6 days
19231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
20780830Ferrari Supporto Gogna Per Tubi H20 - 780830$78.66Special order, ships in 7-14 days
21231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
22329367Ferrari Gogna Gomma X Tubi 2 - 329367$13.24Special order, ships in 7-14 days
23329368Ferrari Retainer Block Bush Diam.23 - 329368$1.49Available, ships in 3-6 days
24329366Ferrari Retainer Block Plate - 329366$13.74Available, ships in 3-6 days
25231623Ferrari Screw M6 x 40 TCEI - 231623$1.02Available, ships in 3-6 days
2610441990Ferrari P Clip Bracket With Sheath - 10441990$1.42Available, ships in 3-6 days
27217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
28790253Ferrari Clip - 790253$4.35Special order, ships in 7-14 days
29264447Ferrari Toroid Ring - 264447$0.59Special order, ships in 7-14 days
