Ferrari Roma — [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES (diagram 0028)

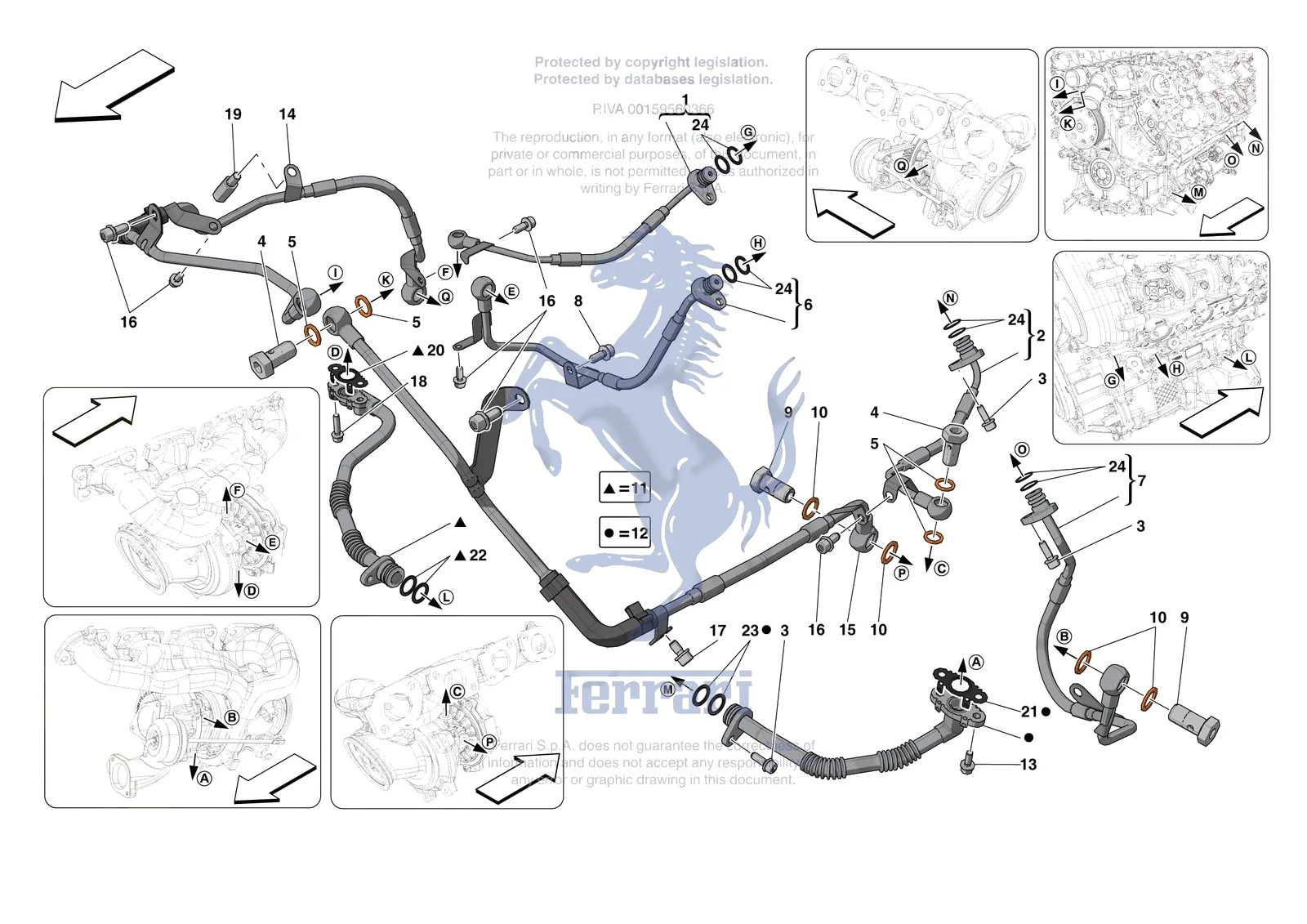

Exploded view of the [engine] - b.23 - forced induction system pipes on the Ferrari Roma, with 39 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0028.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 103403 | Ferrari Gasket - 103403 | Superseded | Order 10280060 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 100501 | Ferrari Washer - 100501 | Superseded | Order 10280060 instead | |
| 100511 | Ferrari Washer - 100511 | Superseded | Order 10280060 instead | |
| 95108 | Ferrari Washer - 95108 | Superseded | Order 10280060 instead | |
| 1 | 787611 | Ferrari Oil Delivery Pipe To RH Turb - 787611 | $566.30 | Special order, ships in 7-14 days |
| 1 | 297862 | Ferrari Oil Delivery Pipe To RH Turbo - 297862 | $492.43 | Special order, ships in 7-14 days |
| 2 | 787612 | Ferrari Oil Delivery Pipe To LH Turb - 787612 | $566.30 | Special order, ships in 7-14 days |
| 2 | 306837 | Ferrari Oil Delivery Pipe To LH Turbo - 306837 | $492.43 | Special order, ships in 7-14 days |
| 3 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 4 | 297185 | Ferrari Connector Pipe For Union M12 x 1.5 - 297185 | $14.85 | Available, ships in 3-6 days |
| 5 | 10261060 | Ferrari/Maserati Copper Crush Washer - 10261060 | $0.26 | In stock |
| 6 | 787609 | Ferrari Water Delivery Pipe To RH Tu - 787609 | $393.93 | Special order, ships in 7-14 days |
| 6 | 307668 | Ferrari Water Delivery Pipe To RH Turbo - 307668 | $344.69 | Special order, ships in 7-14 days |
| 7 | 787610 | Ferrari Water Delivery Pipe To LH Tu - 787610 | $393.93 | Special order, ships in 7-14 days |
| 7 | 307669 | Ferrari Water Delivery Pipe To LH Turbo - 307669 | $344.69 | Special order, ships in 7-14 days |
| 8 | 248471 | Ferrari Screw 8x20 - 248471 | $2.07 | Available, ships in 3-6 days |
| 9 | 297184 | Ferrari Connector Pipe For Union M14 x 1.5 - 297184 | $18.13 | Available, ships in 3-6 days |
| 10 | 10280060 | Ferrari/Maserati Copper Washer - 10280060 | $1.93 | In stock |
| 11 | 297864 | Ferrari Oil Return Pipe From LH Turbo - 297864 | $344.69 | Special order, ships in 7-14 days |
| 11 | 55020714 | Ferrari Oil Return Pipe From RH Turb - 55020714 | Price on request | Contact us for price and availability |
| 11 | 787613 | Ferrari Oil Return Pipe From RH Turb - 787613 | $344.69 | Special order, ships in 7-14 days |
| 12 | 55020715 | Ferrari Oil Return Pipe From LH Turb - 55020715 | Price on request | Contact us for price and availability |
| 12 | 787614 | Ferrari Oil Return Pipe From LH Turb - 787614 | Superseded | Order 55020715 instead |
| 12 | 306347 | Ferrari Oil Return Pipe From LH Turbo - 306347 | $295.43 | Special order, ships in 7-14 days |
| 13 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 14 | 303509 | Ferrari Water Return Pipe From RH Turbo - 303509 | $467.80 | Special order, ships in 7-14 days |
| 15 | 297747 | Ferrari Water Return Pipe From LH Turbo - 297747 | $418.56 | Special order, ships in 7-14 days |
| 16 | 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days |
| 16 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 17 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 18 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 19 | 336488 | Ferrari Stud Bolt - 336488 | $19.91 | Special order, ships in 7-14 days |
| 20 | 295801 | Ferrari Gasket - 295801 | $44.29 | Special order, ships in 7-14 days |
| 20 | 298091 | Ferrari Guarnizione X Tubo Recupero - 298091 | $10.48 | Special order, ships in 7-14 days |
| 21 | 271457 | Ferrari Gasket - 271457 | $44.29 | Special order, ships in 7-14 days |
| 22 | 287722 | Ferrari O-Ring 15.08 x 2.62 - 287722 | $9.81 | Available, ships in 3-6 days |
| 24 | 14456981 | Ferrari 360/430 Gearbox Cover O-Ring - 14456981 | $1.81 | In stock |
