Ferrari Roma — [ENGINE] - B.29 - AC COMPRESSOR (diagram 0034)

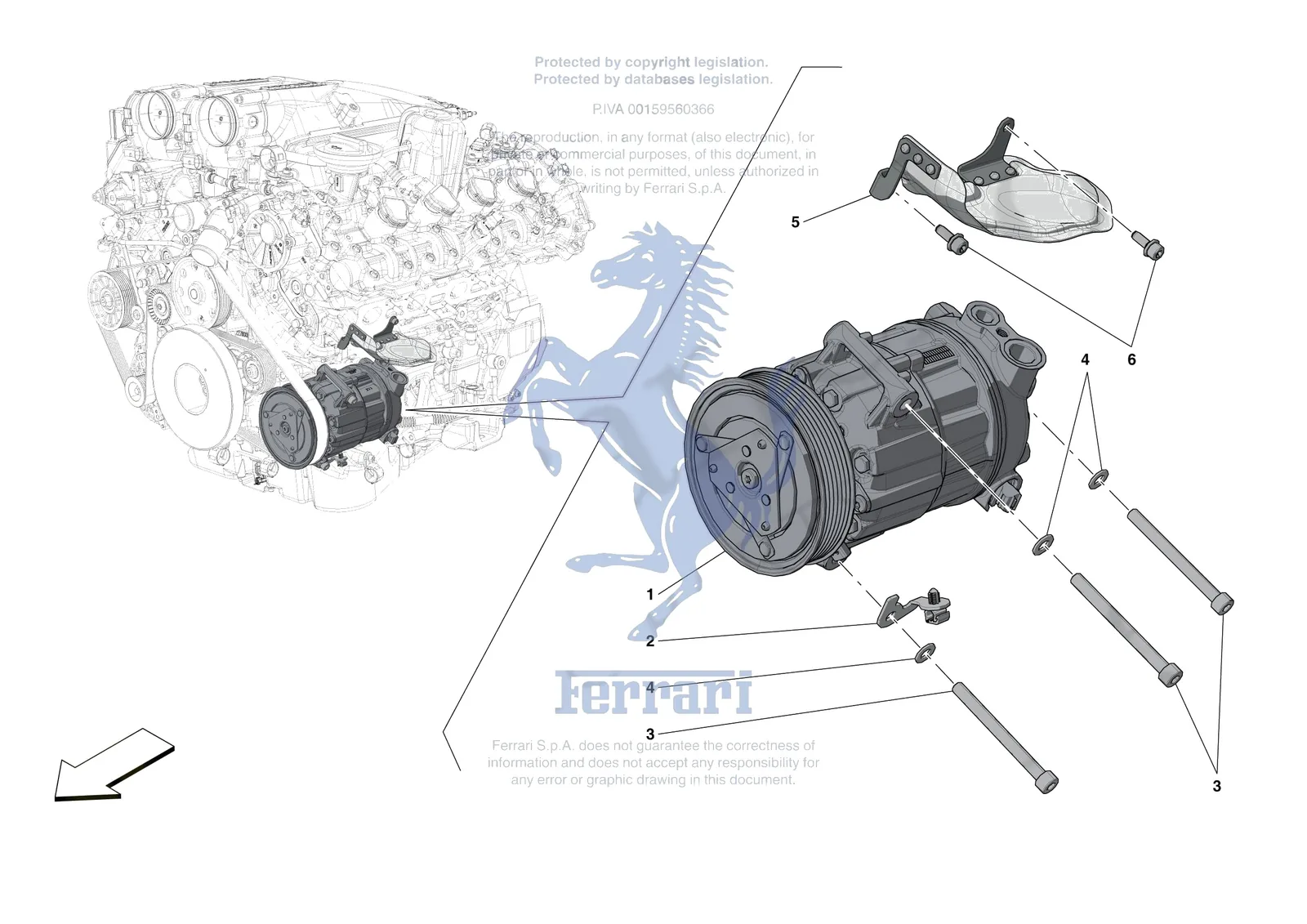

Exploded view of the [engine] - b.29 - ac compressor on the Ferrari Roma, with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Roma [ENGINE] - B.29 - AC COMPRESSOR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/roma/0034.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 311534 | Ferrari Air Conditioning Compressor - 311534 | Superseded | Order 802715 instead | |
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 1 | 333331 | Ferrari Compressore Delphi Controll - 333331 | Superseded | Order 802715 instead |
| 1 | 802715 | Ferrari Compressore Delphi Controll - 802715 | $1,750.91 | Special order, ships in 7-14 days |
| 2 | 299159 | Ferrari Bracket With Clip Complete - 299159 | $31.99 | Special order, ships in 7-14 days |
| 3 | 14307224 | Ferrari Screw M8 x 85 - 14307224 | $1.17 | Available, ships in 3-6 days |
| 4 | 11193874 | Ferrari Washer D.8.4-16x1.4 - 11193874 | $0.12 | Available, ships in 3-6 days |
| 5 | 298606 | Ferrari Compressor Heat Shield - 298606 | $164.95 | Special order, ships in 7-14 days |
| 6 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
